German Technology Clay Brick Making Machine with Latest Technology
Xi'an Brictec Engineering Co., Ltd.- Certification:CE, ISO, ISO9001: 2000
- Customized:Customized
- Automatic Grade:Automatic
- Type:Brick Making Machinery
- Product:Brick
- Automation:Automatic
Base Info
- Model NO.:JKY
- Tolerance:0.5mm
- Condition:New
- Processing:Brick Molding Machine
- Method:Vacuum Extruder
- Brick Raw Material:Clay
- Color:Green
- Agent:Nepal, India, Bangladesh, Egypt, Venezuela
- Transport Package:Container
- Specification:6210*1560*2350mm
- Trademark:BRICTEC
- Origin:China
- HS Code:8474
- Production Capacity:10000~13000PCS,H
Description
Basic Info.
Model NO. JKY Tolerance 0.5mm Condition New Processing Brick Molding Machine Method Vacuum Extruder Brick Raw Material Clay Color Green Agent Nepal, India, Bangladesh, Egypt, Venezuela Transport Package Container Specification 6210*1560*2350mm Trademark BRICTEC Origin China HS Code 8474 Production Capacity 10000~13000PCS/HProduct Description

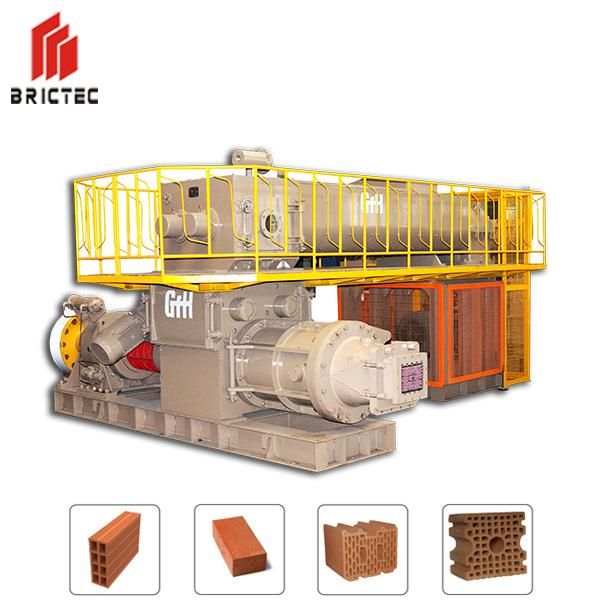

German Technology Clay Brick Making MachineProduct introduction:
The raw materials are various from diffrent country. Due to the diffrent raw materials features, we have to provide different solutions for brick making. In Bangladesh, the main raw material is clay which is soft materials. According to this kind of material, we produce this type of semi-automatic extruder. It is permitted to be produced with German KWS technology according to German standards and is authorized to use German trademark of GFK. Its mixing reducer is equipped with hardened gears which are all grinded, and the extrusion reducer makes use of planet gears with high drive efficiency, therefore, it is the advanced vacuum extrusion equipment in the world.
Technical Parameters of Vacuum Extruder for brick production:
Specification | VP45A | VP45B | VP50A | VP50B |
Output (standard pcs/h) | 10000-14000 | 10000-14000 | 12000-16000 | 12000-16000 |
Diameter of Extrusion Reamer(mm) | 450 | 450 | 500 | 500 |
Rotary Speed of Extrusion Reamer(r/min) | 24(Customizable) | 24(Customizable) | 28(Customizable) | 28(Customizable) |
Distribution Power (kW) | 110+55+7.5X2 | 110+55+7.5X2 | 132+55+7.5X2 | 132+55+7.5X2 |
Allowable Extrusion Pressure(MPa) | 4 | 3 | 4 | 3 |
Vacuum(MPa) | -0.096 | -0.096 | -0.096 | -0.096 |
Model of Upper Reducer | Z335 | ZQ65 | Z335 | ZQ65 |
Model of Lower Reducer | N560 | ZQ100 | N560 | ZQ100 |
Model of Vacuum Pump | SK-6 | SK-6 | SK-6 | SK-6 |
Company & Service Introduction
1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation3. Incoming power supply fluctuation
4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.

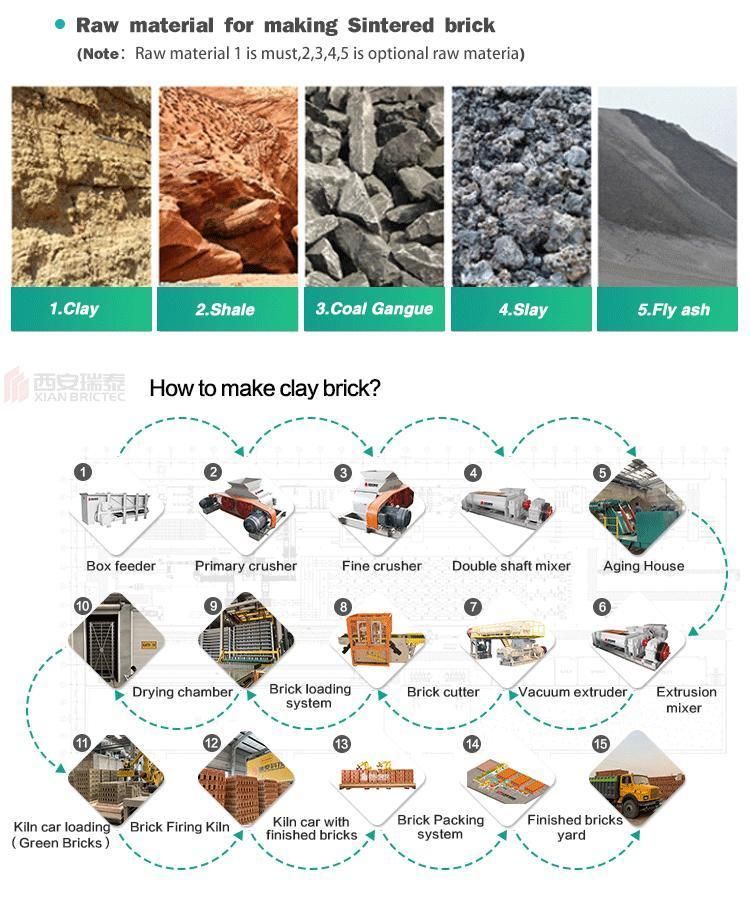

Brick making progress introduction
