• Model NO.：3.9m width
• Method：Vacuum Extruder
• Processing：Brick Production Line
• Product：Brick
• Brick Raw Material：Clay
• Automation：Automatic
• Tolerance：0.5mm
• Condition：New
• Transport Package：Container
• Specification：3.6x120
• Trademark：BRICTEC
• Origin：China
• HS Code：8474
• Production Capacity：30 Million Per Year

Basic Info.

Model NO. 3.9m width Method Vacuum Extruder Processing Brick Production Line Product Brick Brick Raw Material Clay Automation Automatic Tolerance 0.5mm Condition New Transport Package Container Specification 3.6x120 Trademark BRICTEC Origin China HS Code 8474 Production Capacity 30 Million Per Year

Product Description

Clay brick tunnel kiln features:
1, high yield, good quality and lower cost, comprehensive energy consumption reduced 30% or more.
2, investment saving, covering less area, the lead time is short.
3, kiln working stability, heat preservation is good, which generally workers can flexible operation.
4, tunnel kiln duct system can come ture the exchange form is the negative pressure mounts the burn and row tide,
Such as: Porous brick, hollow bricks, and solid bricks.

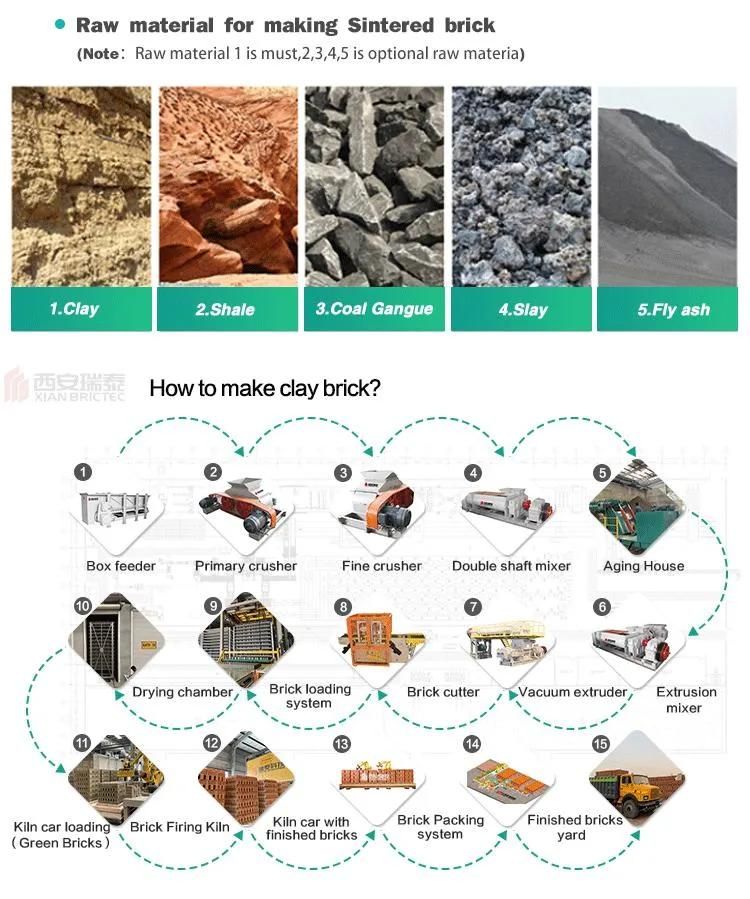

Raw material: Shale, coal gangue, slag and fly ash.
Technology Parameter of clay brick tunnel kiln
First, one time palletizing and burning tunnel kiln are suitable for the soild bricks, hollow bricks and perforated bricks which are made by clay, shale and coal gangue.
Second, main feature: High mechanizatin degree, good conditions for labor, low work hard, need seldom workers, easy to get the planned bricks, same color for the products, the bricks won't be damage, low coal consumption and low cost.
Third, it use the modern tunnel kiln technical, make the air in kiln distribution more reasonable, not only reduce the coal consumption but also increase the producton. Also make the product same colour and size.
Fourth, use advanced technical to vault.
Fifth, it require the tunnel kiln have high producting and running technical, high accuracy to building the kiln, high requirements to making the kiln car.



Tunnel kiln	capacity	Equipment of kiln	Production days in a year
2.5meters width)	15~20 million pcs annual	kiln cart, hydraulic ferry pusher, blwer, loading machine, etc	330 days
3.3meters width)	20~25 million pcs annual	kiln cart, hydraulic ferry pusher, blwer, loading machine, etc	330 days
3.4 meters width	20~28 million pcs annual	kiln cart, hydraulic ferry pusher, blwer, loading machine, etc
4 meters width	25~30 million pcs annual	kiln cart, hydraulic ferry pusher, blwer, loading machine, etc	330 days
4.6 meters width	25~38 million pcs annual	kiln cart, hydraulic ferry pusher, blwer, loading machine, etc	330 days
6.9 meters width	35~40 million pcs annual	kiln cart, hydraulic ferry pusher, blwer, loading machine, etc	330 days
