• Model NO.：NX80-300
• Product Name：Stud and Truss Profile Roll Forming Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV;
• Forming Speed：About 8-25m,Min
• Main Motor Power：5.5kw
• Hydraulic Station Power：2.2kw
• Number of Work Stations：12stations
• Max. Roll Shaft of Diameter：76mm
• Overall L X W X H：3.8m*1.2m*1.6m
• Transport Package：1.Control Box and Easy Damaged Parts:Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

No.

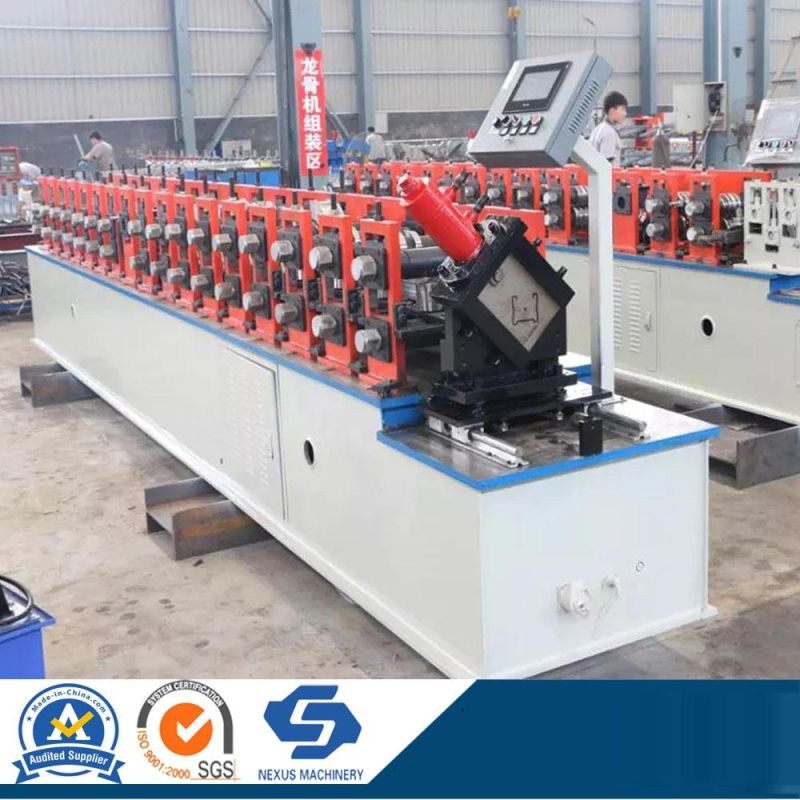

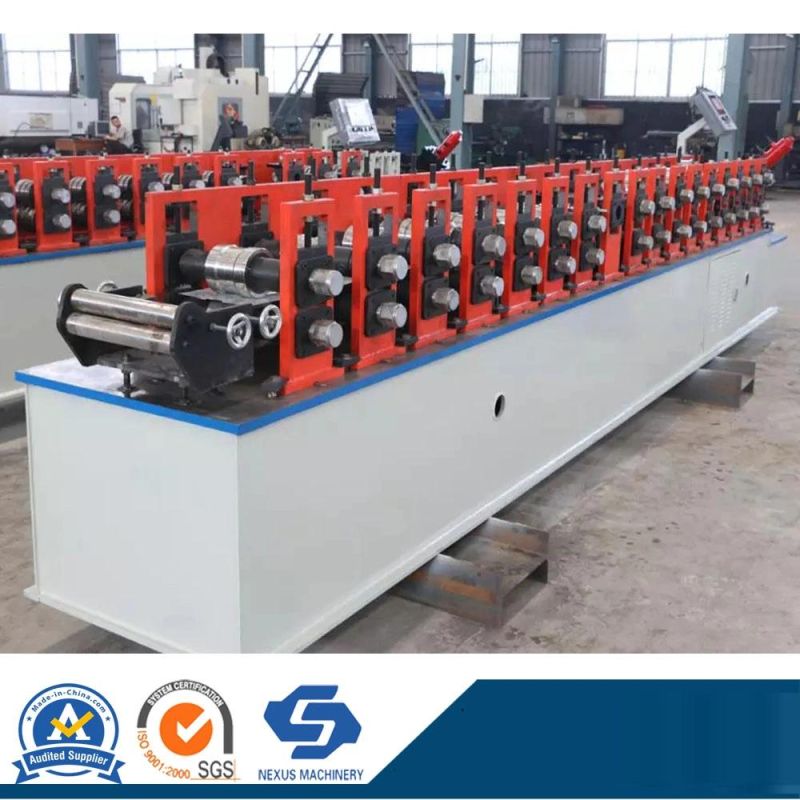

Stud and truss profile roll forming machine

1

Suitable material

PPGI/Aluminium sheet/galvanized sheet/various sheet plates

2

Thickness of coil sheet

0.3-0.8mm

3

Coil width

as customer's profile drawing requirement

4

Effective width

as customer's profile drawing requirement

5

Material of main frame

welded by 6mm steel plate

6

Diameter of Soild shaft

40mm, high grade 45# steel

7

Roller

Cr12

8

Thickness of middle plate

Memorial archway

9

Forming station

12 rows

10

Drive type

11

Power of main motor

5.5 kw, Lichao, Shanghai, with reducer

12

Servo motor

1.5KW

13

Forming speed

About 25-30m/min

14

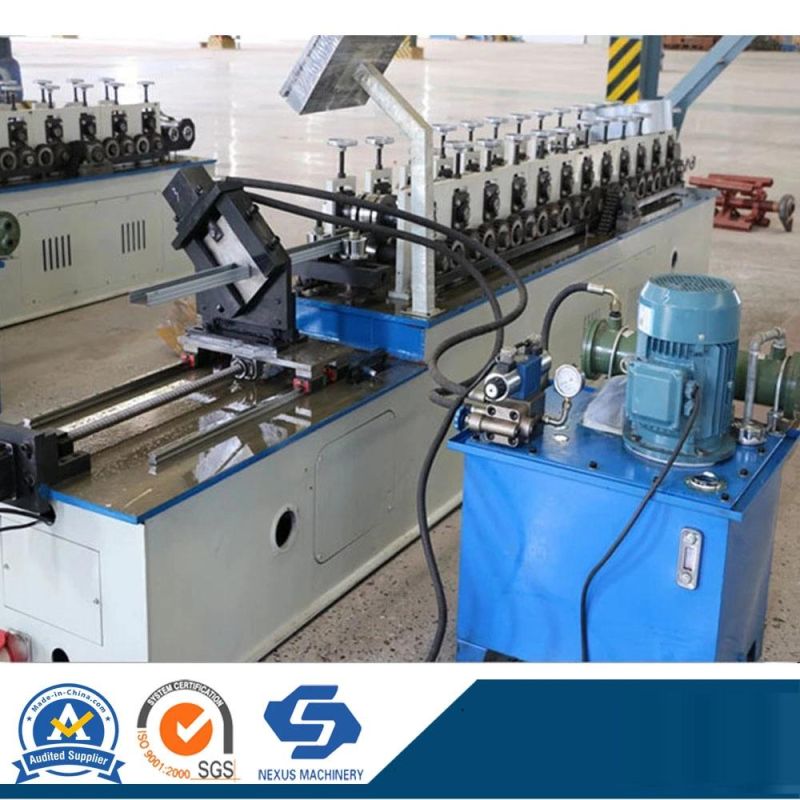

Hydraulic pump station

5.5 kw, 40# hydraulic oil

15

PLC

DELTA(TAIWAN)/Mitsubishi

16

Material of cutting blades

Cr 12, quenching 58-62ºC

17

Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy ±1mm, far better than industrial standard ±3mm.

18

Switch

CHNT

19

Frequency changer

Delta,Taiwan
