• OEM：Available
• Color：Optional
• Certificate：CE&ISO
• Dimension：3.3 X 1.7 X 1.5 M, 2.1 X 1.0 X 1.0 M
• Model No.：Byl-1600
• Voltage：380V, 220V, 415V or Customized
• Power：12kw
• Weight：2300kg
• Name：Spiral Duct Forming Machine
• Control System：PLC
• Diameter：100-1500mm
• Working Speed：0-27m,Min
• Mold Material：Steel
• Lockformer：out Lock
• Cutting Method：Roll Cutter
• Transport Package：Standard Seaworthy Package
• Specification：3.3 x 1.7 x 1.5 m
• Trademark：BYFOCNC
• Origin：China
• HS Code：845522909
• Production Capacity：100 Sets,Month

Basic Info.

OEM Available Color Optional Certificate CE&ISO Dimension 3.3 X 1.7 X 1.5 M, 2.1 X 1.0 X 1.0 M Model No. Byl-1600 Voltage 380V, 220V, 415V or Customized Power 12kw Weight 2300kg Name Spiral Duct Forming Machine Control System PLC Diameter 100-1500mm Working Speed 0-27m/Min Mold Material Steel Lockformer out Lock Cutting Method Roll Cutter Transport Package Standard Seaworthy Package Specification 3.3 x 1.7 x 1.5 m Trademark BYFOCNC Origin China HS Code 845522909 Production Capacity 100 Sets/Month

Product Description

 Byfo Tubeformer Factory Direct Good Quality Spiral duct forming machine
B1600 spiral machine is the most advanced air control equipment, easy to install and move, flexible regulation, field construction.
Main Technical Data:

Diameter range	Φ80-Φ1500mm
Thickness of Strip	Galvanized steel:0.5-1.2mm  Stainless steel:0.4-0.8mm
Width of Strip	137mm
Strip Speed	1-27m/min
Dimension (L x W x H):	3300*1700*1500mm(main part),2100*1000*1000mm(standard support)
Lock seam	Outside tube, on the inside on request
Weight	2300kg
Control System	PLC automatic control
Compressed air power	0.5-0.7kmp
Electrical	380V/3PH/60HZ(According to customer's request)
Total Motor Power	12kw
Suitable Material	Aluminum, Stainless steel, Galvanized steel
Cutting system	Roller cutter

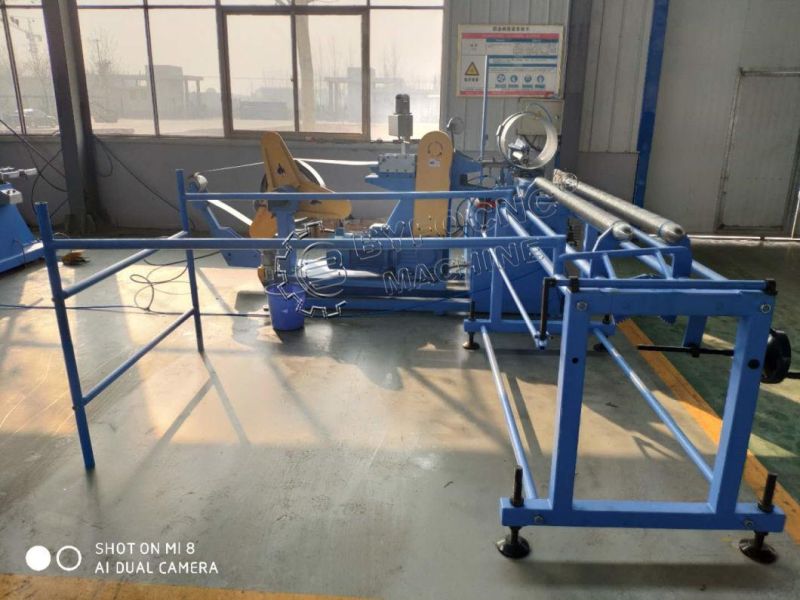

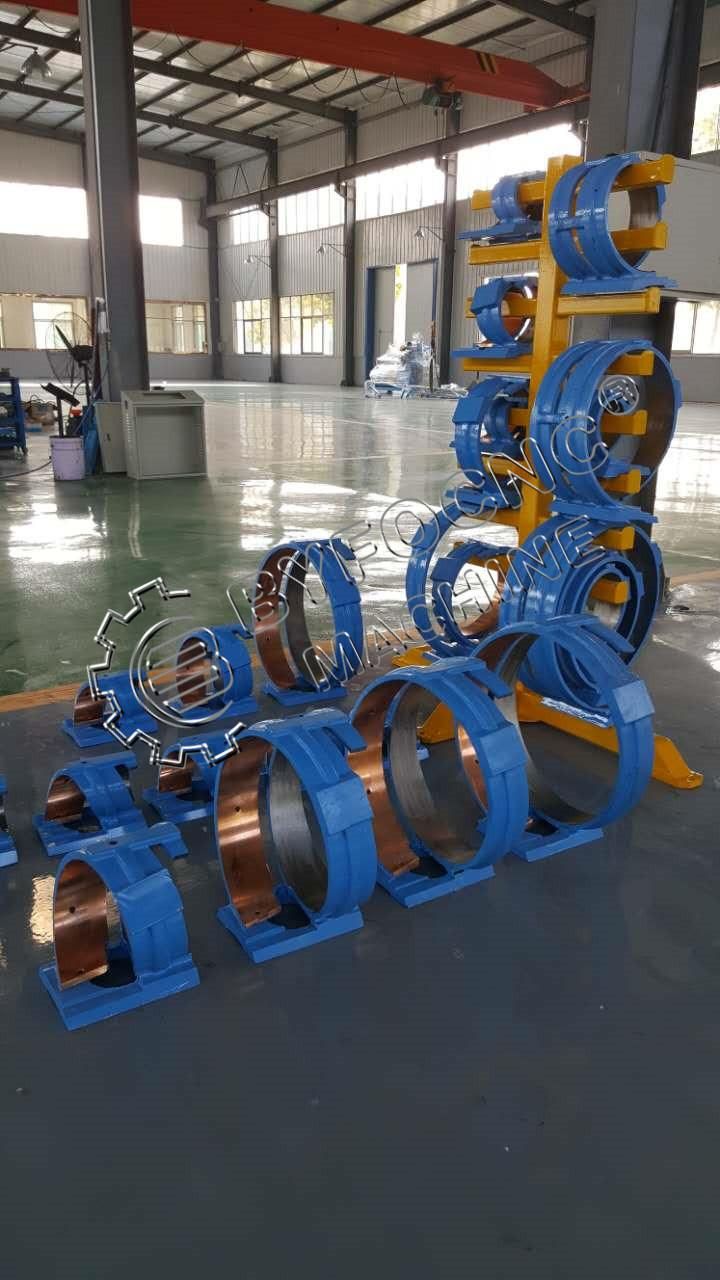

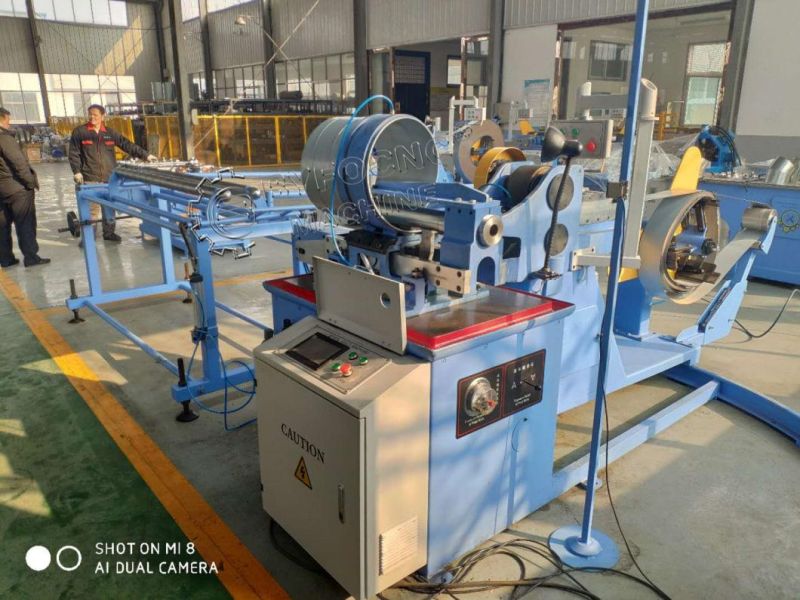

More detailed photos:
