• Model NO.：DX 828-207-28
• Customized：Customized
• Usage：Roof, Wall, Floor
• Transmission Method：Machinery
• Type：Rolling Machine
• Power Source：Electric
• Feature：Automation
• Advantage：Easy to Maintenance
• Warranty：12 Months
• Forging Forming Method：Mold Forging
• Mode：828-207-28 Tile
• Auto：Fully Automatic
• Feeding Material：Metal Coil
• Feeding Width：1000mm
• Transport Package：Waterproof Package
• Specification：CE SGS ISO
• Trademark：DIXIN
• Origin：China, Hebei
• HS Code：84552210
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. DX 828-207-28 Customized Customized Usage Roof, Wall, Floor Transmission Method Machinery Type Rolling Machine Power Source Electric Feature Automation Advantage Easy to Maintenance Warranty 12 Months Forging Forming Method Mold Forging Mode 828-207-28 Tile Auto Fully Automatic Feeding Material Metal Coil Feeding Width 1000mm Transport Package Waterproof Package Specification CE SGS ISO Trademark DIXIN Origin China, Hebei HS Code 84552210 Production Capacity 50 Sets Per Month

Product Description

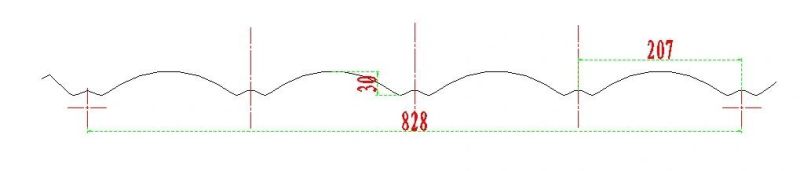

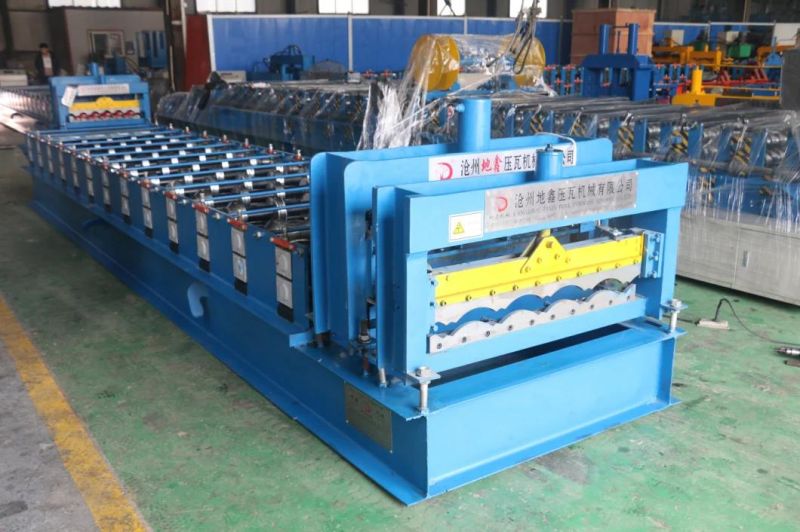

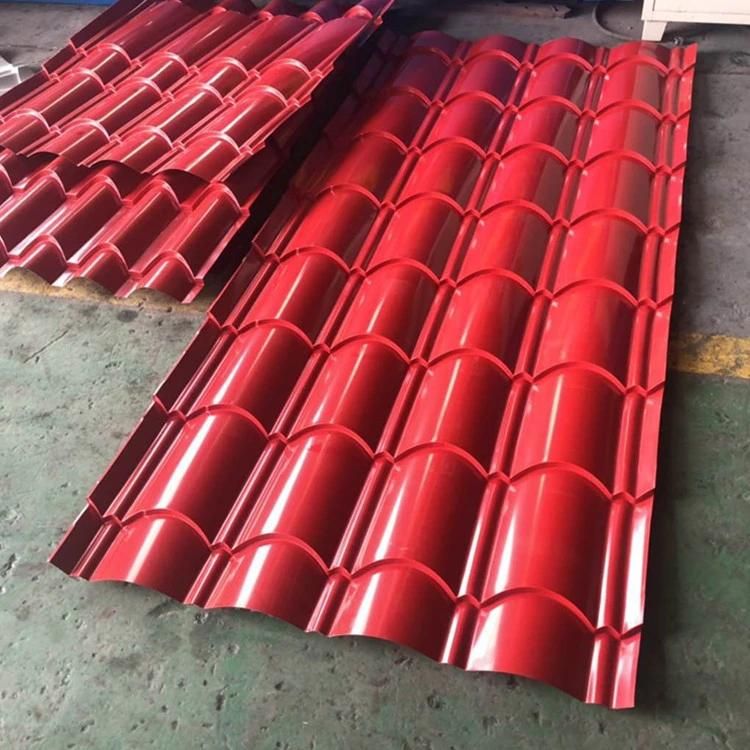

 828mm Steel Color Glazed Roof Tile Machine/Step Tile Roofing Sheet Roll Forming MachineDifferent roof panel forming machines can produce different shapes of steel roof wall sheets according to the client's profile drawings and requirements. The steel roof, wall sheets are new building materials with various thickness and colors. The finished products are used as the roof and walls of gymnasiums, airports, theaters, factories, warehouses, garages, exhibition centers etc.

1.Technique parameters can be according to customers request



1.Processing material	aluzinc/galvanized steel/colored steel coil
2.Material thickness	0.3-0.8mm
3.Feeding width:	1000mm
4.Effective width	828mm
5.Main motor power	4kw
6.hydraulic pump power	4kw
7. Shaft diameter	75mm
8.Forming steps	13steps
9.Main frame	300H Steel frame
10. Side plate thickness	16mm
11.Roller material	45# forged steel, with hard chrome plating
12.Control systerm	PLC control system with touch screen
13.Cutting blade material	Cr12
14.Working speed	About 10-12m/min
15. Transmission way	1 inch chain drive
16. Machine size (mm)	About 6800*1500*1400mm
17. Machine weight	About 2.5ton
18.Power supply	380v,3phase,50hz or accodring to customer request

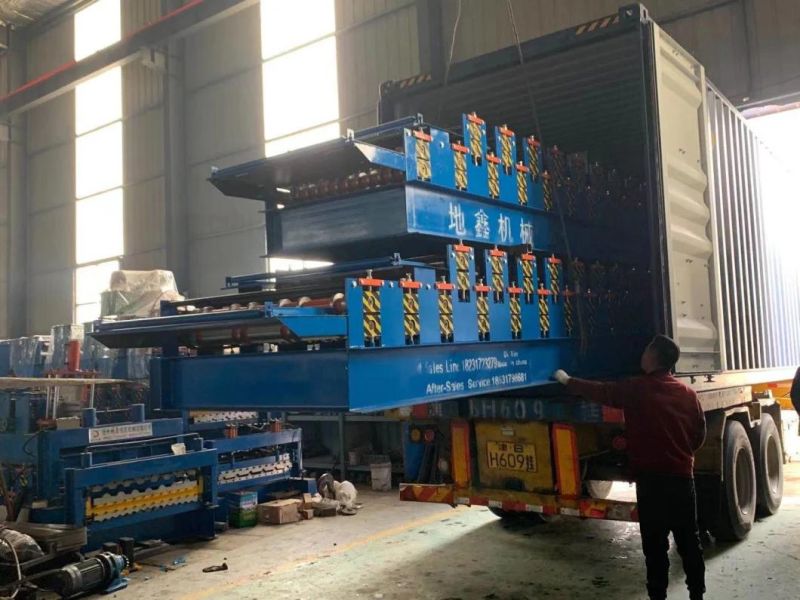

2.Loading in a 20 foot container
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.


Cangzhou Dixin Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.

Service after sell

In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
(1) If installation is needed, Dixin (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.
a) Position the machine in the buyer's factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
d) Provide labors for assistance and installation during installation.
e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.
