Hebei Good Quality Used Metal Roof Panel Roll Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Certification：CE, ISO, Roof Panel Roll Forming Machine
- Condition：New
Base Info
- Model NO.：840
- Customized：Customized
- Transmission Method：Hydraulic Pressure
- Product Name：Roof Panel Roll Forming Machine
- Machine Name：840 Roof Panel Roll Forming Machine
- Processing Material：Galvanized Steel,Colored Steel Coil
- Material Thickness：0.3-0.8mm
- Effective Width：840mm
- Feeding Width：1000mm
- Main Motor Power：4 Kw
- Pump Power：4kw
- Speed：10-12m,Min
- Shaft Diameter：75mm
- Transport Package：Nude, Covered with Plastic Frilm
- Specification：CE
- Trademark：DIXIN
- Origin：Botou, Hebei, China
- HS Code：84552210
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. 840 Customized Customized Transmission Method Hydraulic Pressure Product Name Roof Panel Roll Forming Machine Machine Name 840 Roof Panel Roll Forming Machine Processing Material Galvanized Steel/Colored Steel Coil Material Thickness 0.3-0.8mm Effective Width 840mm Feeding Width 1000mm Main Motor Power 4 Kw Pump Power 4kw Speed 10-12m/Min Shaft Diameter 75mm Transport Package Nude, Covered with Plastic Frilm Specification CE Trademark DIXIN Origin Botou, Hebei, China HS Code 84552210 Production Capacity 30 Sets/MonthProduct Description

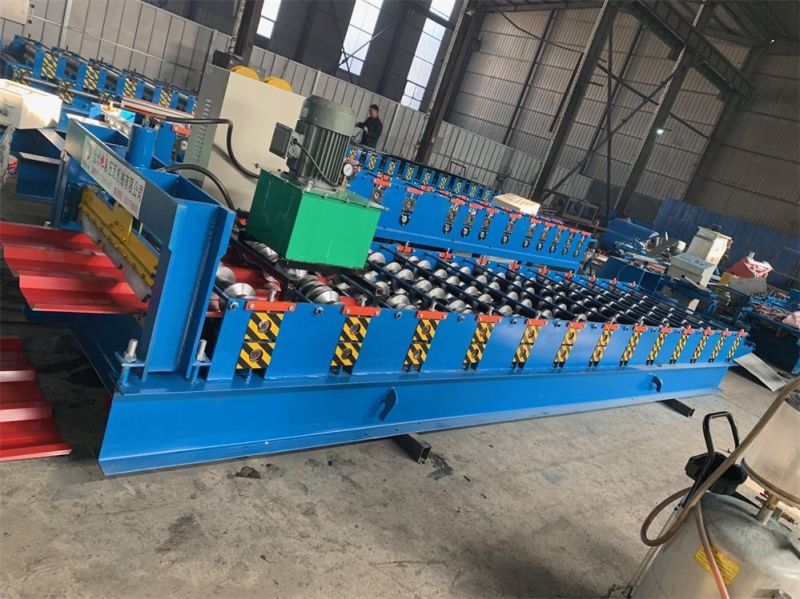

Hebei Good Quality Used Metal Roof Panel Roll Forming MachineRoll forming machien components:
Man-made decoiler---Main forming machine---Computer Control system---Hydraulic pump station---Cutting head---Output table
Material of rollers: high grade 45# steel, surfaces are polishing, hard plating.
Technique parameter:
| (1) | Processing material: | galvanized steel/colored steel coil |
| (2) | Material thickness: | 0.3-0.8mm |
| (3) | Effective width: | 840mm |
| (4) | Feeding width: | 1000mm |
| (5) | Main motor power: | 4 kw |
| (6) | Pump power: | 4kw |
| (7) | Speed: | 10-12m/min |
| (8) | Shaft diameter: | 75mm |
| (9) | Forming steps: | 13 steps |
| (10) | Roller material: | 45# forged steel, with hard chrome plating |
| (11) | Main frame: | 300H steel |
| (12) | Medium plate thickness: | 14mm |
| (13) | Control systerm: | PLC computer control with inverter |
| (14) | Power supply: | 380V, 3 Phase, 60Hz |
| (15) | 0veral sized: | 6000mm*1300mm*1000mm |
| (16) | Total weight: | about 2.6 tons |
Warranty: 12 month, and lifelong technical support
Payment term: TT, 30% as the deposit
If you are interested in the roll forming machine,please feel free to contact me:
