• Model NO.：988
• Thickness of Coil Sheet：0.3-0.8mm
• Hydraulic Station Power：3kw
• Transport Package：Container
• Specification：6000*1500*1600mm
• Trademark：kexinda
• Origin：Hebei
• HS Code：8455221000
• Production Capacity：3000sets

Material Spec

colored steel sheet; galvanized steel sheet

Thickness of coil sheet

0.3-0.8mm

Main Motor Power

3 kw

Forming Speed

10-12m/min

Hydraulic station power

3kw

Quantity of stand

about 9-13

Hydraulic pressure

10-12mpa

controlling system

PLC

Index error of length

10m+2mm

Appearance sizes

5.8x1.4x1.2 (L x W x H)

Total weight

about 3 tons

Voltage

380V 3phase 60 HZ or at buyer's requirement

Roller material

high grade NO.45 forged steel plated hard chrome on the surface of roller with thickness 0.05mm

Active shaft material

high grade NO.45 carbon wrought steel at Φ 72mm

Cutting blade

Cr12 mould steel with quenched treatment.

Processes: Manual decoiler-Roll forming machine-PLC system-Hydraulic system-Post cut-Stacking

Components of line:

NO

Name

Unit

Qty

1

Manual decoiler

set

1

2

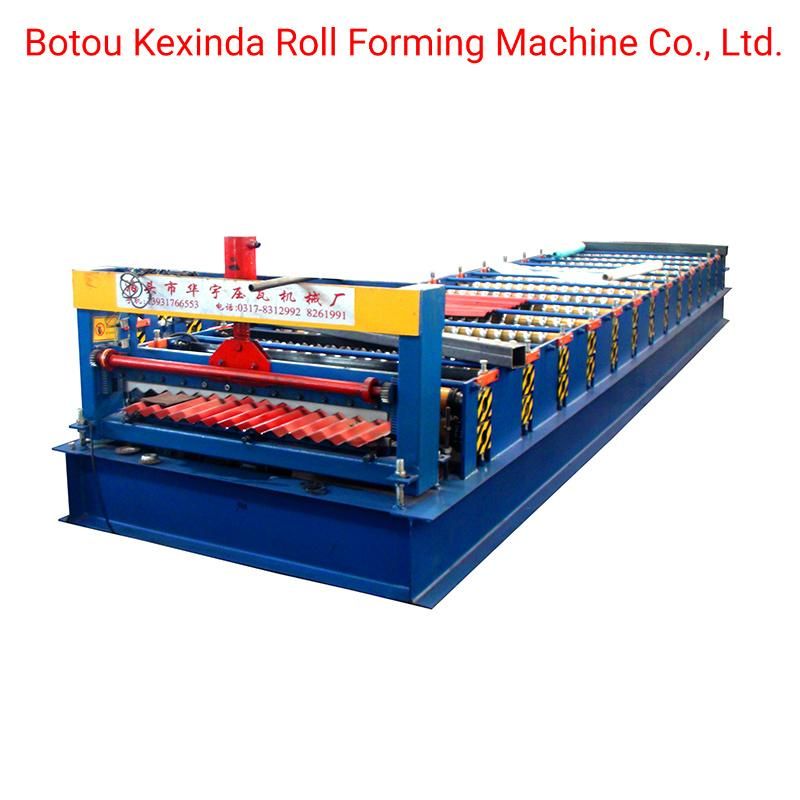

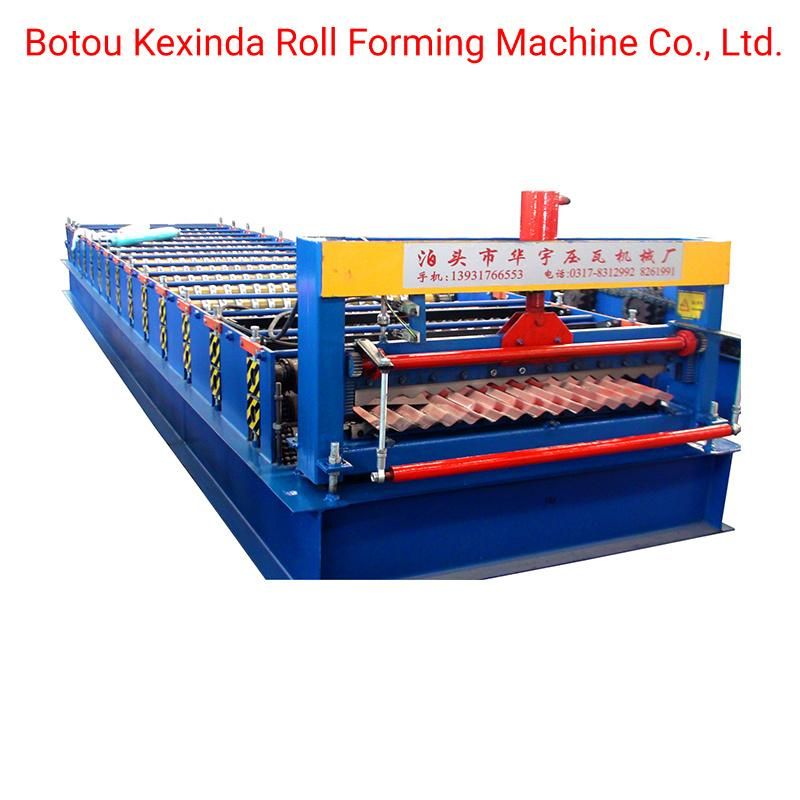

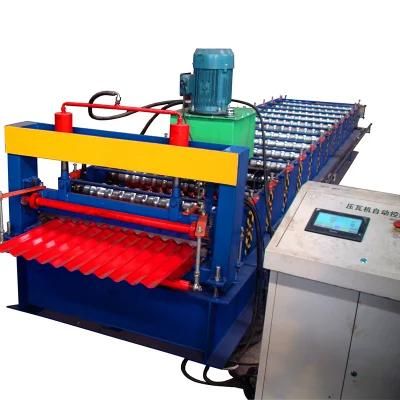

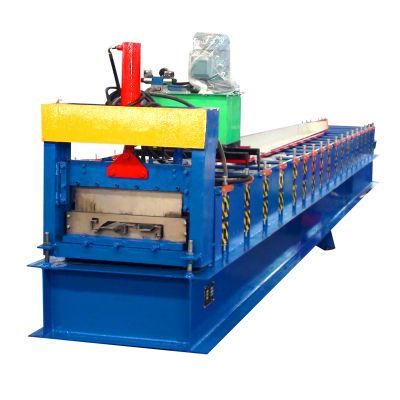

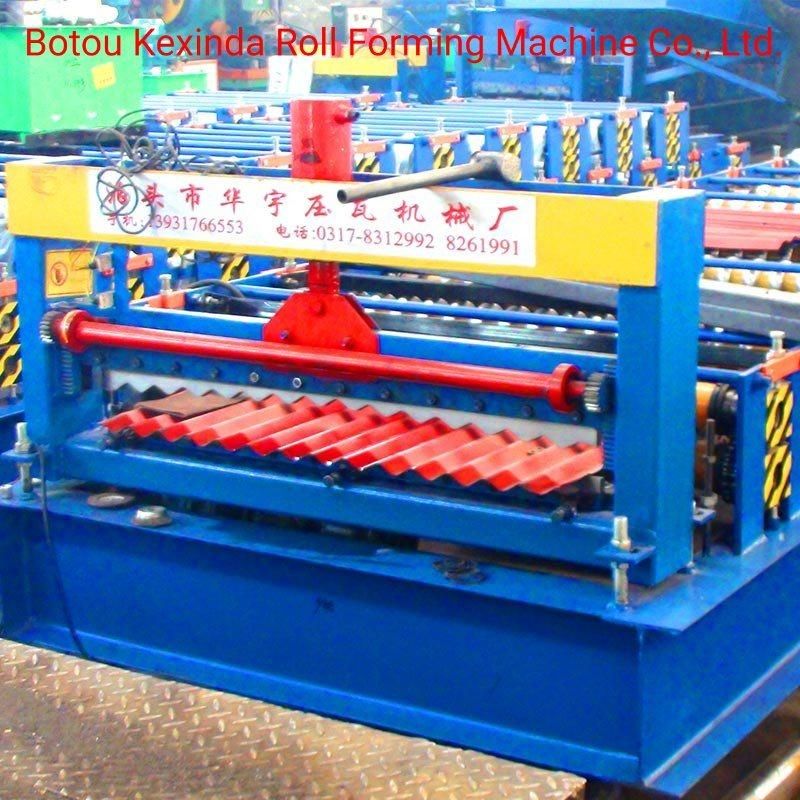

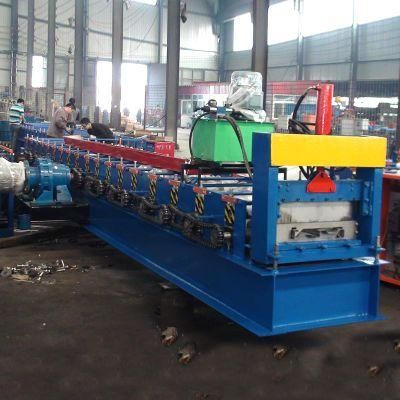

Main machine for roll forming

set

1

3

PLC Control system

set

1

4

Hydraulic system

set

1

5

Post cut

set

1

6

Stacking

set

1

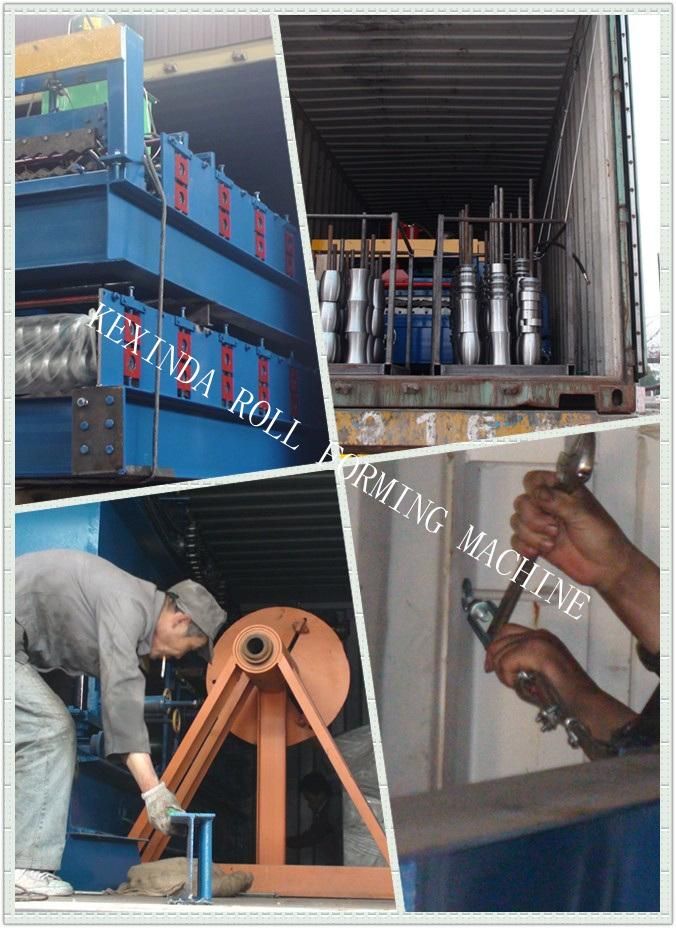

Packaging & Shipping

1:How to play order:

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

If any questions,you can call me mobile phone at any times

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
