Qt6-15 Concrete Brick /Block Making Machine Price
Shandong Shiyue Intelligent Machinery Co., Ltd.- Certification：CE, ISO, Tt
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- Overall Power：31.25kw
- Main Vibration Form：Platform Vibration
Base Info
- Model NO.：QT6-15 machine concrete brick making machine price
- Vibration Frequency：4600(R,Min)
- Pallet Size：850*680mm
- Molding Cycle：10-15s
- Rated Pressure：21MPa
- Market：Global Market
- Color：According Customer Need
- Warranty：12 Months
- Transport Package：According to Customer′ Need
- Specification：7100*1500*3000mm
- Trademark：shiyue
- Origin：Shandong Province China
- HS Code：8474802000
Description
Basic Info.
Model NO. QT6-15 machine concrete brick making machine price Vibration Frequency 4600(R/Min) Pallet Size 850*680mm Molding Cycle 10-15s Rated Pressure 21MPa Market Global Market Color According Customer Need Warranty 12 Months Transport Package According to Customer′ Need Specification 7100*1500*3000mm Trademark shiyue Origin Shandong Province China HS Code 8474802000Product Description

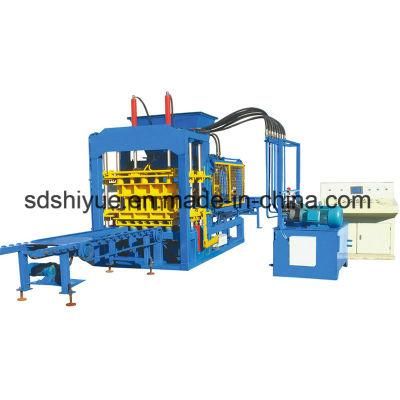

QT6-15 fully automatic hydraulic pressure block machine
Product Description
1.The machine adopts hydraulic system and the working procedure is very even and dependable,
2. It is a practical machine that simple in structure, artistic in figure.
3.Especially suitable to the production of the standard bricks
4. The reasonable material proportion have the capacity of making highdensity standard bricks,
Technical Parameters
| Overall Dimension | 8200*1700*2950mm |
| Rated Pressure | 21MPa |
| Main Vibration Form | Platform Vibration |
| Vibration Frequency | 2800~4500 ( r/min) |
| Pallet Size | 880*850mm |
| Molding cycle | 15-25 (s) |
| Overall Power | 37KW |
| Vibration Force | 45KN |
| Total Mass | 9T |
| Demolding method | Hydraulic |
| General water consumption | 12T/Day |
| Factory Area | 500m2 |
| Applied Products | Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc. |
| Raw Material | Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc. |
| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/8hours |
| 400X200X200 | 6 | 1200-1680 | 9600-13440 |
| 400X100X200 | 15 | 2160-2880 | 17280--23040 |
| 225X112.5X60 | 18 | 2700-3000 | 21600-24000 |
| 250X60 | 10 | 1500-1800 | 12000-14400 |
| 200X100X60 | 36 | 5400-5700 | 43200-45600 |
| 200X165X60 | 12 | 1800-2100 | 14400-16800 |
| 250x250x60 | 6 | 1200-1400 | 9600-11200 |

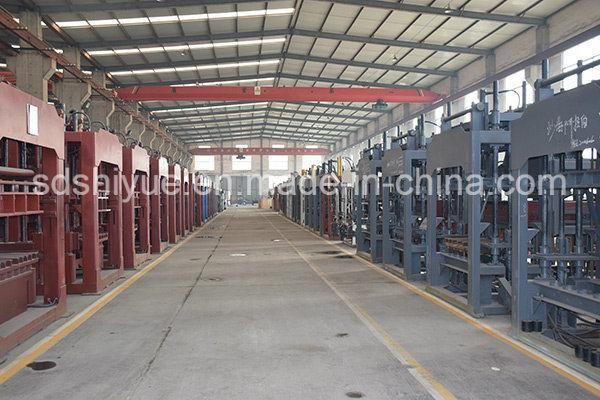

Our factory
