• Model NO.：QT6-15
• Capacity：400*200*200mm About 11500PCS Per Shift
• Mould Capacity：400*200*200mmmm Make 6 Pieces Per Mould
• Weight：Around 7000kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：15 Seconds
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Hollow, Solid, Paver and So on
• Transport Package：40 Feet High Container
• Specification：8200*1700*2950mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：2000 Sets Per Year

Basic Info.

Model NO. QT6-15 Capacity 400*200*200mm About 11500PCS Per Shift Mould Capacity 400*200*200mmmm Make 6 Pieces Per Mould Weight Around 7000kgs Voltage Customized Your Local Voltage Moulding Cycle 15 Seconds Warranty 1 Year Pressure Hydraulic Brick Type Hollow, Solid, Paver and So on Transport Package 40 Feet High Container Specification 8200*1700*2950mm Trademark Shiyue Origin Shandong Province, China HS Code 8474802000 Production Capacity 2000 Sets Per Year

Product Description

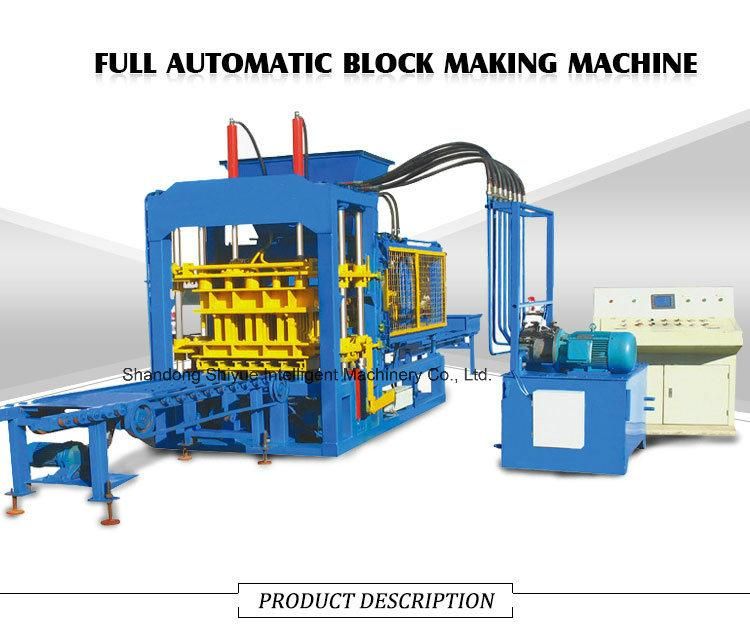

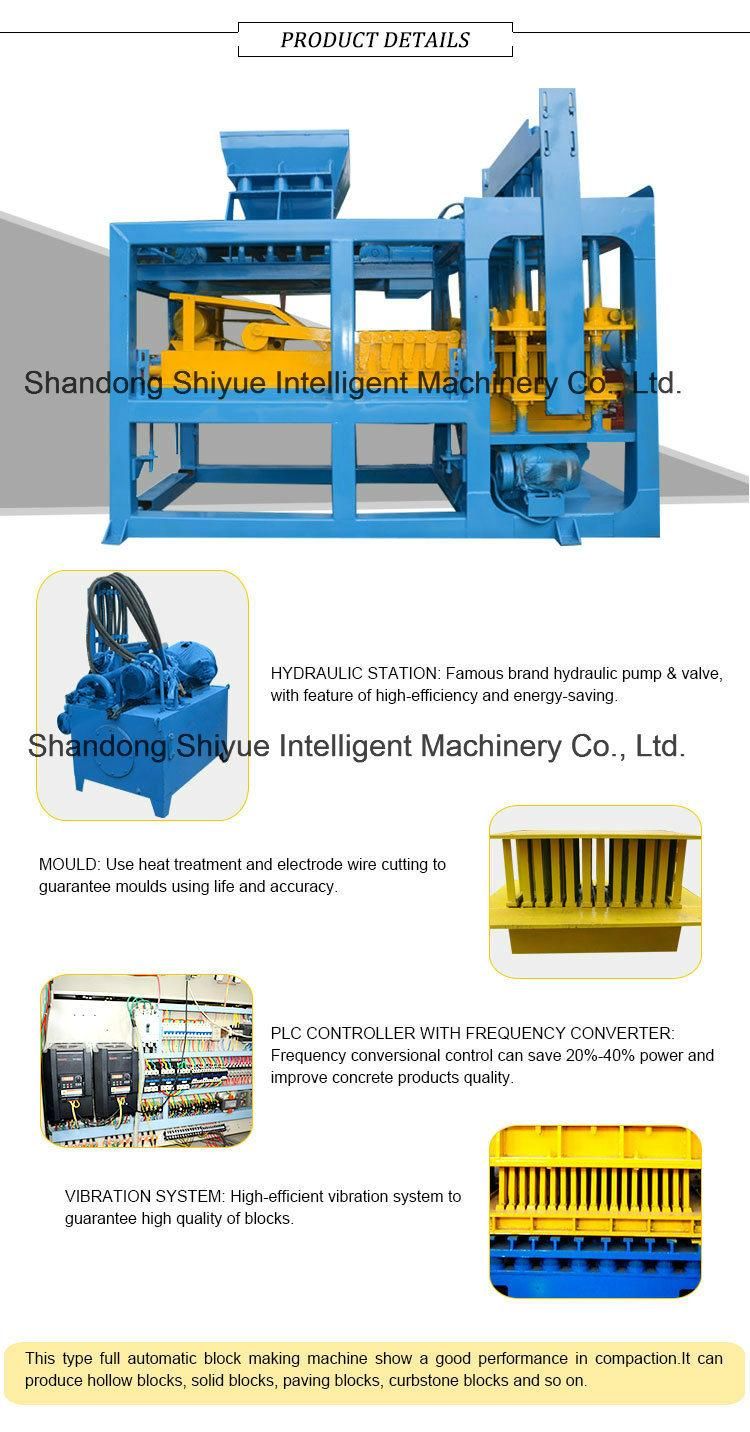

QT6-15 automatic hydraulic concrete brick/block making machine main parameters and specification



1.QT6-15 concrete block machine hollow block making machine price adopts hydraulic drive to products of high strength.
2. A short molding cycle
3. PLC intelligence control realizes dialogues between human and machine. The
production line, an advanced line, integrates mechanism, electricity and liquid
4. By replacing molds, QT6-15 concrete block machine hollow block making machine price can produce different sizes of concrete bricks.

Overall Dimension	8200*1700*2950mm
Rated Pressure	16-21MPa
Main Vibration Form	Platform Vibration
Vibration Frequency	2800-4500 ( r/min)
Pallet Size	880*850mm
Molding cycle	15-20s
Overall Power	37kw
Vibration Force	45KN
Total Mass	7T
Demolding method	Hydraulic
Factory Area	300m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material etc.

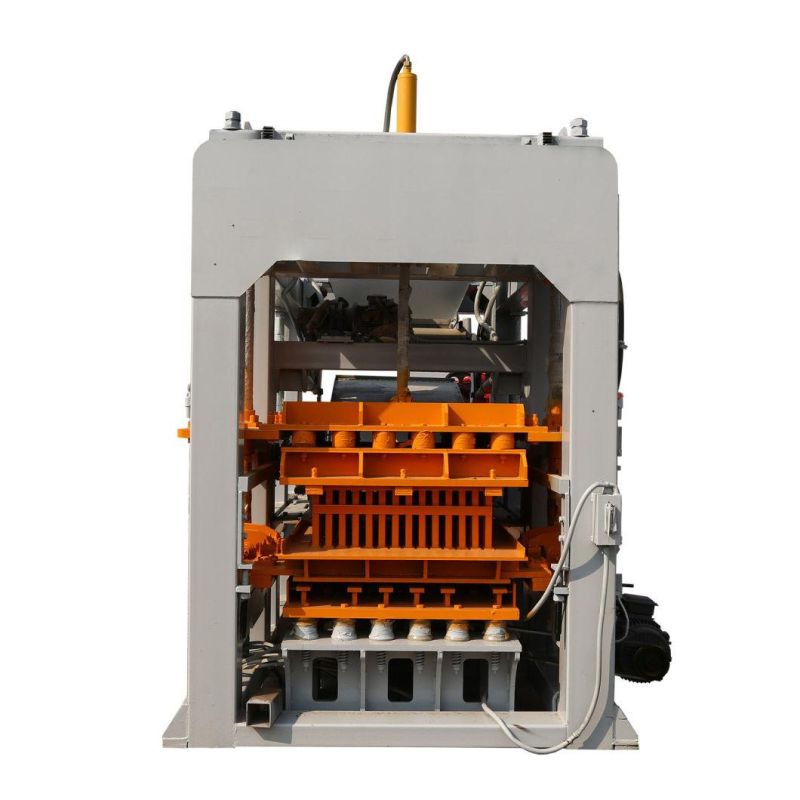

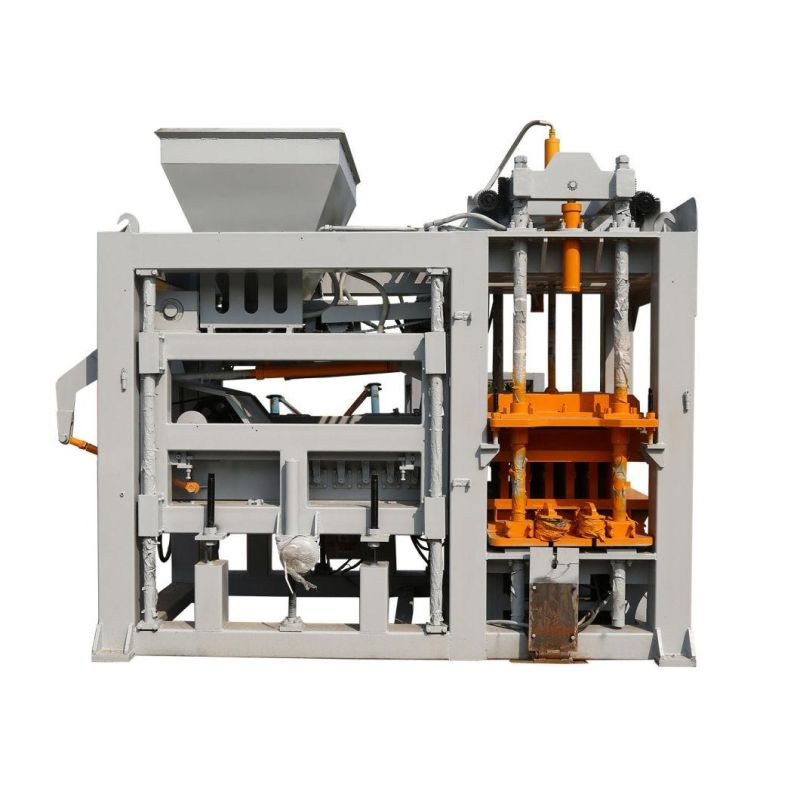

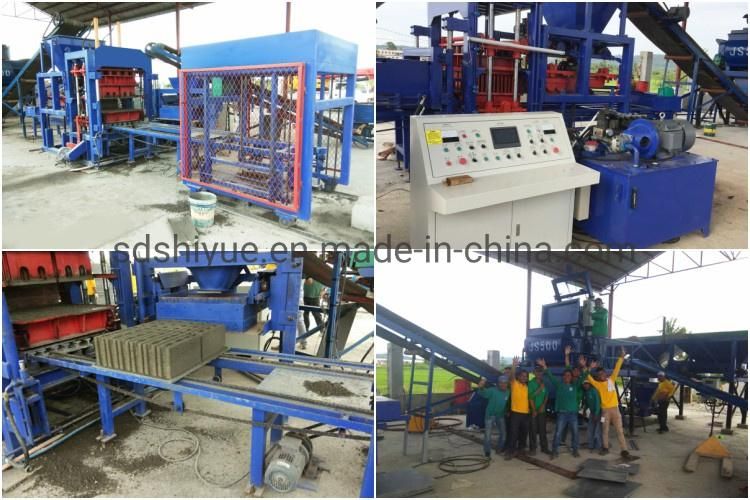

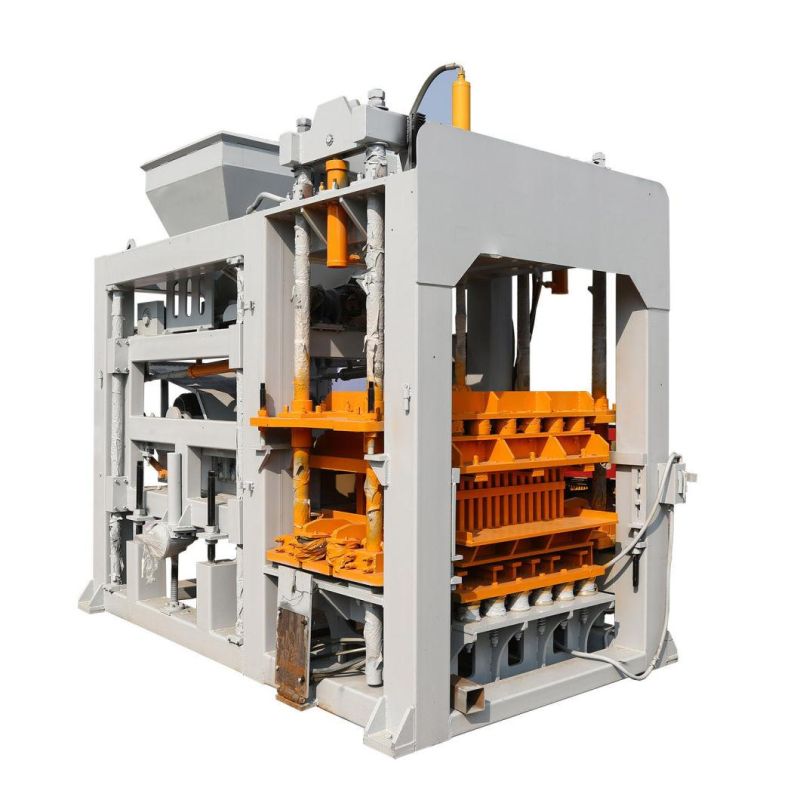

QT6-15 automatic hydraulic concrete brick/block making machine show

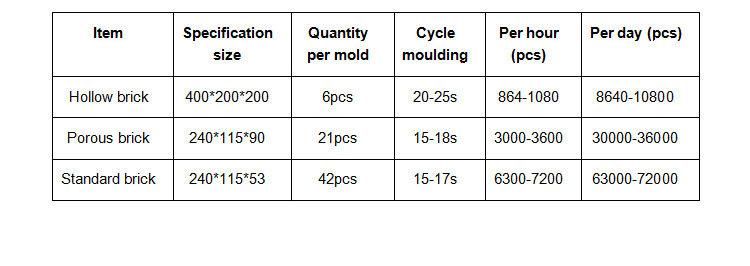

common brick capacity



FAQ
1> Is this block machine suitable for us to use?
Answer: if you want to make common interlocking bricks and bigger capacity, this model is suitable for you, if no, please tell us what kind of bricks do you want to make? or what capacity do you prefer?Then the most suitable model can be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
