• Model NO.：Zenith 1500-2
• Automation：Automatic
• Features：Low-Maintenance and Trouble-Free Production Proce
• Applied Products：All Kinds of Concrete Block, Paver, Curbstone etc.
• Applied Fields：Widely Used in Buildings, Squares, Gardens etc
• Transport Package：Standard
• Specification：Weight (with facemix device): 35T
• Trademark：ZENITH
• Origin：Germany
• Production Capacity：Paver 200*100*60mm: 2, 419 Sqm

Basic Info.

Model NO. Zenith 1500-2 Automation Automatic Features Low-Maintenance and Trouble-Free Production Proce Applied Products All Kinds of Concrete Block, Paver, Curbstone etc. Applied Fields Widely Used in Buildings, Squares, Gardens etc Transport Package Standard Specification Weight (with facemix device): 35T Trademark ZENITH Origin Germany Production Capacity Paver 200*100*60mm: 2, 419 Sqm

Product Description

Fully Automatic Rotary Solid Cement Brick Paving Making Machine

Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focuses on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturer. Our products include: Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line. Due to the highest quality and first class performance, more than 7,000 ZENITH customers all over the world will continuously benefit from ZENITH's expertise and know-how day after day, for more than 60 years.

In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quangong Machinery (called QGM for short) and became the member of QGM Group. QGM Group is able to provide a wide range of products to our users, from simple automatic production line to fully automatic production line, from middle class to high class.

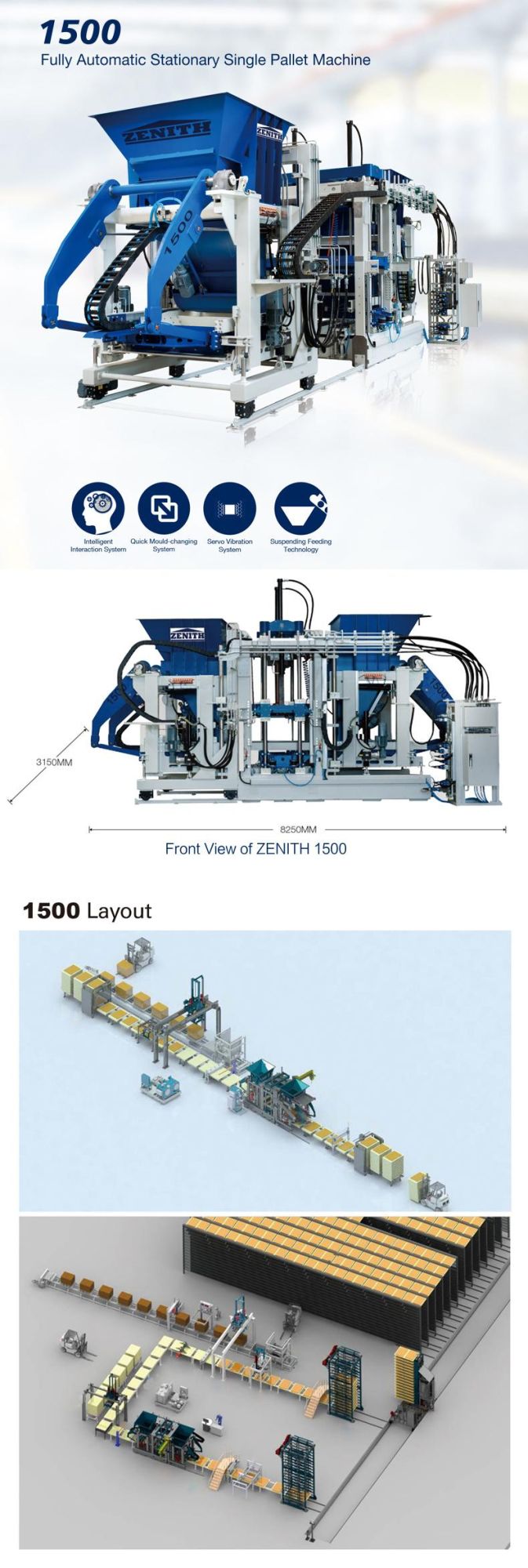

The newly designed high-performance single pallet machine 1500 forms the centrepiece of a state-of-the-art and efficiently working concrete block production. The wide range of production possibilities meets all customer requirements. The 1500 comprises the production of niche products, gardening and landscaping products as well as pavers, kerbstones and bricks.

In addition to a high quality and productivity, our engineers put special focus on guaranteeing a low-maintenance and trouble-free production process. Owing to the continuous use of screw fittings, all wear parts can be easily exchanged within shortest time. Based on the screwable design of the vibration table, the motor cross beam and the frame side parts, this machine is unique on the market as it adapts to the customer's production conditions.

An automatic quick change system for moulds, various Colormix equipment and other special equipment as well tamper head cleaning devices complete our delivery programme.

Moreover, the plant is equipped with a revolutionary control and diagnostic system which provides an all-round support for the machine operator and therefore always guarantees an efficient production.


Concrete Products Machine, Basic Part, Type ZENITH 1500, operated with steel pallets

Max. board size	1400 mm x 1200 mm x14 mm
Working area	As per layout drawing
Product height	50 mm - 500 mm


Max. board size: 1400 mm x 1200 mm x14 mm
Working area: As per layout drawing
Product height : 50 mm-500 mm

Fully automatic son car specification

Maximum load capacity	15.000 kg
Per insertion rack maximum load capacity	As per design
Every two layers insertion rack	As per design
Support bracket inside width	1,060 mm
Layers of insertion rack	As per project design
Distinction of insertion rack	As per design
Mother car driving power	SEW 11 kW

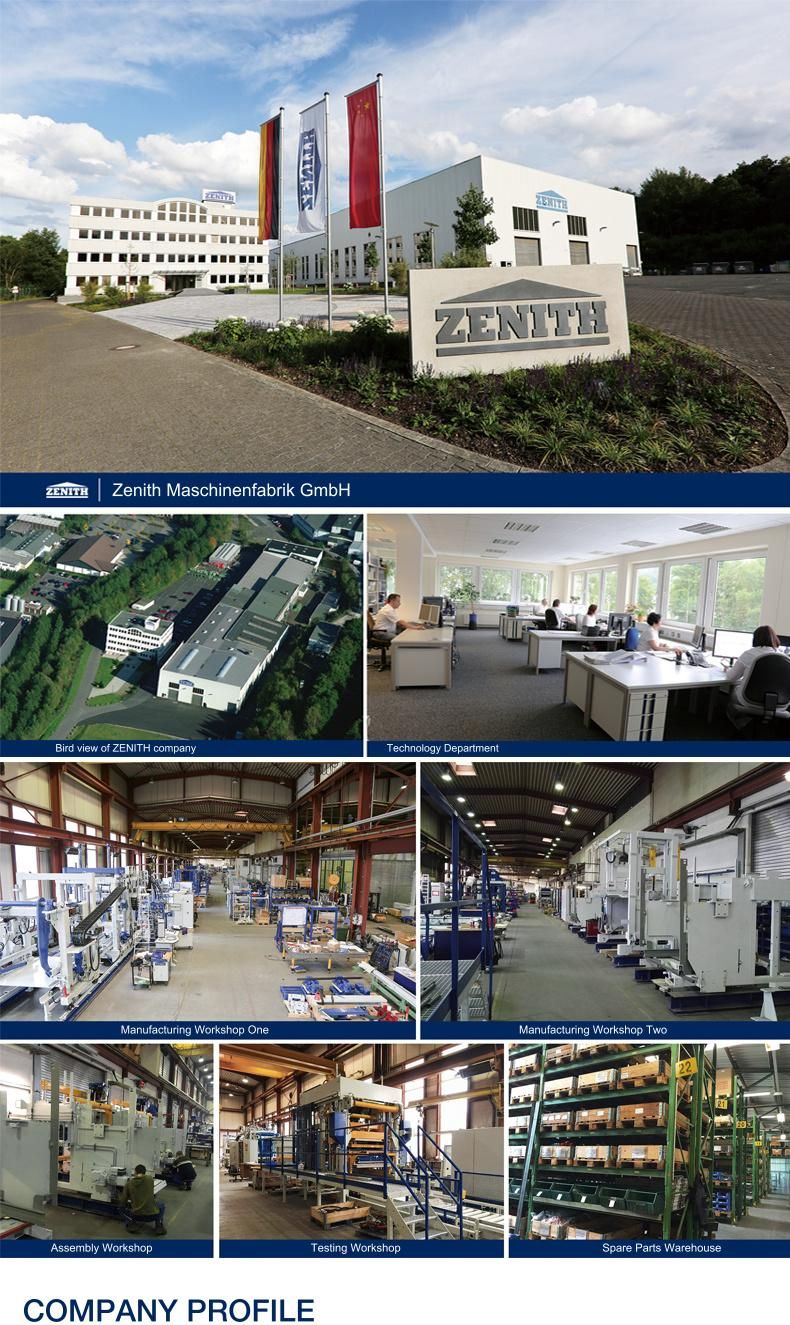

Established in 1953, ZENITH Maschinenfabrik GmbH (called ZENITH for short) is a Germany-based concrete block machine manufacturer. Over the last 6 decades, ZENITH focused on the R&D of non-pallet block producing technology and today ZENITH has become the worldwide leader in non-pallet block machine manufacturing. Our products include Mobile Multilayer Machines, Mobile Single Pallet Machines, Stationary Multilayer Machines and Stationary Fully Automatic Production Line.

Due to the highest quality and first-class performance, more than 7,000 ZENITH customers all around the world are continuous benefit from ZENITH's expertise and know-how day after day, for more than 60 years.

In July of 2014, ZENITH Maschinenfabrik GmbH was acquired by Quan Gong Machinery (called QGM for short), and become a member of QGM Group. QGM Group is able to provide a wide range of products to our users, from the simple automatic production line to fully automatic production lines, from middle class to high class.

 If you're interested in our products, just send the inquiries to us or pick up the phone and call us.
