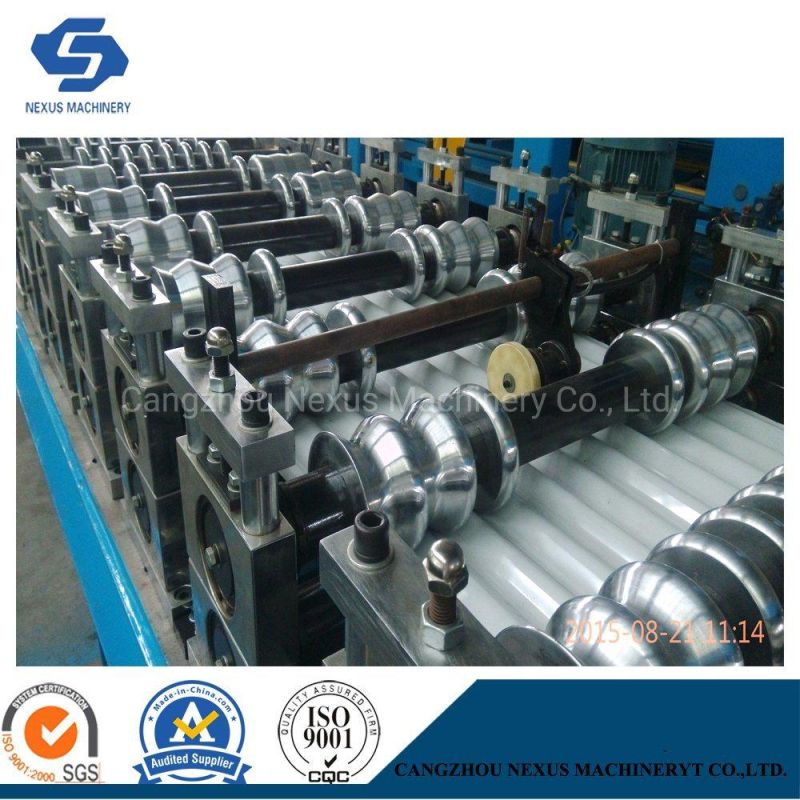

Steel Silo Panel Roll Forming Machine for Australia Market
Cangzhou Nexus Machinery Co., Ltd.- After-sales Service：Provide Overseas Service
- Warranty：1 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Model NO.：NM3249
- Usage：Roof, Wall
- Transmission Method：Electric
- Product Name：Steel Silo Panel Roll Forming Machine for Australi
- Raw Material：Gi Sheet
- Thickness Range：0.8-1.5mm
- Machine Power：7.5kw+4kw
- Machine Weight：About 5 Tons
- Warrenty：12 Months
- Roll Station：20 Groups
- Working Speed：7m--10m,Min(Exclude Cutting Time)
- Size of Machine：About 7500*1800*1500mm L x W x H
- Other Electrical Element：Schneider
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6000mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description
Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 7.5kw Drive 1'' single chain Type: guide pin Main shaft dia ¢70mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 20 groups Raw material 0.8-1.5mm Coil width 1200mm Working speed 7m--10m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 5 ton Size of machine About 7500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 4KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Character of main structure:
Exhibition and Certificate:
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Steel Silo Panel Roll Forming Machine for Australia Market (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.
