Five Axis CNC Corner Cleaning Machine for UPVC Window and Door
Shandong Truetec Machinery Co., Ltd.- Condition：New
- Certification：CE
- Automatic Grade：Automatic
- CNC or Not：CNC
- Voltage：380V
- Input Power：1.4kw
Base Info
- Model NO.：CSQJB-CNC-120
- Rotary Speed：2800r,Min
- Air Consumption：80L,Min
- Profile Height：30-120mm
- Profile Width：20-120mm
- Air Pressure：0.5-0.8MPa
- Machine Dimension：1570*2670*2070mm
- Weight：750kg
- Usage：UPVC Window Corner Cleaning
- Transport Package：Wooden
- Specification：CSQJB-CNC-120
- Trademark：Truetec
- Origin：China
- HS Code：846599
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. CSQJB-CNC-120 Rotary Speed 2800r/Min Air Consumption 80L/Min Profile Height 30-120mm Profile Width 20-120mm Air Pressure 0.5-0.8MPa Machine Dimension 1570*2670*2070mm Weight 750kg Usage UPVC Window Corner Cleaning Transport Package Wooden Specification CSQJB-CNC-120 Trademark Truetec Origin China HS Code 846599 Production Capacity 500sets/YearProduct Description

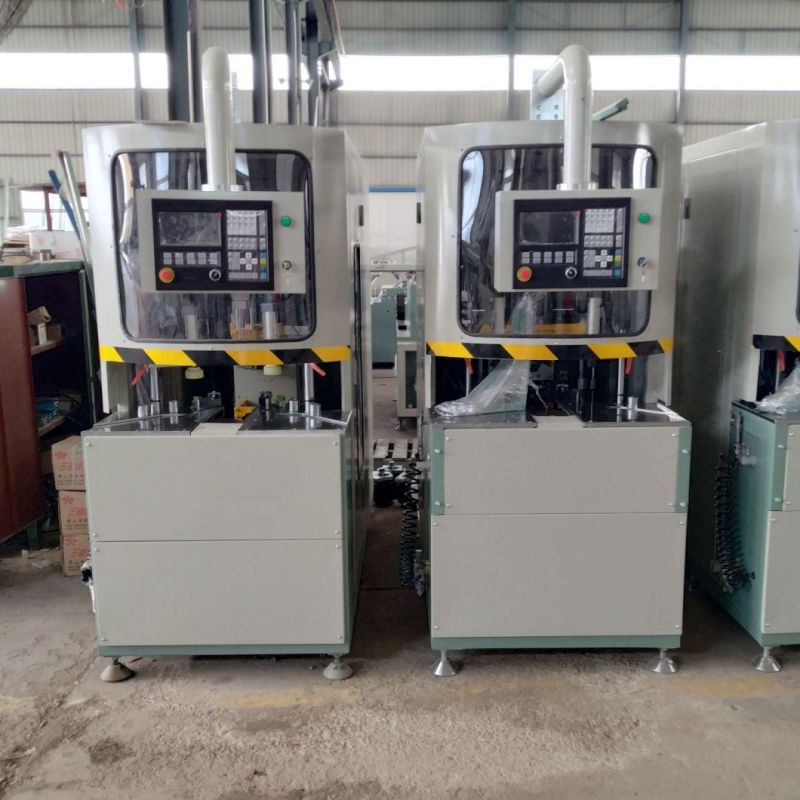

Five axis CNC corner cleaning machine for UPVC window and door
Machine feature:

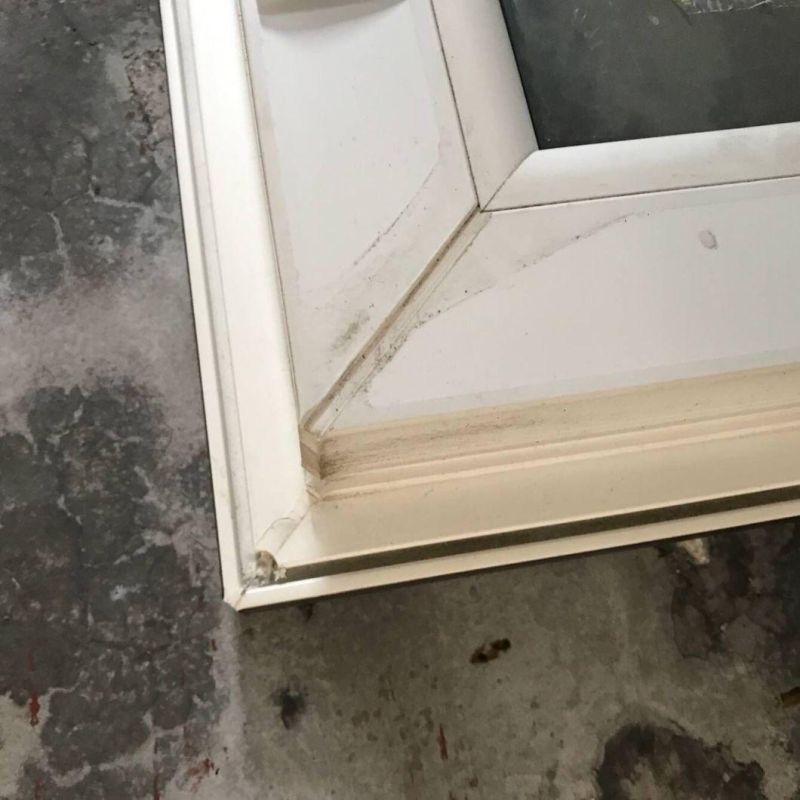

For cleaning PVC profile welding seam.
Double-axis control system.
Imported servo drive system, computer control system, solenoid valve, air source disposer and so on ensured reliable
performance and long using life.
Could clean multi- shaped welding seams.
High processing precision due to size error compensation Function.
Can store many programs for various profile processing.
Can clean outside vertical surface, up/ bottom welding seam, and seal rubber groove part.
Parameter:
| Power Supply | 380V 50Hz |
| Total Power | 1.4Kw |
| Operation Air | 0.5~0.8Mpa |
| Air Consumption | 80L/min |
| Principal Axis Rotate Speed | 2800r/min |
| Processing Profile Height | 30-120mm |
| Processing Profile Width | 20-120mm |
| Contour Dimension | 1570*2670*2070mm |
| Weight | 750kgs |
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

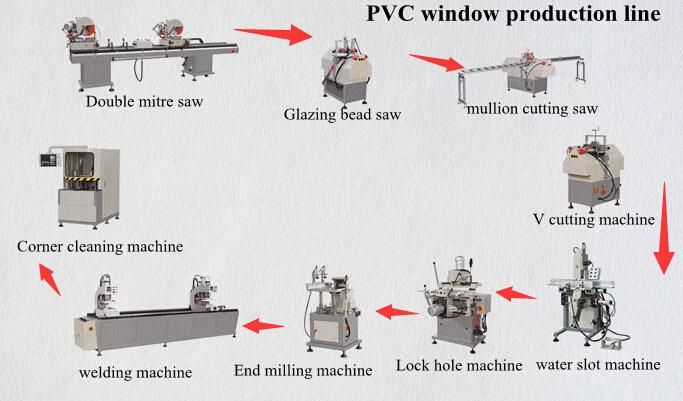

4. If I make PVC window and door, how many basic machines do i need?
