Profiled Steel Sheet Concrete Slab Plate Floor Decking Panel Roll Forming Machine with PLC Control System
Cangzhou Nexus Machinery Co., Ltd.- Tile Type：Galvanized Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Floor
- Transmission Method：Electric
Base Info
- Model NO.：NM181
- Raw Material：Gi Steel, PPGI Steel
- Thickness Range：0.8-1.5mm
- Embossing Type：Roll Forming
- Machine Power：22kw+5.5kw
- Work Speed：10-15m,Min
- Machine Weight：12 Tons
- Warranty：1 Year
- After-Sales Service：Engineer Is Availble to Overseas
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：11500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：Cangzhou, China
- HS Code：8455221000
- Production Capacity：30 Sets , Month
Description
Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 11kw*2 Drive 1'' single chain Type: Wall board Main shaft dia ¢95mm material 45# forge steel and quenched Roller material 45# high grade forge steel ,chrome coated 0.05mm Roll station 24 groups Raw material 0.8-1.5mm Coil width 1000mm Working speed 10m--15m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 12 tons Size of machine About 12500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client) Computer operating panel touching screen Other electrical element Schneider Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 5.5KW Blade material Cr12mov,quenched 58°-62° Working pressure 16mpa Cutting tolerance +/- 1.0mm
4. Equipment list :
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

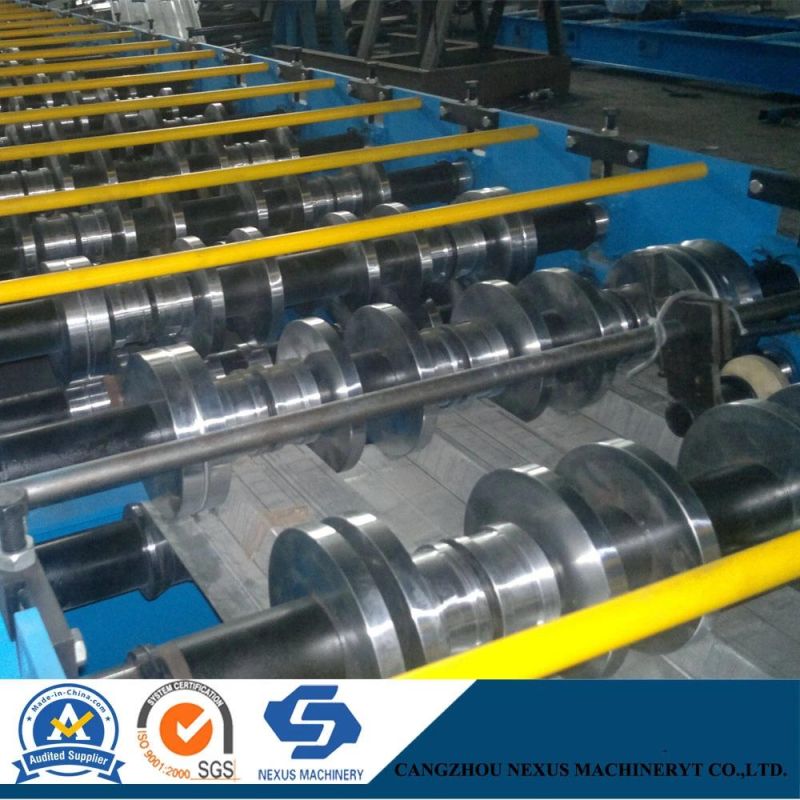

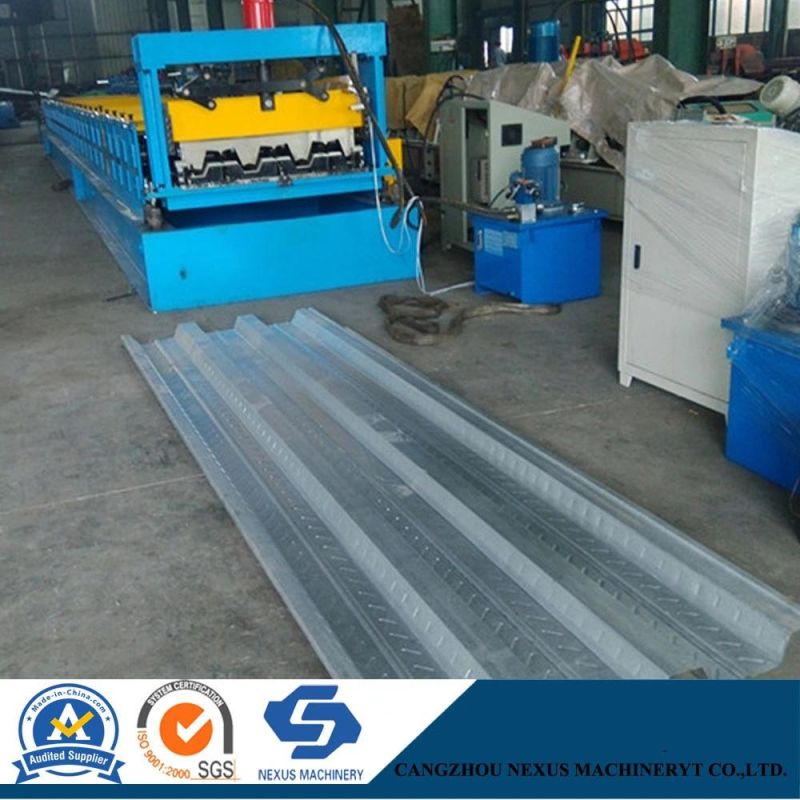

6. Photos of Profiled Steel Sheet Concrete Slab Plate Floor Decking Panel Roll Forming Machine With PLC Control System for Reference:

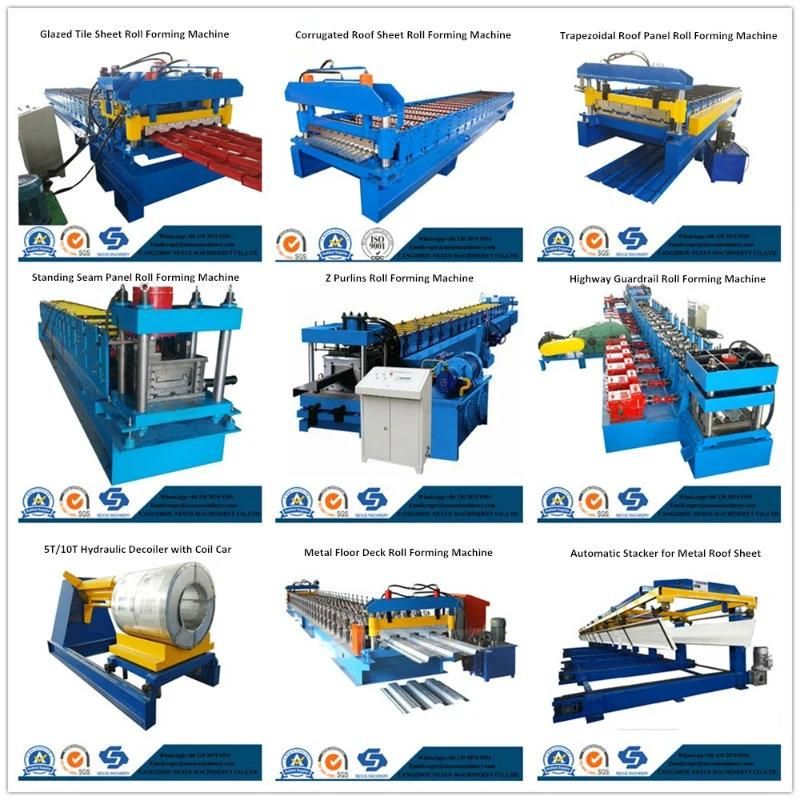

More Products for your Choose:
7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
4. Equipment list :
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Profiled Steel Sheet Concrete Slab Plate Floor Decking Panel Roll Forming Machine With PLC Control System (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Guarantee:
1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
6. Photos of Profiled Steel Sheet Concrete Slab Plate Floor Decking Panel Roll Forming Machine With PLC Control System for Reference:
More Products for your Choose:
7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
