• Model NO.：80--300
• Product Name：Roll Forming Machine for Light Gauge Steel
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Forming Speed：15-25m,Min
• Motor：3kw
• Size of Machine：3.5mx1.2mx1.45m or as Design
• Outer Diameter：40mm
• Shaft Material：45# Steel
• Roller Station：12 Stations
• Transport Package：Plastic Film
• Specification：70-120
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Model NO. 80--300 Product Name Roll Forming Machine for Light Gauge Steel Coil Material Thickness 0.3-0.8mm Processing Material Galvanized Steel Roller Material Cr12MOV  Forming Speed 15-25m/Min Motor 3kw Size of Machine 3.5mx1.2mx1.45m or as Design Outer Diameter 40mm Shaft Material 45# Steel Roller Station 12 Stations Transport Package Plastic Film Specification 70-120 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

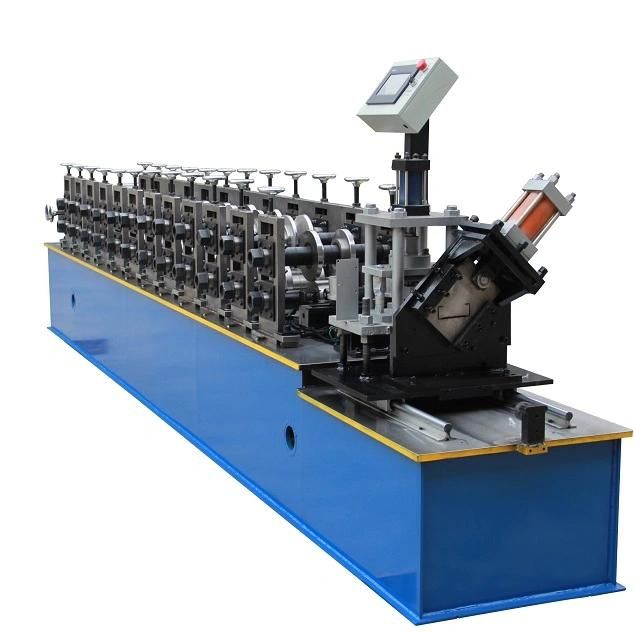

Roll Forming Machine For Light Gauge Steel Framing C U Profile Roll Forming Machine For Light Gauge Steel Framing C U Profile is consist of decoiler ,feeding, roll forming, punching and cutting. They all automatic controlled by computer. The feature are efficient and easy to be controlled.

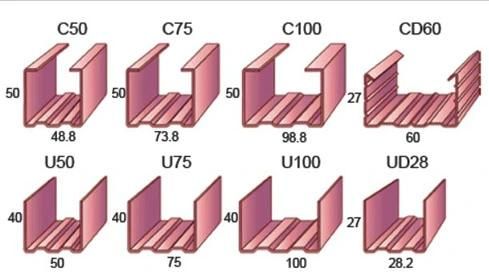

1. Profile	Coil material thickness:0.3-0.8mm Sizes: 76mm*35mm, 76mm*32mm Processing Material :galvanized steel Input Width(mm): according to drawings
2. Process flow	Decoiler--Feeding--Forming--Servo track Cutting--Product Table
3. Manual Decoiler	1).Material coil inner diameter: 450mm-550mm   2).Max coil Width:500mm 3).Carrying capacity: 1.5T 4) Type of decoiler: Manual 5) Weight of decoiler: 100 KGS

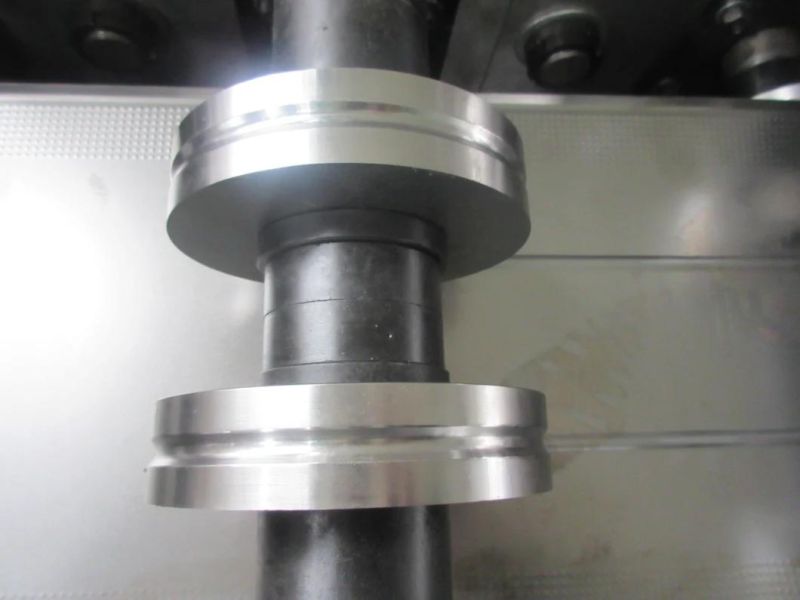

4. Forming System	.Roller station:12 stations .Shaft material:45# steel           Outer diameter:40mm              Roller material: Cr12MoV    .Transport: chain transmission .Forming Speed: 15-25m/min   Length Measurement:counter .Motor:3kw .Normal Size of Machine: 3.5mx1.2mx1.45m or as design .Voltage:380v,50Hz,3 phase (or as demand)
5. Cutting System	1).Material: blade and mold material: Cr12MoV steel with quenched treated 60-62ºC .Cutting system: Advanced hydraulic drive, automatic cutting with no stop, no distorting or wasting, high level safety factor.
6. Control System	6.1 Screen: touch screen   6.2 PLC: Delta 6.3 Automatic length measurement   6.4 Automatic quantity measurement   6.5 Computer is used to control length and quantity. Machine will automatically cut to length 6.6 Length inaccuracy can be amended easily
7. Hydraulic System	1). Hydraulic system made in china 2). Power:3kw   3) Oil: Hydraulic 46#
