• Model NO.：100t
• Average Thickness：6-8mm
• Cement Silo Diameter：2.5m,3m,3.5,3.8,4.1m
• Cement Silo Height：8.7,11.4,11.8,13,14.5m
• Total Height：16,18,20.3,22,22.8m
• Matched Mixer：Js500,750,1000,1500,2000,3000,Sicoma Mixers;
• Transport Package：Standard Packing for International Transport
• Specification：ISO CE certified
• Trademark：FOCUS cement silo
• Origin：Henan Zhengzhou
• HS Code：8479899200
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. 100t Average Thickness 6-8mm Cement Silo Diameter 2.5m/3m/3.5/3.8/4.1m Cement Silo Height 8.7/11.4/11.8/13/14.5m Total Height 16/18/20.3/22/22.8m Matched Mixer Js500/750/1000/1500/2000/3000/Sicoma Mixers; Transport Package Standard Packing for International Transport Specification ISO CE certified Trademark FOCUS cement silo Origin Henan Zhengzhou HS Code 8479899200 Production Capacity 100 Sets Per Month

Product Description

Q235 steel 100 ton Sectional Concrete Cement Silo for concrete batching plant:
Sizes of FOCUS Cement silo:
Integral type cement silo:50ton welded concrete cement silo, 50ton complete concrete cement silo, 50ton whole piece concrete cement silo, 50ton undetachable concrete cement silo

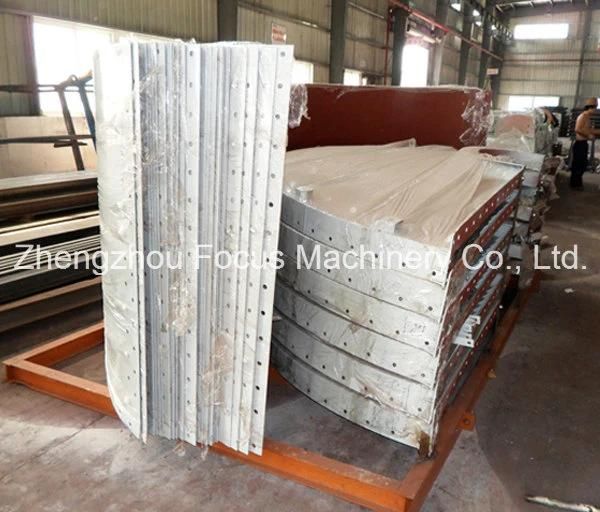

Bolted type cement silo:50t sectional concrete cement silo, 60t sectional concrete cement silo, 100t sectional concrete cement silo,150t sectional concrete cement silo,200t sectional concrete cement silo,300t sectional concrete cement silo,500t sectional concrete cement silo.
Description of  FOCUS sectional concrete cement silo?
FOCUS concrete cement silo is a kind of closed huge column-shape tank storing bulk materials. The concrete cement silo is suitable for storing bulk materials such as grains, cement, powder and fly-ash. Material level system is installed in the silo, which can show the position and quantity of the materials. The arch-breaking equipment can clear up hard materials from long time sediment. The materials can be sent to all the positions with the combination of cement silo and screw conveyor pump. Easy installation with its characteristics of safety and reliability make it an ideal cement bin for the concrete mixing plant. 30T, 50T, 80, 100T, 150T, 200T,300T,500T detachable and whole piece concrete cement silos can be chosen according to clients' requirements.

Model	Silo diameter	Silo height	Total height	Matched mixer	Matched screw
50T	2.5m	8.7m	16m	JS500/JS750/JS1000	LSY219/LSY273
100T	3m	11.4m	18m	JS1000/JS1500/JS2000	LSY219/LSY273
150T	3.5m	11.8m	20.3m	JS1000/JS1500/JS2000/JS3000	LSY273/LSY325
200T	3.8m	13m	22m	JS2000/3000/MAO3000/2000/MAO4500/3000	LSY273/LSY325
300T	4.1m	14.5m	22.8m	JSseries/MAO4500/3000/MAO6000/4000/MAO7500/5000	LSY325
