• Model NO.：Qt6-15
• Color：Changeable
• Block Type：Hollow Concrete Brick Machine
• Weight：8t
• Name：Automatic Brick Making Machine
• Model：Qt6-15
• Molding Cycle：15s
• Power of Host Machine：29.1kw
• Main Market：African Countries
• Mixer Model：Js500
• Transport Package：Container
• Specification：3500*1700*2930mm
• Trademark：DUYUE
• Origin：China (Mainland)
• HS Code：8474802000
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. Qt6-15 Color Changeable Block Type Hollow Concrete Brick Machine Weight 8t Name Automatic Brick Making Machine Model Qt6-15 Molding Cycle 15s Power of Host Machine 29.1kw Main Market African Countries Mixer Model Js500 Transport Package Container Specification 3500*1700*2930mm Trademark DUYUE Origin China (Mainland) HS Code 8474802000 Production Capacity 30 Sets Per Month

Product Description

Production description

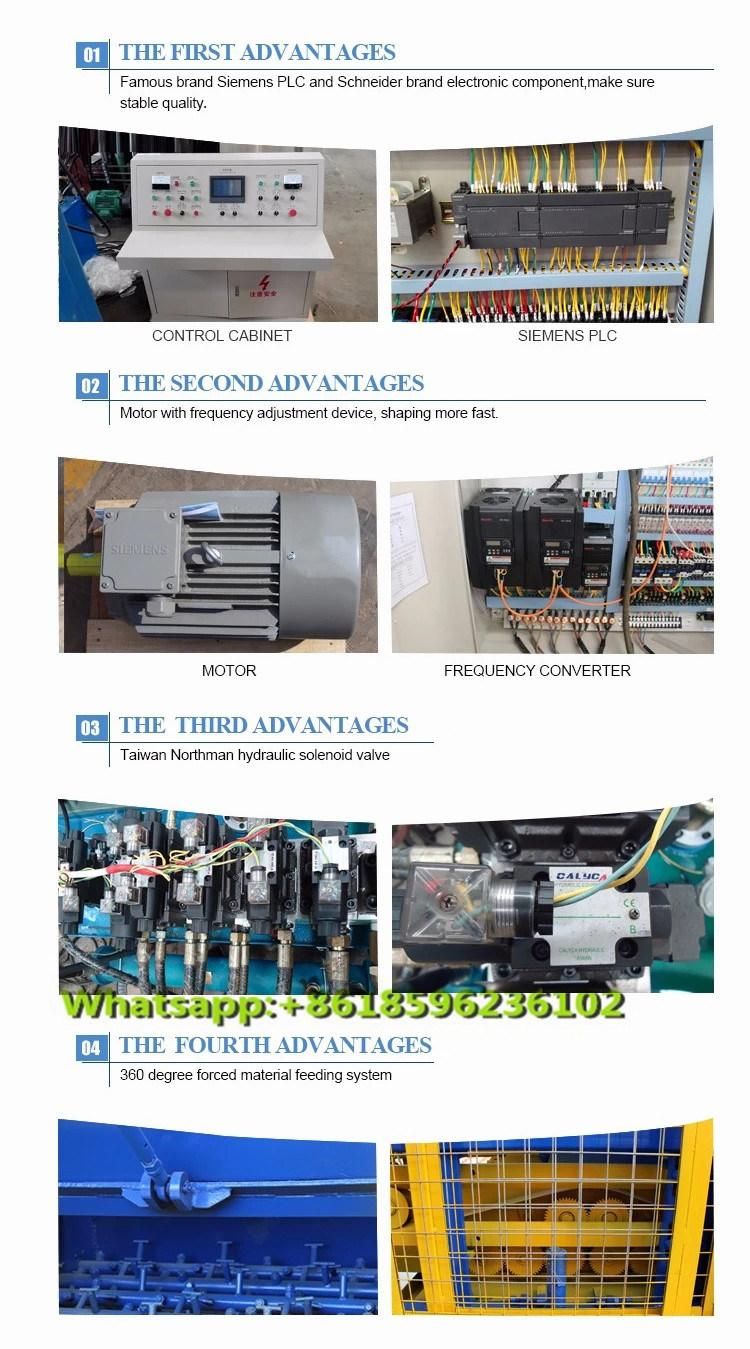

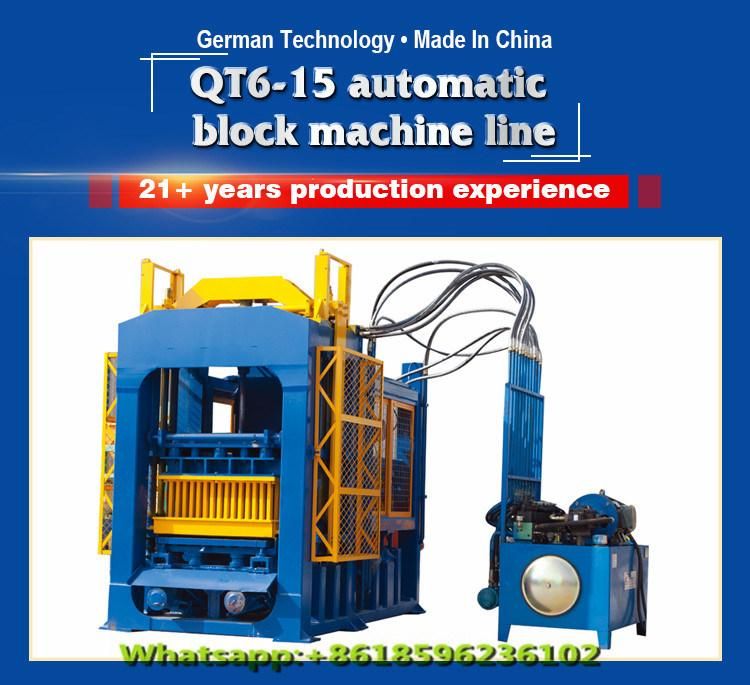

Advangtage of QT6-15 High Production Fully Automatic Hydraulic Concrete Hollow Block Machine Cement Paver Machine Curbstone Making Mahcine Line
1.Use Germany Siemens PLC control system and Siemens Touch Screen, use Schneider and Omron relays and contactors:
© Siemens PLC, with great adaptability, guarantees the stability and reliability of the machine.
© Visualization touch screen, with easy operation;
© High-quality electrical components from Schneider and Omron;
2.Use Frequency Conversional Control Technology, which controls the block making:
© Frequency Conversion Control:Guarantees the precise and parallel movement between tamper  head and          mould, protects the products from transfiguration;Increases the production rate by improving the vibrating          efficiency;
© Controls the instantaneous start and stop of the motors, to protect the motor from over-heating caused by          constant working;
© Power saving:30%;
3.Use Double high-dynamic Proportional/Directional Valves to automatically adjust the oil flow and pressure:
© Buffer the hydraulic cylinder, to protect the cylinder from damage caused by inertia;
© Guarantee production stability;
4.360° Multi-Shaft Rotating and Compulsory Feeding:
© Speedy and rotating feeding, with uniform mixing, to make sure that the density and intensity of the products      are guaranteed
© This uniform feeding is applicable for different kinds of raw materials and moulds;
5.Use heat treatment on moulds and main parts of the machines:
© Heavy duty machine structure and wear resistant moulds;
© The hardness reaches up to HRC 52-58;
© Greatly improves the using lifetime of the machine by 50%.

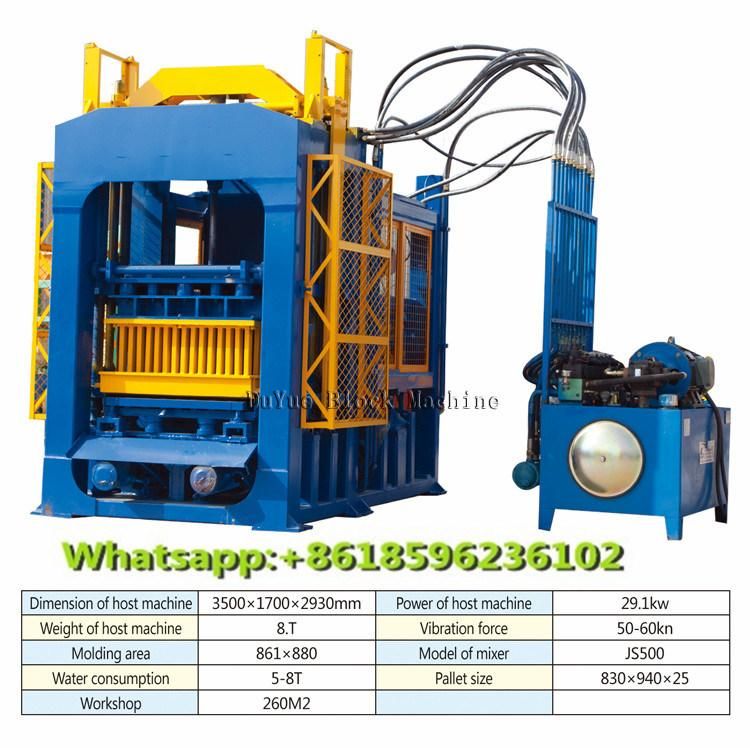

Main technical parameters

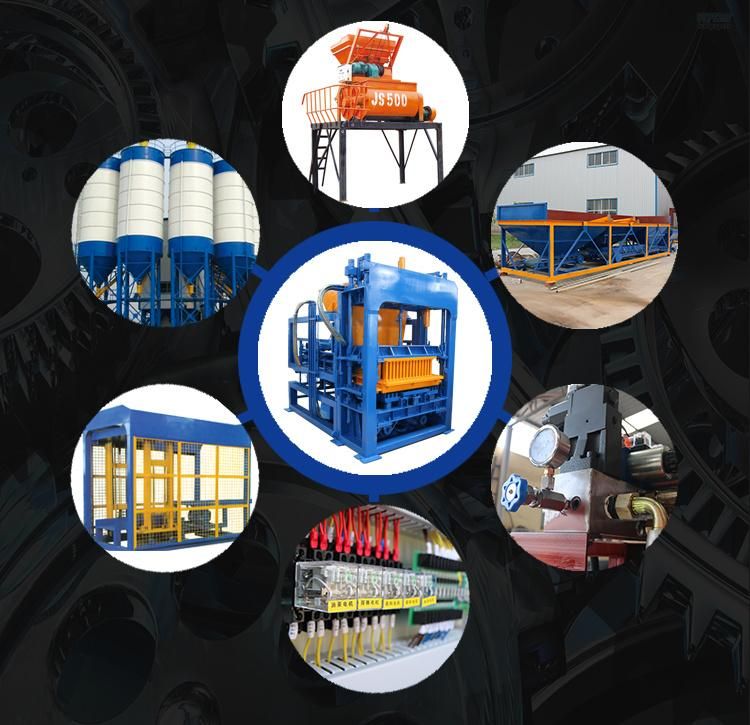

Product details

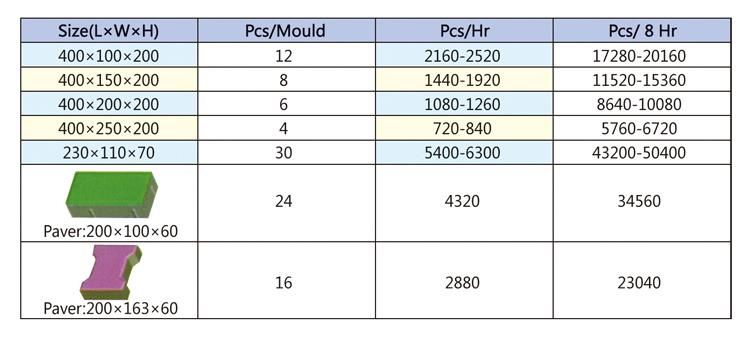

 Theoretical production efficiency










Duyue Industry Co.,LTD
