Building Material Making Machinery

Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Product Type:Roll Forming Machine
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Screw Design:Double-Screw
  • Certification:CE, ISO
  • Condition:New

Base Info

  • Customized:Customized
  • Feeding Material Width:300mm or Customized
  • Feeding Thickness:0.3-0.8mm
  • Main Motor Power:11kw
  • Cutting Method:Hydraulic Mould Cutting
  • Cutting Material:Cr12
  • Cutting Power:5.5 Kw
  • Roller Material:45# Steel
  • Roller Station:18 Stations
  • Machine Color:as Customer Need
  • Machine Size:About 9800*1700*1450mm
  • Transport Package:Main Machine with Simple Plastic Film.
  • Specification:size: about 9.8*1.7*1.45m
  • Trademark:KXD
  • Origin:China
  • HS Code:8455221000
  • Production Capacity:300 Sets,Year

Description

         Main parameters of siding panel wall sheet decorative board roll forming machine line1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.Width of the feeding materialas customer need3Roller station18 rows4Thickness of feeding material0.3-0.8mm5Productivity 10-15m/min6Rollers' material45# steel, with hard chrome on surface7Diameter of shaft80mm8Weight About 8.0 T9Size 9.8*1.7*1.45m10Voltage380V 50Hz 3Phase11Main frame of machine300mm H steel12Main motor power11 kw13Hydraulic cutting power5.5 kw14Side panel thickness14-20mm



Our company information:
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line

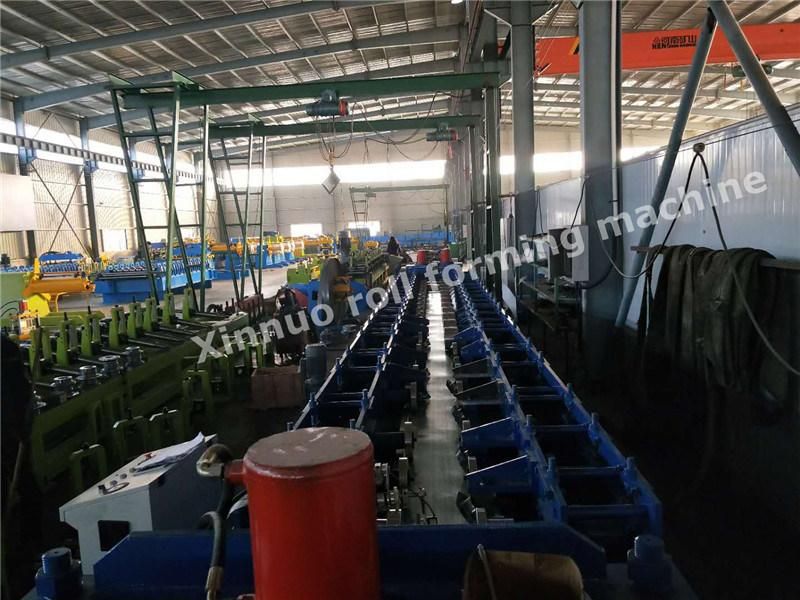

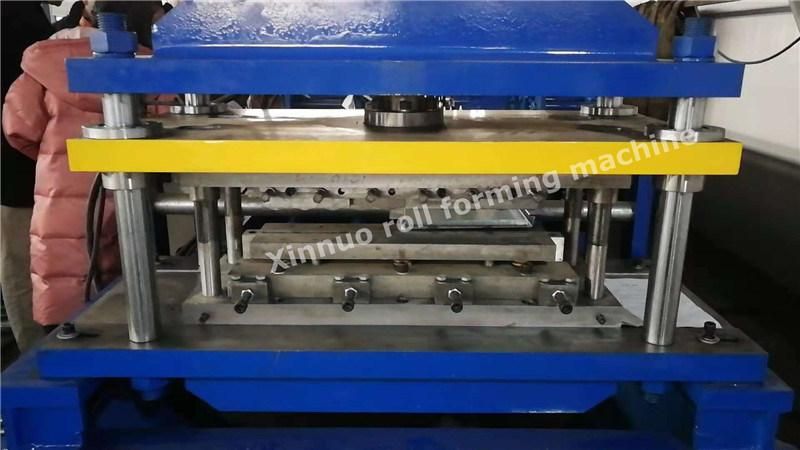

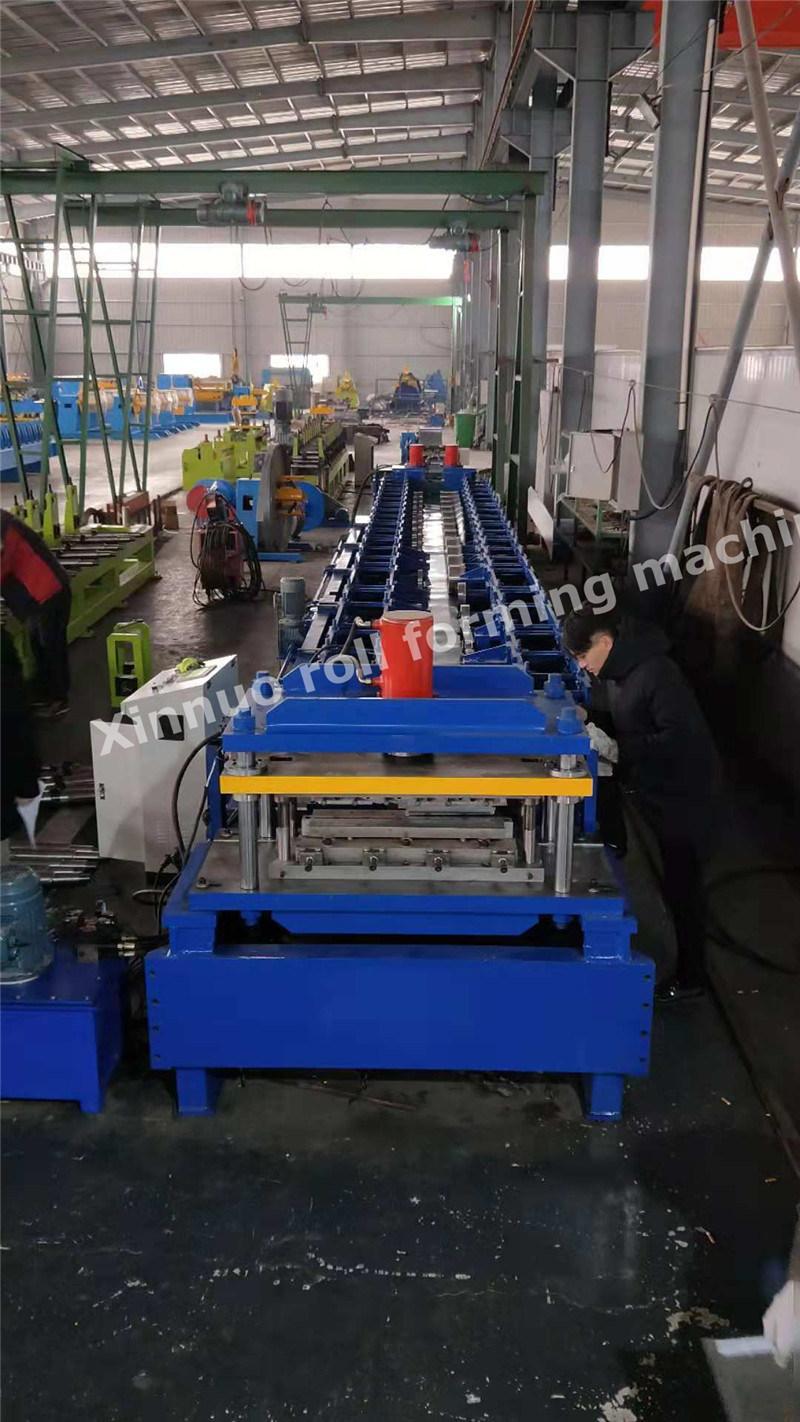

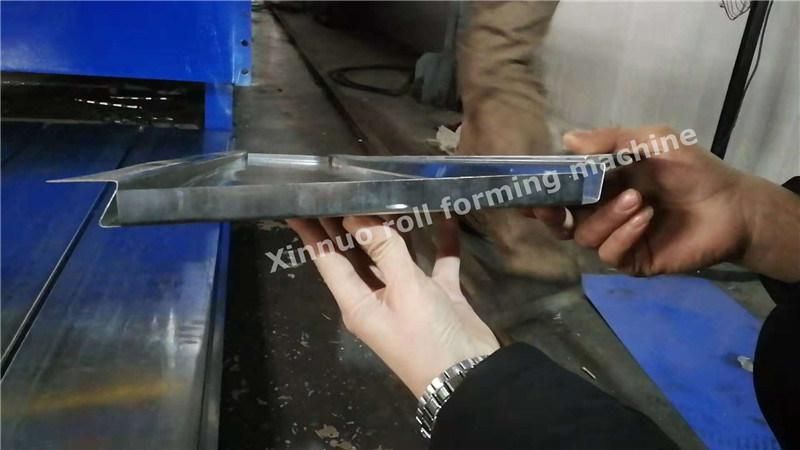

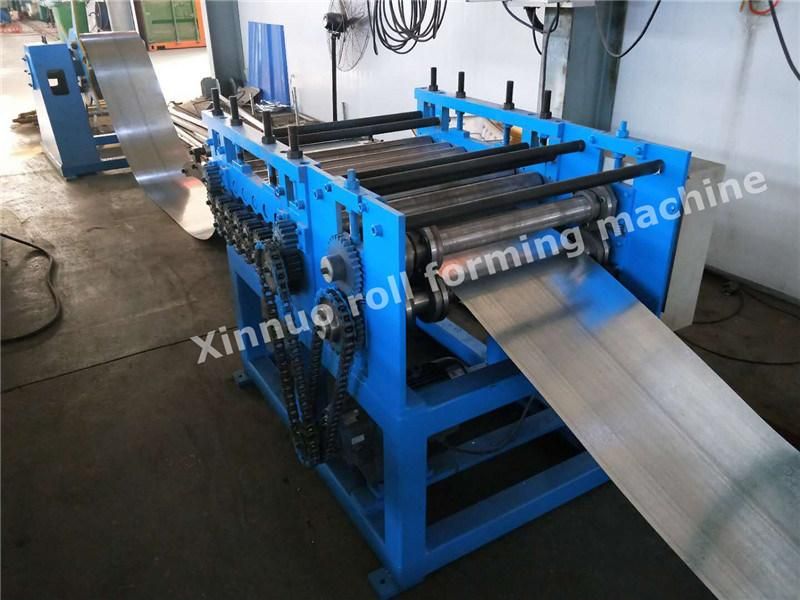

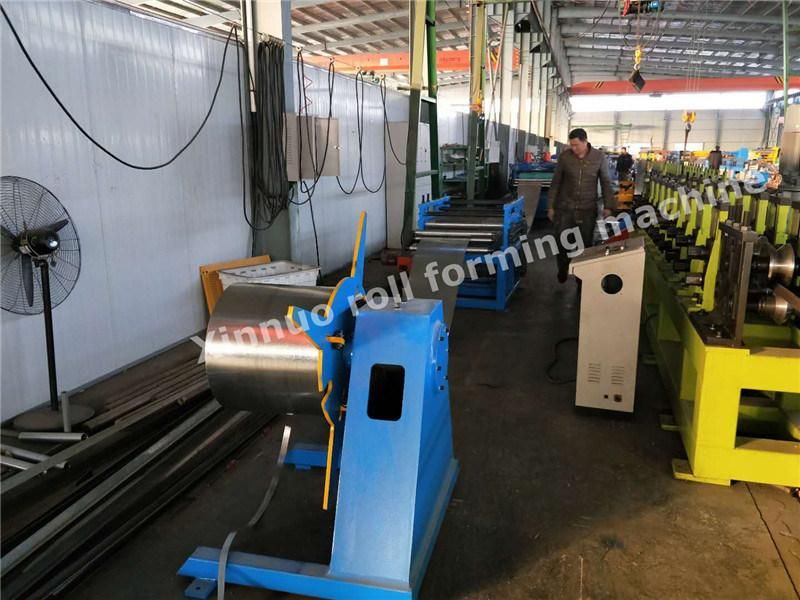

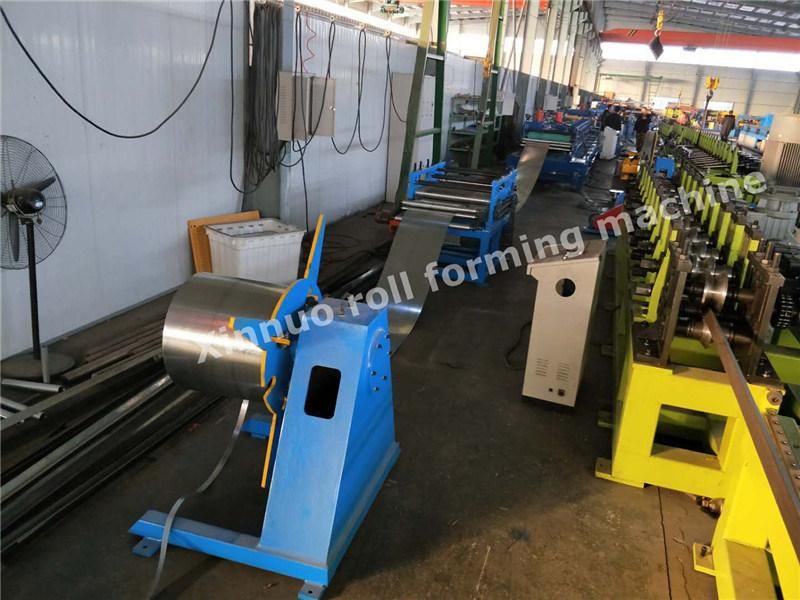

Pictures of siding panel wall sheet decorative board roll forming machine line

Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line
Siding Panel Wall Sheet Decorative Board Roll Forming Machine Line


If there is anything I can do for you, please don't hesitate to contact me, my friend!

Contact: Ms Rita Gao
