Decorative Board Wall Panel Drywall Roll Forming Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- Product Type：Roll Forming Machine
- Automatic Grade：Automatic
- Power Source：Electric
- Screw Design：Double-Screw
- Certification：CE, ISO
- Condition：New
Base Info
- Customized：Customized
- Feeding Material Width：300mm or Customized
- Feeding Thickness：0.3-0.8mm
- Main Motor Power：11kw
- Cutting Method：Hydraulic Mould Cutting
- Cutting Material：Cr12
- Cutting Power：5.5 Kw
- Roller Material：45# Steel
- Roller Station：18 Stations
- Machine Color：as Customer Need
- Machine Size：About 9800*1700*1450mm
- Transport Package：Main Machine with Simple Plastic Film.
- Specification：size: about 9.8*1.7*1.45m
- Trademark：KXD
- Origin：China
- HS Code：8455221000
- Production Capacity：300 Sets,Year
Description
Main parameters of decorative board wall panel drywall roll forming machine1 Suitable to process Color steel plate, galvanized sheet,aluminum coils and etc. 2 Width of the feeding material as customer need 3 Roller station 18 rows 4 Thickness of feeding material 0.3-0.8mm 5 Productivity 10-15m/min 6 Rollers' material 45# steel, with hard chrome on surface 7 Diameter of shaft 80mm 8 Weight About 8.0 T 9 Size 9.8*1.7*1.45m 10 Voltage 380V 50Hz 3Phase 11 Main frame of machine 300mm H steel 12 Main motor power 11 kw 13 Hydraulic cutting power 5.5 kw 14 Side panel thickness 14-20mm
Our company information:

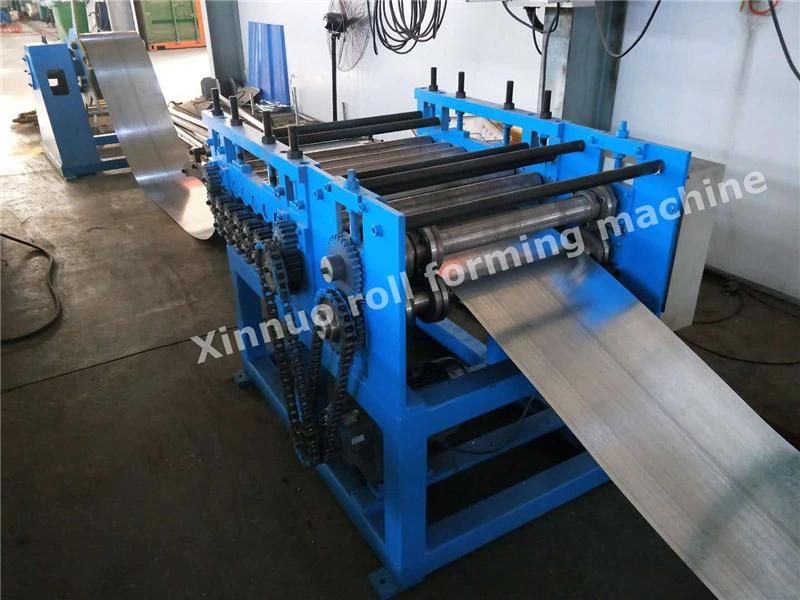

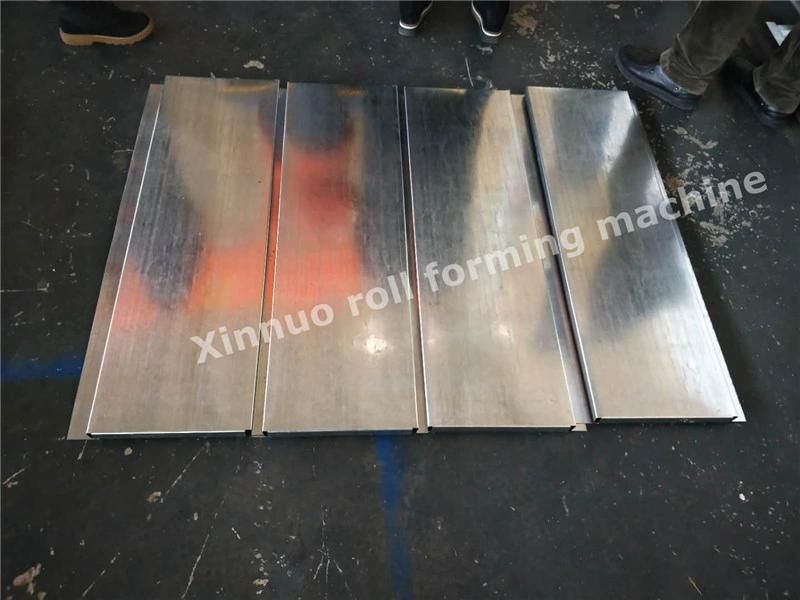

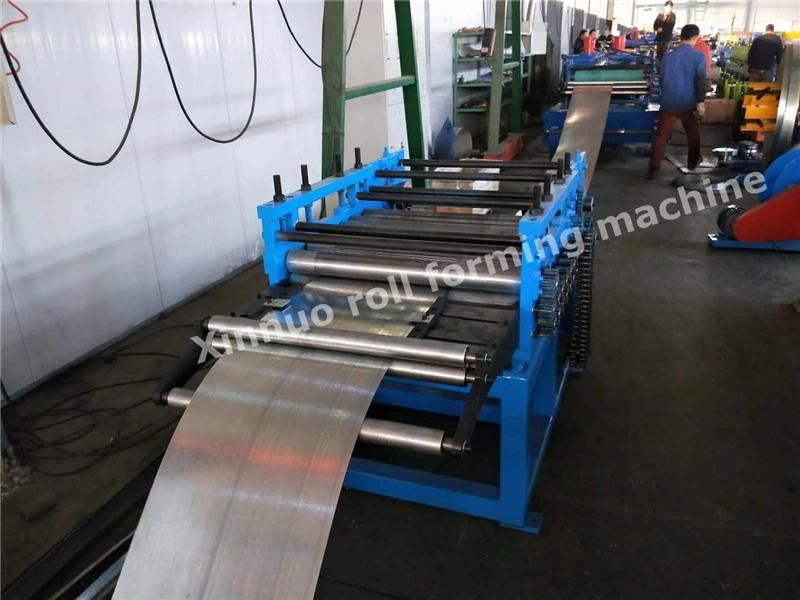

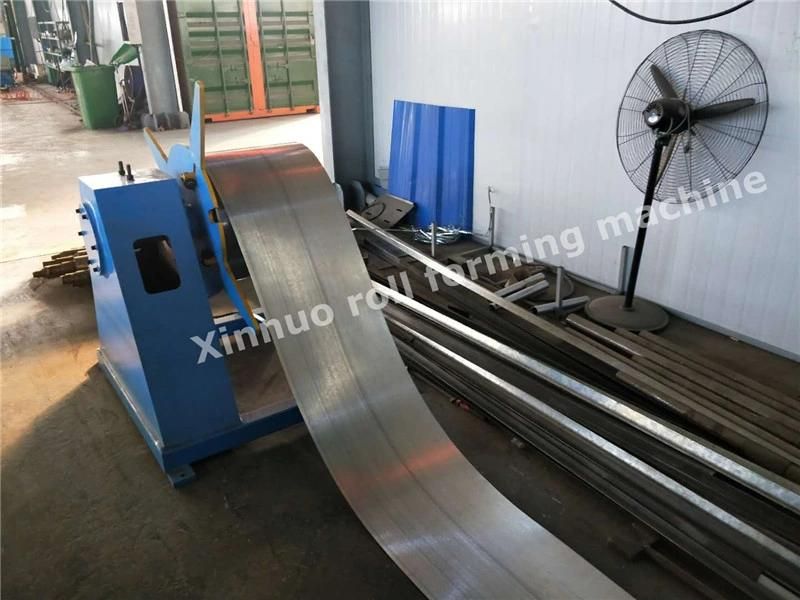

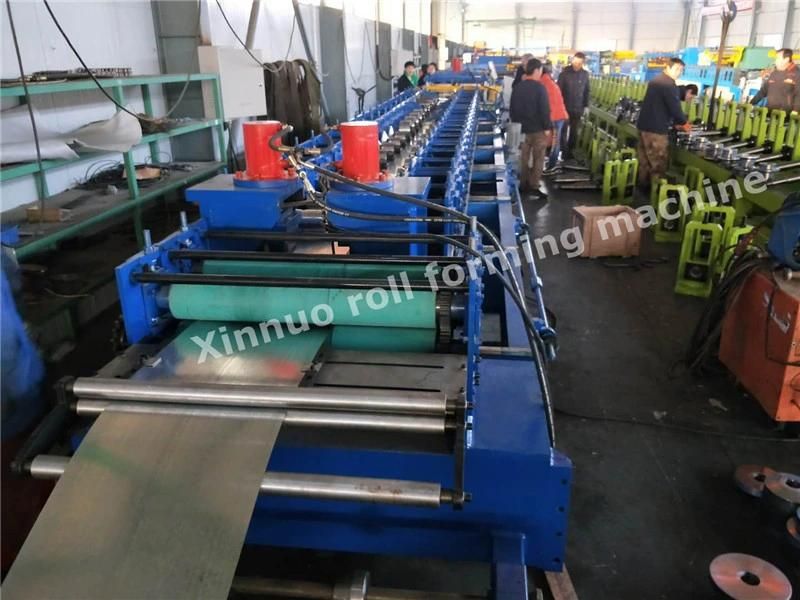

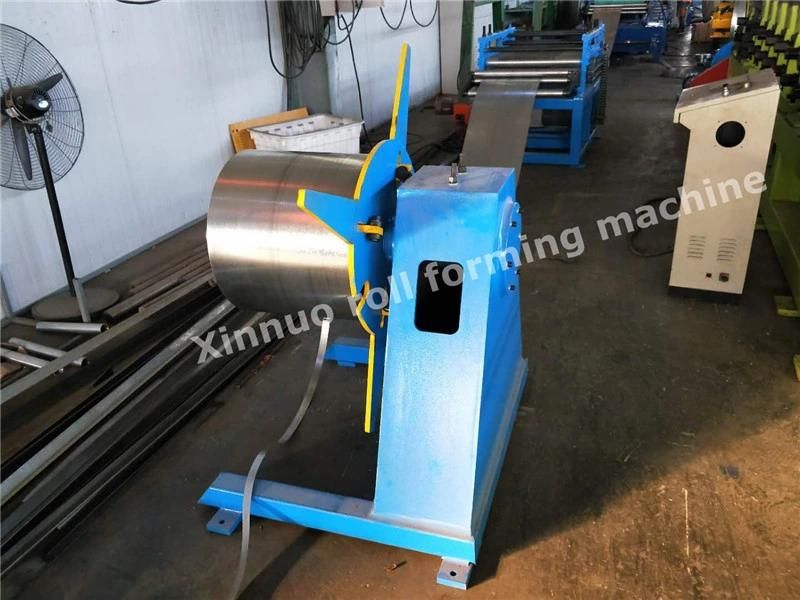

Pictures of decorative board wall panel drywall roll forming machine
