Single Axis Copy Router for Aluminum Window and Door
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Model：Lzf-300*100g
Base Info
- Model NO.：LZF-300*100G
- Input Voltage：380V 50Hz
- Input Power：1.1 Kw
- Air Pressure：0.4~0.6MPa
- Air Consumption：30L,Min
- Rotation Speed：11000r,Min
- Cutter Diameter：5mm , 8mm
- Copy Routing Range：300*100mm
- Overall Dimension：880*680*1460mm
- Transport Package：Plastic Film or Depends on Customers
- Specification：880*680*1460mm
- Trademark：Yuefeng
- Origin：Jinan Shandong, China
- HS Code：8477800000
- Production Capacity：40 Sets,Month
Description
Basic Info.
Model NO. LZF-300*100G Input Voltage 380V 50Hz Input Power 1.1 Kw Air Pressure 0.4~0.6MPa Air Consumption 30L/Min Rotation Speed 11000r/Min Cutter Diameter 5mm / 8mm Copy Routing Range 300*100mm Overall Dimension 880*680*1460mm Transport Package Plastic Film or Depends on Customers Specification 880*680*1460mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 40 Sets/MonthProduct Description

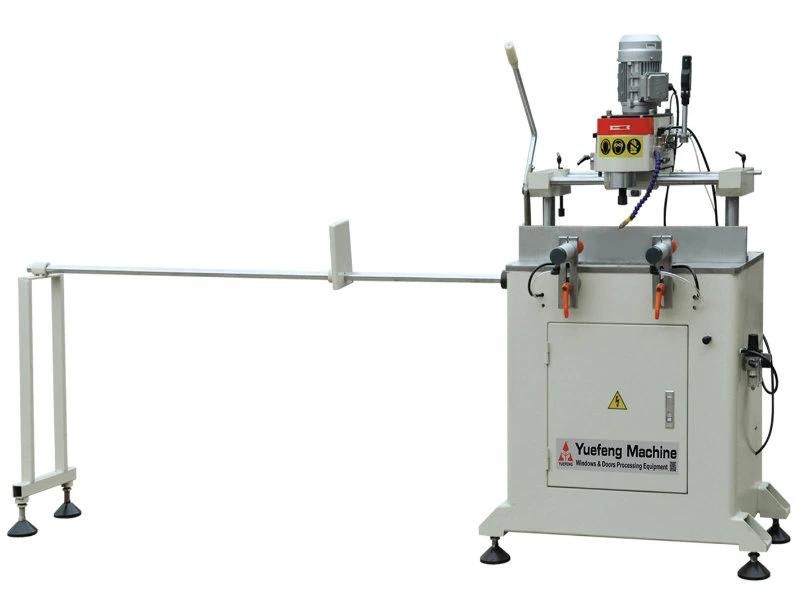

LZF-300×100G Single-axis Copy Router
Product Description
> It process various kinds of holes, grooves and water-slots for aluminum win-door.
> It adopts high-speed precision spindle, results good rigidity, stable and reliable.
> It has the auto-locking function when feeding, more portable operation.
> Rise speed by belt, results high speed milling and better quality.
> Changeable templates with different holes and grooves.
Technical Parameter:
| Model | LZF-300×100G |
| Input voltage | 380V 50Hz |
| Input power | 1.1 Kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 30L/min |
| Rotation speed | 11000r/min |
| Cutter diameter | φ5mm / φ8mm |
| Copy routing range | 300×100mm |
| Overall dimension | 880×680×1460mm |
