CNC Vertical Four Point Corner Crimping Machine for Aluminum Window Making

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Model:Lm4-CNC-1800*3200A

Base Info

  • Model NO.:LM4-CNC-1800*3200A
  • Input Voltage:380V 50Hz
  • Input Power:7.5kw
  • Hydraulic Pressure:15MPa
  • Air Pressure:0.5~0.8MPa
  • Air Consumption:0.45 L,Time
  • Oil Capacity:40L
  • Profile Width:<100mm
  • Max. Dimension:1800*3200mm
  • Min. Dimension:500*500mm
  • Transport Package:Plastic Film or Depends on Customers
  • Specification:4500*2000*2600mm
  • Trademark:Yuefeng
  • Origin:Jinan Shandong, China
  • HS Code:8477800000
  • Production Capacity:10 Sets,Month

Description

Basic Info.

Model NO. LM4-CNC-1800*3200A Input Voltage 380V 50Hz Input Power 7.5kw Hydraulic Pressure 15MPa Air Pressure 0.5~0.8MPa Air Consumption 0.45 L/Time Oil Capacity 40L Profile Width <100mm Max. Dimension 1800*3200mm Min. Dimension 500*500mm Transport Package Plastic Film or Depends on Customers Specification 4500*2000*2600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 10 Sets/Month

Product Description

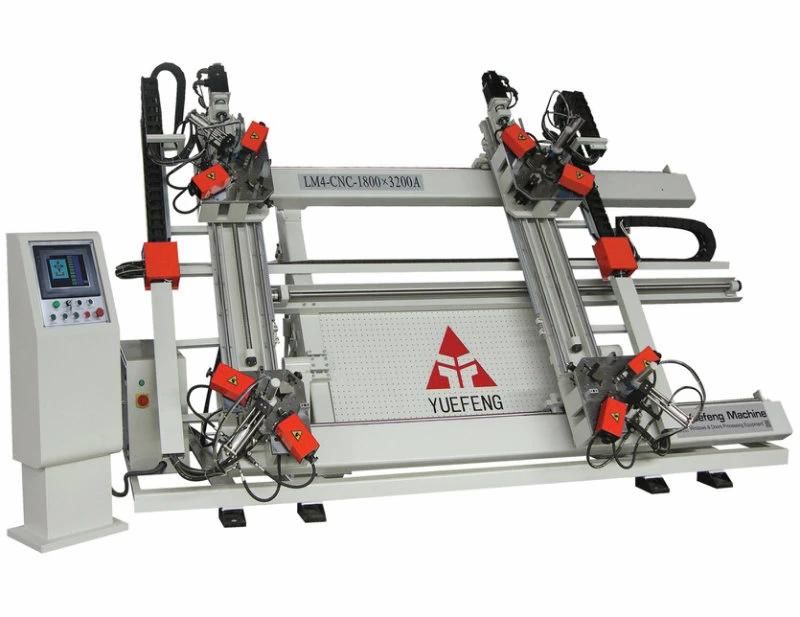

LM4-CNC-1800×3200A
CNC Vertical Four-point Corner Crimping Machine
CNC Vertical Four Point Corner Crimping Machine for Aluminum Window Making
Product Description

> Used for corner punching and riveting combination, four corners connecting at one time punching is available.

> Clamping device can move front and back automatically, easily operation.

> Wide profile processing range due to convenient corner combining cylinder setting.

> Helical pitch ball screw controls head feeding, results high accuracy.

> OMRON CNC system adopted , which include PLC, touched screen, servomotor, and
servodriver, photo electrical switch, and photo electrical cells etc. Complete OMERON unit  results high accuracy.


Technical Parameter:

ModelLM4-CNC-1800×3200A
Input voltage380V  50Hz
Input power7.5Kw
Hydraulic pressure15Mpa
Air pressure0.5~0.8MPa
Air consumption0.45 L/TIME
Oil capacity40L
Profile width≤100mm
Max. dimension1800×3200mm
Min. Dimension500×500mm
Overall dimension4500×2000×2600mm

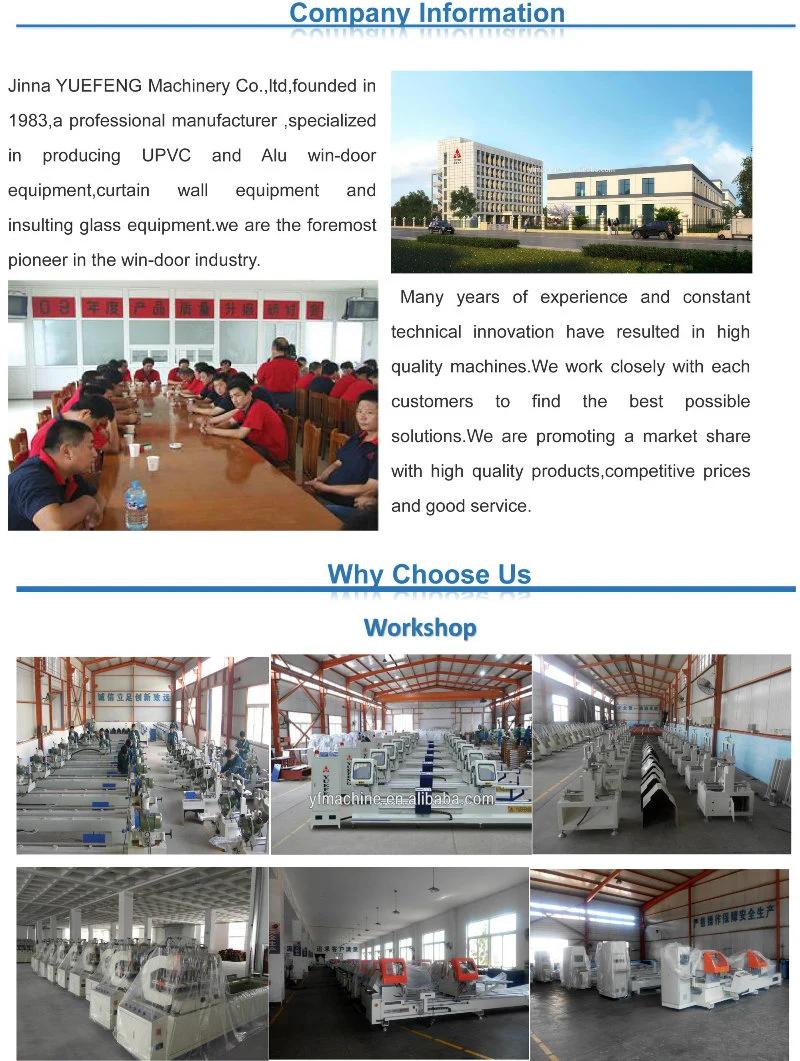

Why Choose Us
