• Model NO.：GEIT
• Usage：Roof, Wall
• Transmission Method：Chains
• Name：Automatic Long Span Roof Sheet Forming Machine Tra
• Use：Roof Sheet and Wall Panel
• Voltage：380V 50Hz 3phase
• Motor：5.5kw
• Basic Frame：350h Steel
• Machine Structure：Middle Plate
• Shaft Material：45# Steel
• Shaft Diameter：80mm
• Roller Material：45# Steel Chromed
• PLC Brand：Delta
• Screen：Touch Screen
• Dimenssion：9500*1450*1500
• Raw Material：PPGI,PPGL,Gi,Gl
• Raw Material Thickness：0.3-0.8mm
• Blade Material：Gcr12 Quenched
• Transport Package：Standard Packing
• Specification：9500*1450*1500
• Trademark：ZTRFM
• Origin：Botou, Hebei, China
• HS Code：8474801
• Production Capacity：300 Sets

Basic Info.

Model NO. GEIT Usage Roof, Wall Transmission Method Chains Name Automatic Long Span Roof Sheet Forming Machine Tra Use Roof Sheet and Wall Panel Voltage 380V 50Hz 3phase Motor 5.5kw Basic Frame 350h Steel Machine Structure Middle Plate Shaft Material 45# Steel Shaft Diameter 80mm Roller Material 45# Steel Chromed PLC Brand Delta Screen Touch Screen Dimenssion 9500*1450*1500 Raw Material PPGI,PPGL,Gi,Gl Raw Material Thickness 0.3-0.8mm Blade Material Gcr12 Quenched Transport Package Standard Packing Specification 9500*1450*1500 Trademark ZTRFM Origin Botou, Hebei, China HS Code 8474801 Production Capacity 300 Sets

Product Description

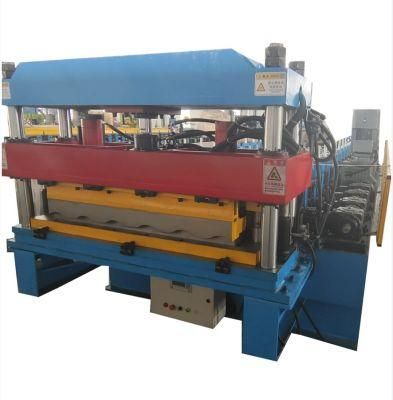

High Speed Drive with Gear Box Glazed Tile Step Press Full Automatic Roof Tile Rolling Machine

The archaistic tile sheet is rolled and pressed by modular glazed roll forming machine. it enjoys good appearance,primitive simiplicity and elegance,unique style,noblest grade,and etc. It is widely used in garden style factories,scenic resorts,pavilions,hotels, villas,exhibition halls,country clubs,and so on for outdoor decorations.

Regular Profile drawing
there are many kinds of tile type for glazed tiles, please inform the drawing when inquiry to us. Our engineer will design the machine for you.

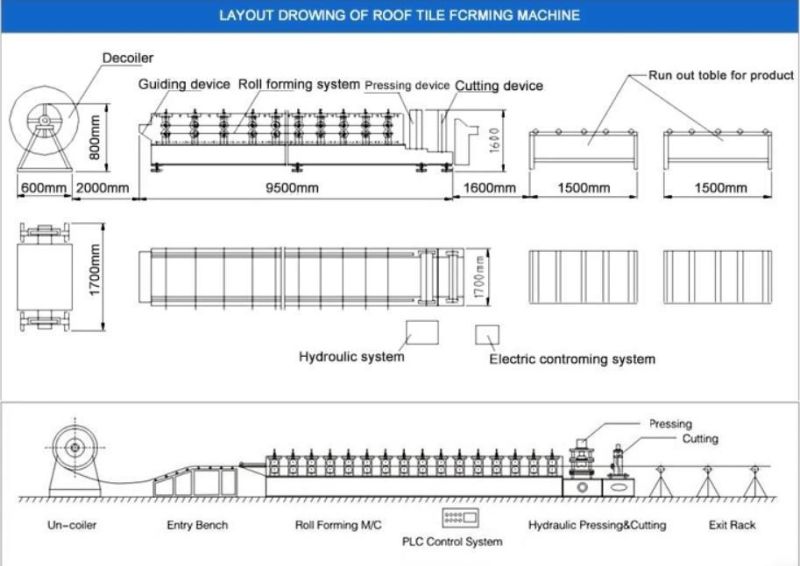

Working flow:

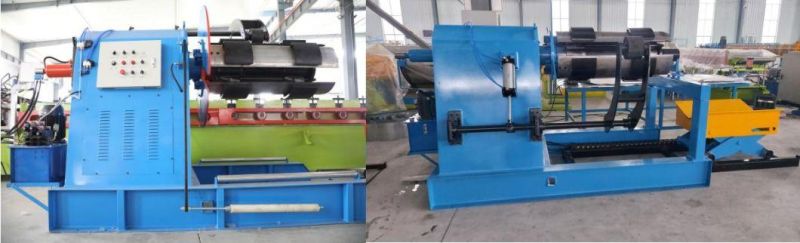

1.hydraulic decoiler
   inner diameter:450mm to 550mm
   outer diameter:1500mm
   width:1250mm max

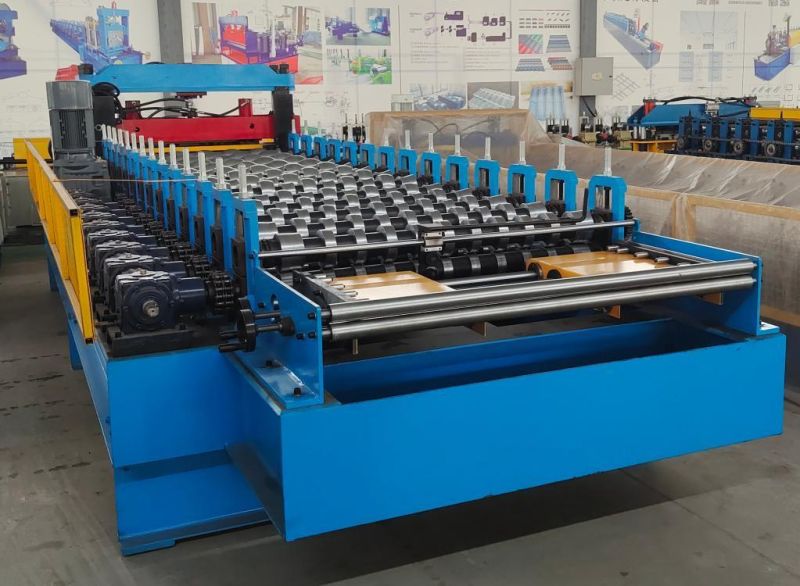

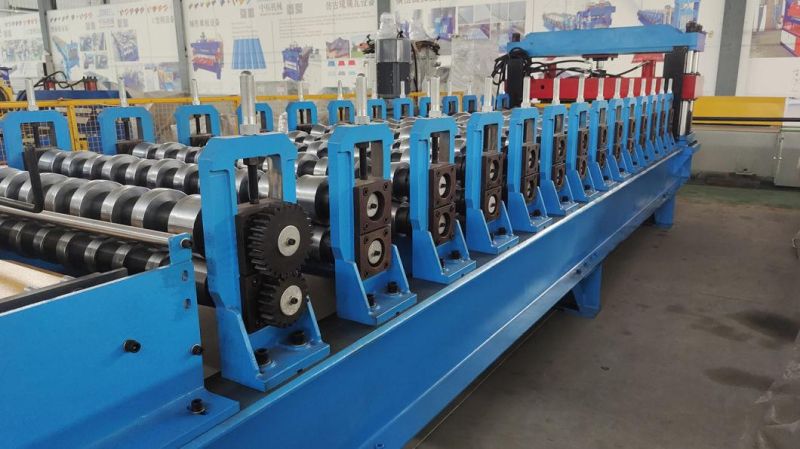

2. Main roll forming machine

feeding device: set up turnable rubber covered the roller on the bottom of the device;
                          the width can adjust through the hand wheels.
basic frame: 350H steel welded
machine structure: middle plate welded
roller station: 22 stations
roller material: 45# steel with quenched treatment and hard chroming
shaft diameter: 80mm,solid
shaft material: 45# steel with tempering treatment
motor power: 5.5 kw
speed: 0-20m/min
transmission: by double chains
voltage: 380V,50HZ,3Phase

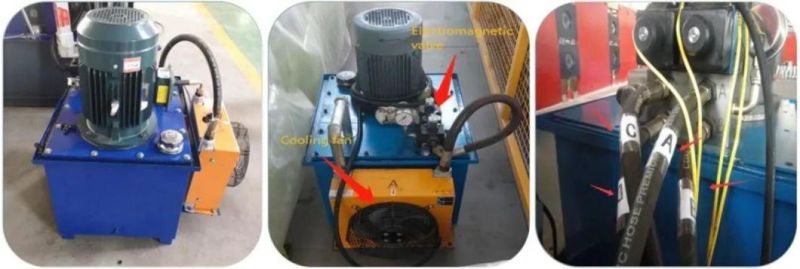

3.Cutting system
  blade material: Cr12,with quenched treatment
  motor power: 4 kw
  cutting tolerance: +/-1 mm
  cooling system: With fan cooling
  cutting type: Hydraulic cutting
  feature: Low noise and high performance

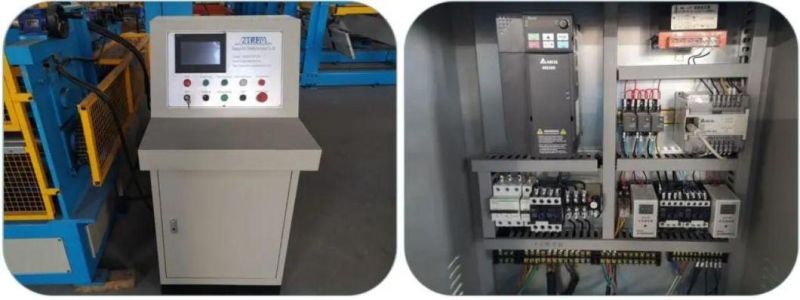

4.PLC control system

PLC brand: Delta from Taiwan
Frequency converter brand: Delta from Taiwan
Encoder: Omron
Function: Automatic control the length,quantity and batch

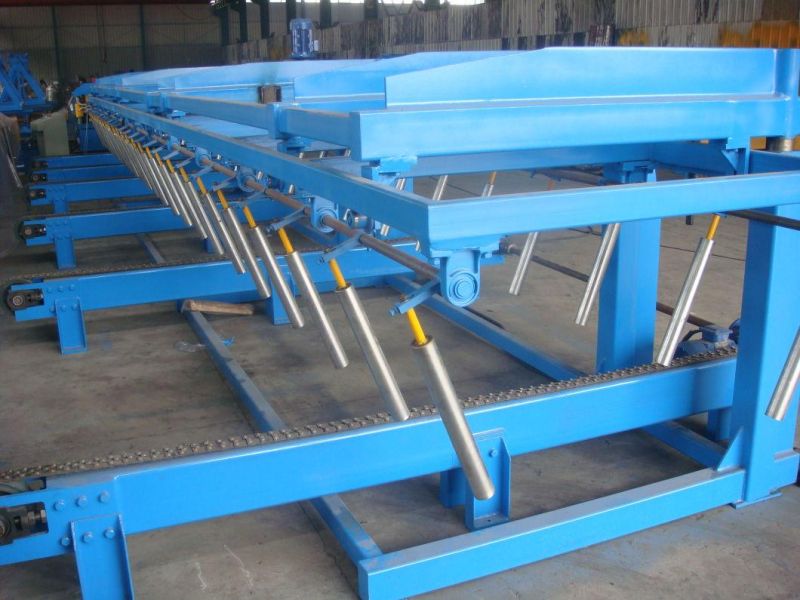

5.Runout table automatic stacker
Feedback from Customers

FAQ:
Q1. Can you manufacture the roll forming machine according to my profile drawing or picture of finished product ?
A: Yes. Our rich experienced technical team can draft the accurate profile drawing, provide the most suitable technical solution for your required roll forming machine.
Q2. How can we be assured that you will deliver us quality machine with spare parts ?
A: 1. Customers can come to our factory, or send the technical people to our factory for checking the quality.
     2. We can send the technicians to the buyer's factory for the installation of the machine.
Q3. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 45 workdays for delivery.
Q4. Do you have after-sales support?
A: Yes, we are happy to provide advice and we also have skilled technicians available across the world.
Q5. Do you sell only standard machines?
A: No, most of our machines are customized according to customers specifications, also adopt top brand components.
Q6. What will you do if the machine is broken?
A: We provide 1 year free warranty and free technical support for the whole life of any machine. If the broken parts can't repair, we can send the new parts replace the broken parts freely, but you need pay the express cost by yourself. If it is beyond the warranty period, we can negotiate to solve the problem, and we supply the technical support for the whole life of the roll forming machine.
Q7. Can you be responsible for transport?
A: Yes, please tell me the destination port or address. we have rich experience in transporting.
Q8. How to visit your company?
A:1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
    2)Fly to Tianjin airport, By high speed train From Tianjin to Cangzhou Xi (0.5 hour).
    3) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
