• Model NO.：4-24
• Overall Power：9.5kw
• Vibration：35kn
• Capacity：2880(Per Day)
• Virbration Frequency：2899(R,Min)
• Pallet Size：850X450mm
• Transport Package：Nude or Wooden Package
• Specification：1350x1460x1800mm
• Trademark：Shiyue
• Origin：Shandong, China
• HS Code：8501109990
• Production Capacity：2880PCS

Paremeter

              Overall dimension

              2060*1730*2580mm

              Main vibration form

              Platform vibration

              Vibration frequency

              4200r/min

              Pallet size

              880*480*38mm

              Molding cycle

              26s

              Over power

              14.25kw

              Exciting power

              35.5KN

              Rated pressure

              15Mpa

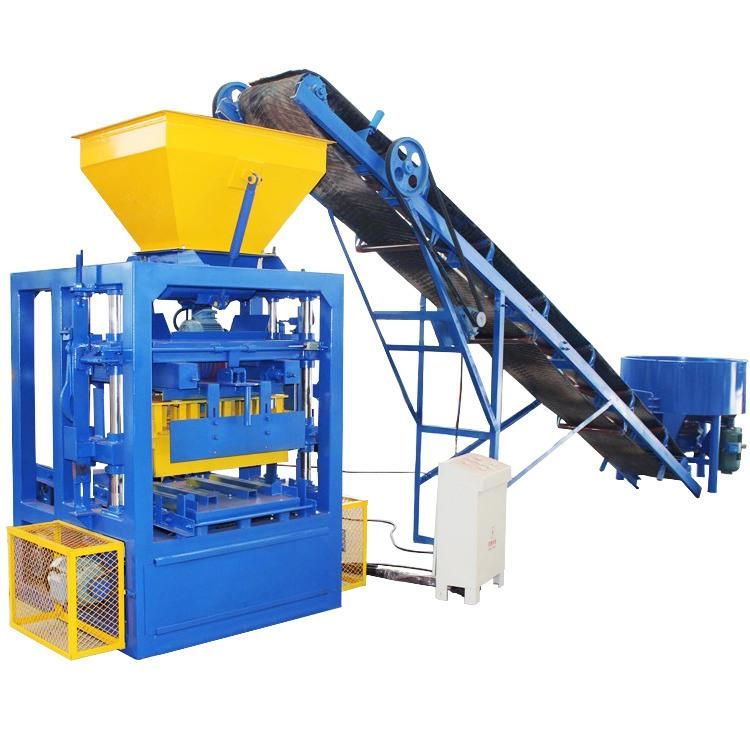

 The machine photo show

Frequency Converting Control Technology
All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

Vibration System
Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.

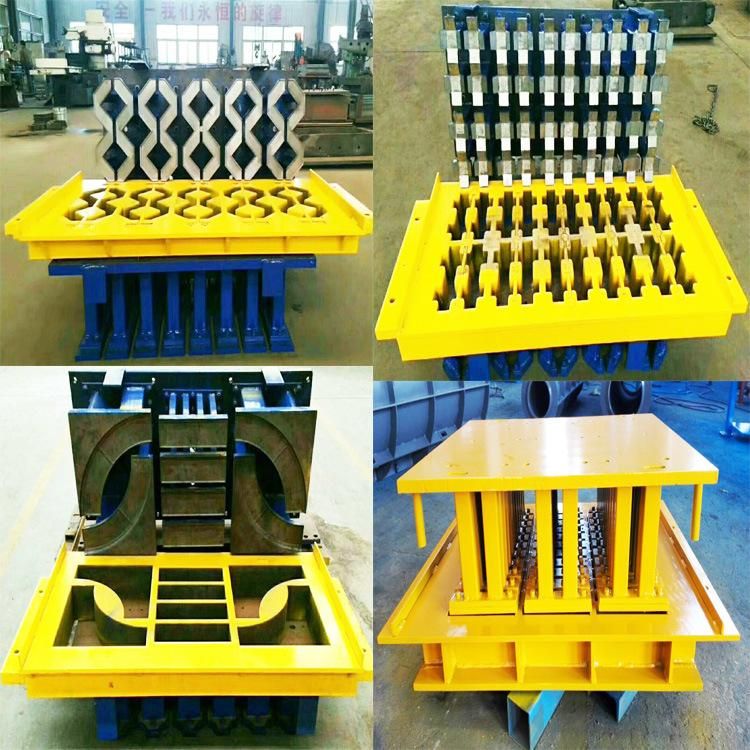

BLOCK MOULD

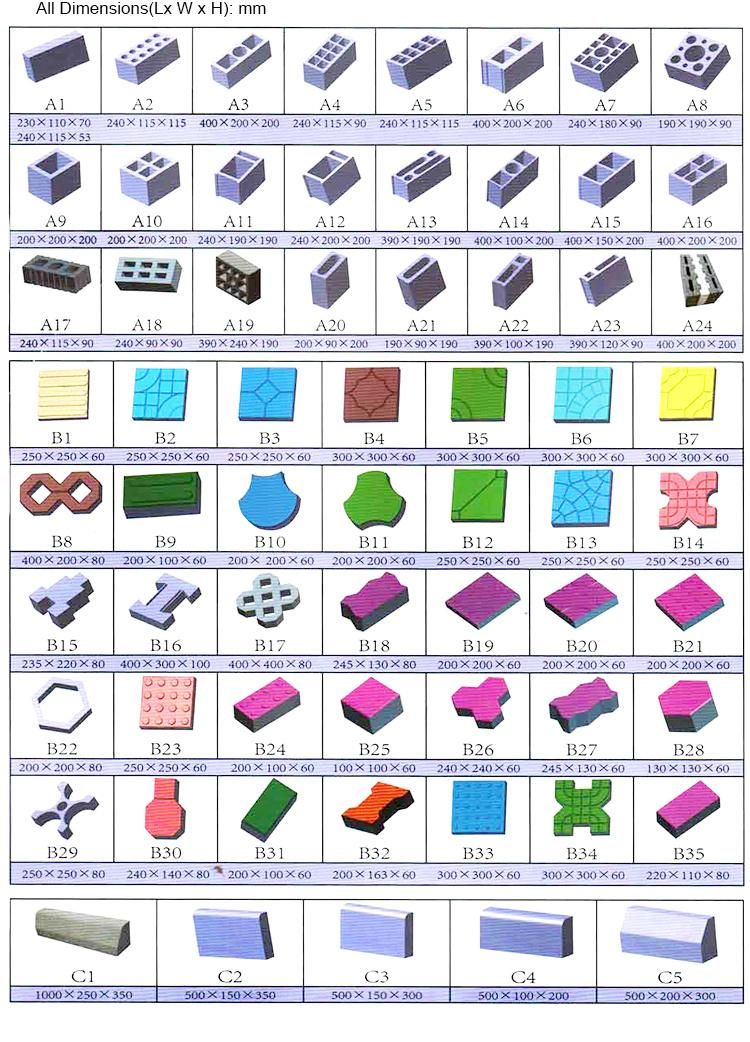

 Block sample

Q1: What is the Warranty for the machine?

A1:  For the machine,we have 1 years warranty(except the wearing part ).If any quality

problems on our side occured in this period ,we will take on the shipping cost and replacement.

Q2: What kinds of payment methods can be accept?

A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance

before delivery

Q3: Who will pay the delivery cost?

A3: Because block machine need to be delivery by sea or road,so customers will in charge of the

delivery cost.

Q4: What's the motor voltage?

A4:Our local voltage is 380v, 3phase, 50HZ, motor voltage could be customized to fit your

local voltage

Q5: Do you have Operation  Instruction Manual

A5: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
