• Model NO.：door roll forming machine
• Drive：Hydraulic
• Method：Door Roll Forming Machine
• Effective：Easy Operation
• Usage：Door Frame
• Power：3kw
• Forming Station：13 Stations
• PLC：Delta Brand
• Hydraulic Motow：3kw
• Type：Steel
• Processing：Steel
• Transport Package：No
• Specification：CE, SGS
• Trademark：DIXIN
• Origin：Cangzhou City, Hebei Province, China
• HS Code：84552210
• Production Capacity：10sets,Per Month

Basic Info.

Model NO. door roll forming machine Drive Hydraulic Method Door Roll Forming Machine Effective Easy Operation Usage Door Frame Power 3kw Forming Station 13 Stations PLC Delta Brand Hydraulic Motow 3kw Type Steel Processing Steel Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 10sets/Per Month

Product Description

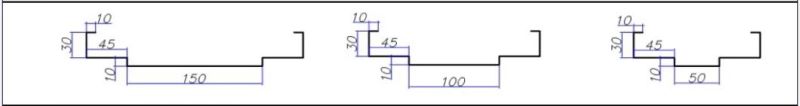

 Export to Zambia Popular Type Door Frame Automatic Roll Forming MachinePanel drawing for your reference
We also can design and produce machines according to customer's requirement.





1. Technique parameters of Metal sheet door rolling machine from reliable seller
(1) Processing material: Aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 3 kw
(4) Pump power: 3 kw
(5) Shaft diameter: 65mm

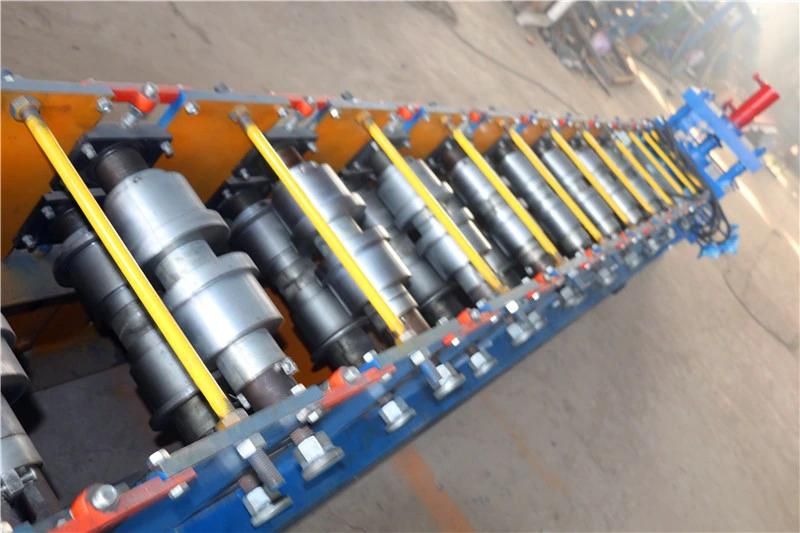

(6) Forming steps: 13 steps
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: steel frame
(9) Medium plate thickness: 12mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 50Hz
(12) 0veral sized: 4500mm*1000mm*1500mm
(13)Total weight: 1.5 tons

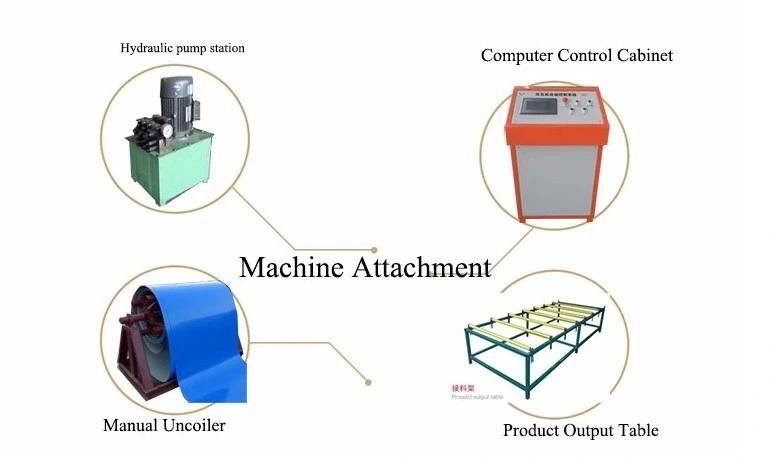

2. Specific description
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station

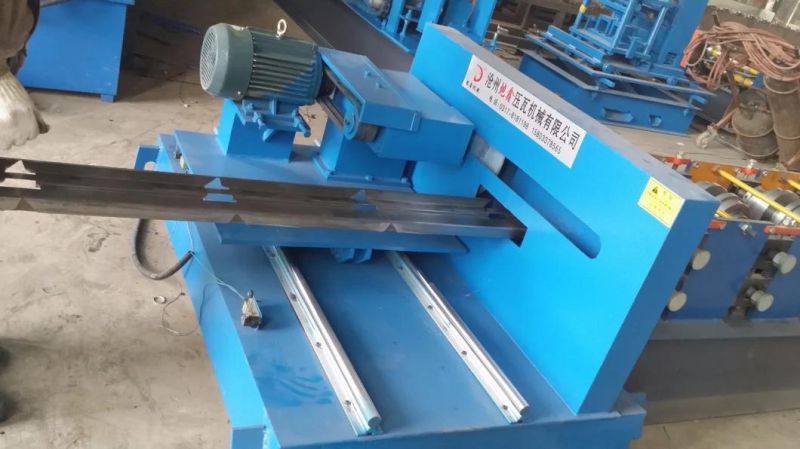

It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

(5) Spare parts


3. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

4. Warranty
24 months, and lifelong technical support service

5. Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.




 Glad to know you are in the market of roll forming machines.Our new factory have 20 years' experience, ISO, CE certificated, we always keep superior quality and competitive offers for customers.Our machines are sold to the USA market, and feedback very well.Our main products cover corrugated tile roll forming machine, trapezoidal panel roll forming machine,glazed roofing roll forming machine, C purlin roll forming machine, roll shutter door roll forming machine and so on.We provide you 24-hour online service, welcome to contact.
Welcome to our company: Cangzhou Dixin Roll Forming Machine Co.,Ltd.

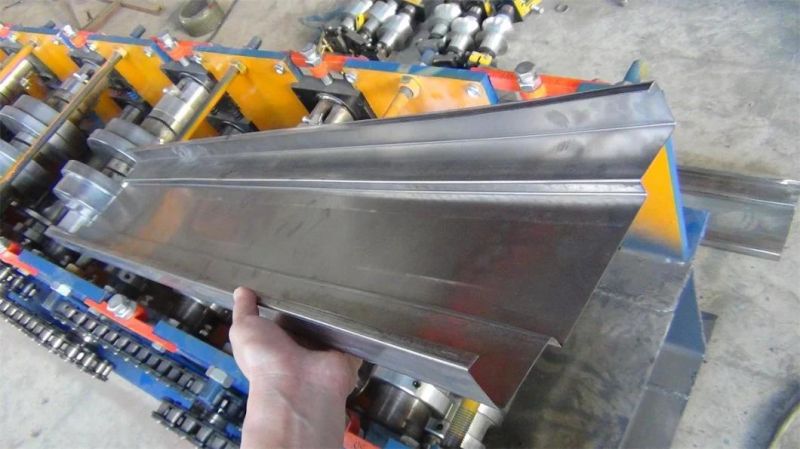

door frame automatic roll forming machine
