• Model NO.：LMB-A-120
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：400~4200mm(400~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90° 45° 67.5°
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：φ500×4.4×φ30×z120
• Overall Dimension：5500(6300)×1700×1600mm
• Transport Package：Plastic Cover or Plywood Cases
• Trademark：YUEFENG
• Origin：Shandong
• HS Code：847780
• Production Capacity：100sets,Month

Basic Info.

Model NO. LMB-A-120 Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/Month

Product Description

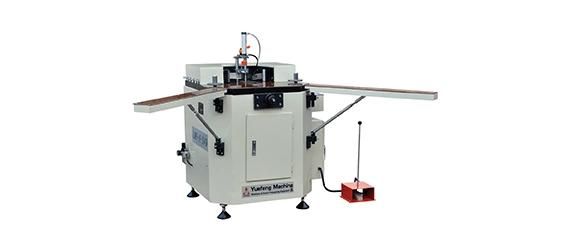

Aluminum window corner crimping machine
- Used for 90°corner combining.
- Adjustable corner combining tool that achieve multi-position corner combining.
- Inner locator can sit below the worktable, easy operation.
- Hydraulic system supplied large punching and riveting force.
- Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.
- It has features of easy operation, reliable performance and convenient maintenance.

Model	LMB-A-120
Input voltage	380V 50Hz
Input power	2.2kw
Air pressure	0.4~0.6MPa
Air consumption	20L/Time
Oil capacity	20L
Profile width	≤120mm
Combining cylinder movement	98mm
Locator adjustment range	80mm
Overall dimension	1300×1200×1300mm
