• Model NO.：CLJB2B-CNC-500*6000
• Power Supply：380V,50Hz
• Air Pressure：0.5~0.8MPa
• Cutting Motor Power：2*2.2kw
• Motor Rotary Speed：2800r,Min
• Air Consumption：60L,Min
• Blade Specification：500*30*4.4 Z=120
• Cutter Feeding Speed：0~3m,Min
• Cutter Moving Speed Range：0~20m,Min
• Cutting Length：360-4200mm
• Cutting Width*Height：150*200mm
• Cutting Angle：90 45 Degree
• Overall Dimension：5900*1750*1950mm
• Weight：About 1850kg
• Usage：Aluminum Window Making Machine
• Transport Package：Wooden Box
• Specification：CNC aluminum double head cutting saw
• Trademark：TRUEPRO
• Origin：China
• HS Code：8461500090
• Production Capacity：500sets,Year

Power supply380V/50HzCutting motor power2*2.2kW 2800r/minServomotor power1.5Kw 4050r/minAir pressure0.5~0.8MPaAir consumption60L/minBlade specification500×30*4.4 Z=120Cutter feeding speed0~3m/minCutter moving speed range0~20m/minCutting lengthmax 4200mm min 360mmCutting width*heightmax 150mm×200mmCutting angle90 45 degreeOverall dimension 5900*1750*1950mmWeight about 1850kg

Machine Configuration:

Saw blade
 WagenSolenoid valve
 Germany FESTOCylinder

JPC(FESTO Joint Venture Brand)

Motor

Simens

Air Filter Device

STNC

Electrical Button and Switcher

Schneider

Linear Bearing System

HIWIN

Magnetic Grid

SIKO

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

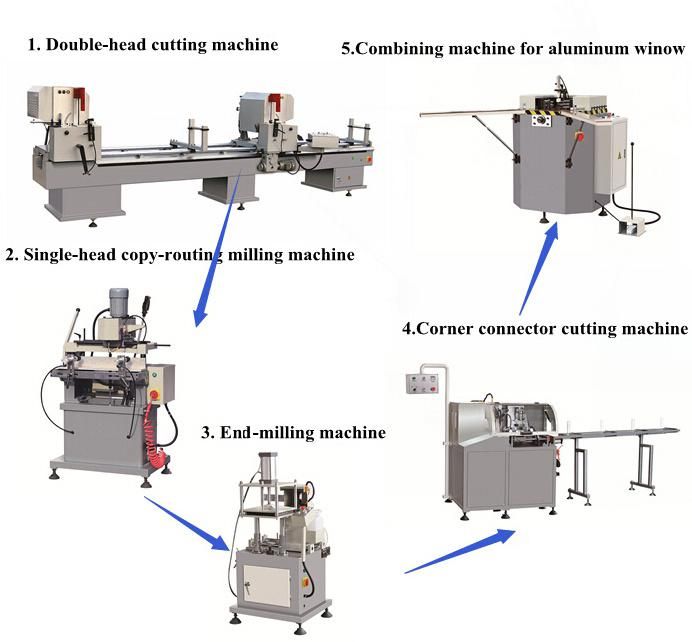

4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
