• Model NO.：T-12
• Application：Industry
• Core Components：Engine, Bearing, Motor
• Key Selling Points：High-Accuracy
• Size：2550*700*1100 mm
• Color：Customer′s Requirement
• Material Thickness：0.5-1.2 mm
• Power：3kw
• Voltage：380V 50Hz 3phase,Customized
• Feature：Energy Saving, High Efficiency, Save Time etc
• Raw Material：Carbon Steel
• Process Material：Galvanized,Stainless
• Transport Package：Standard Package
• Specification：840kg
• Trademark：sipairui
• Origin：China
• HS Code：8455229090
• Production Capacity：500 Pieces ,Year

84032550*700*1100     T-15        0.8~1.5Product Description:

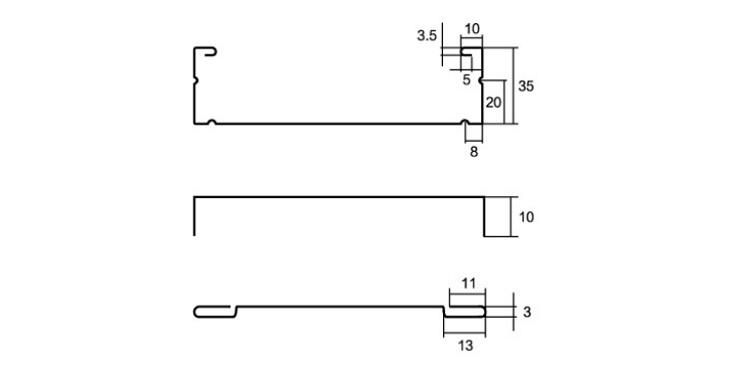

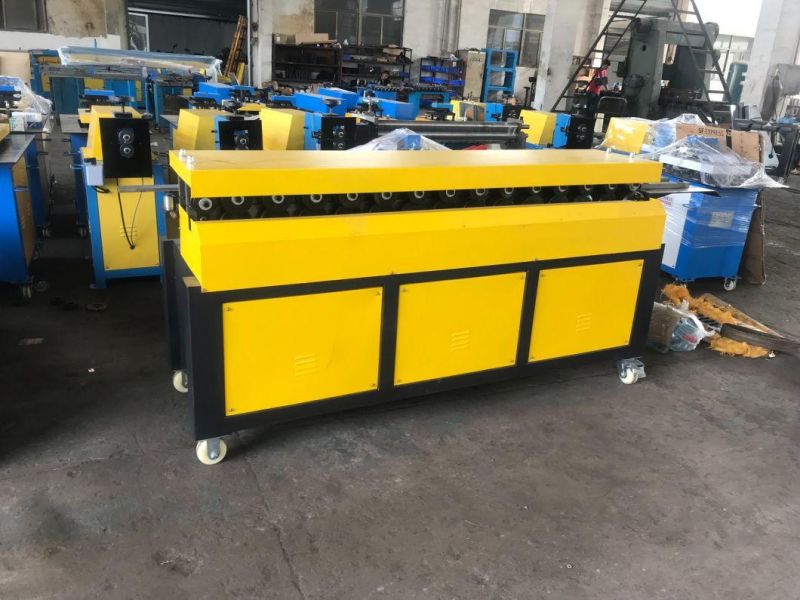

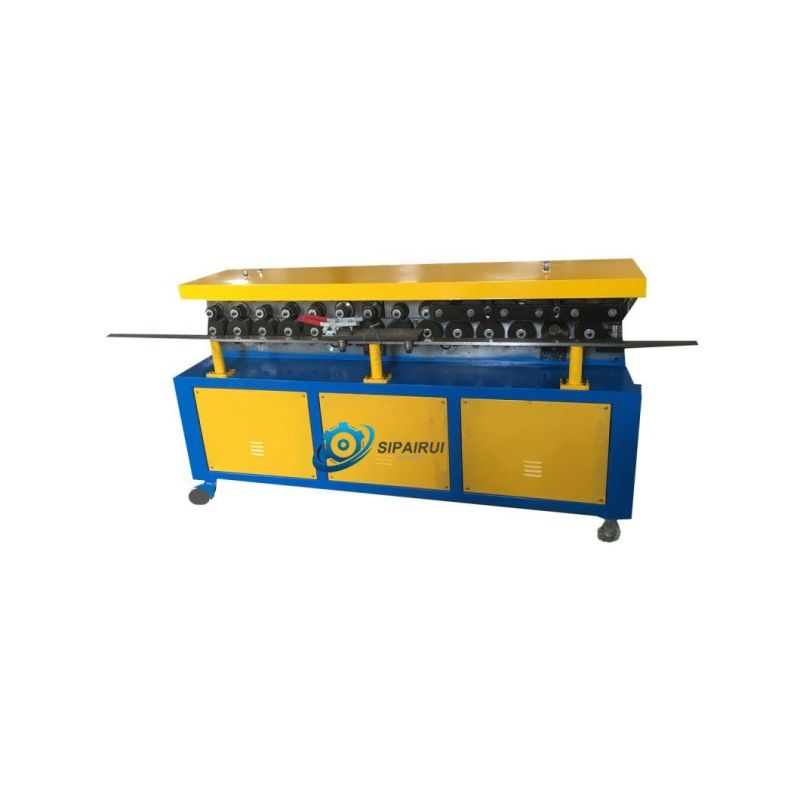

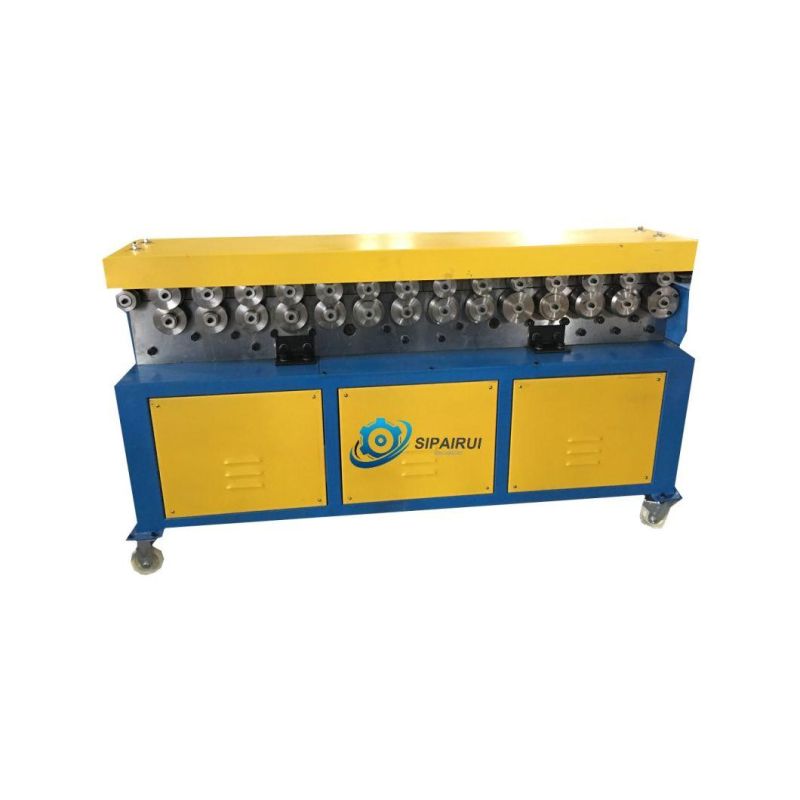

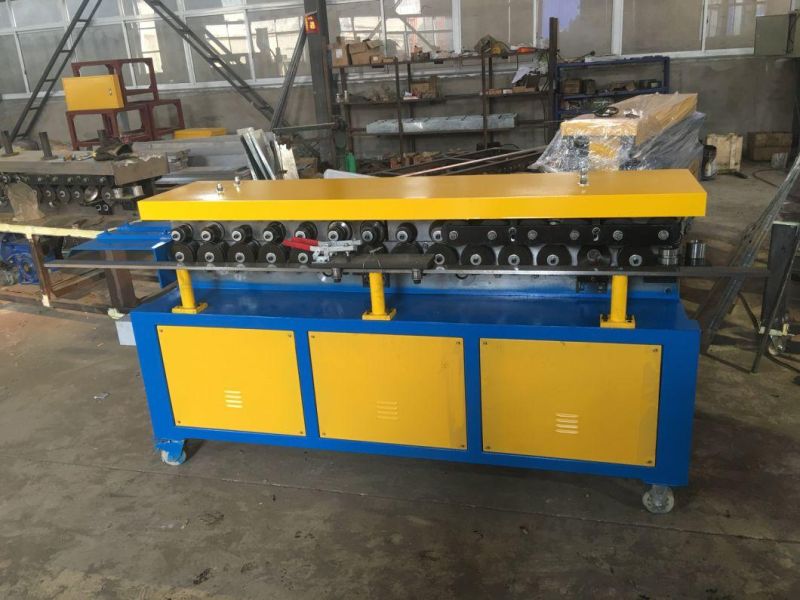

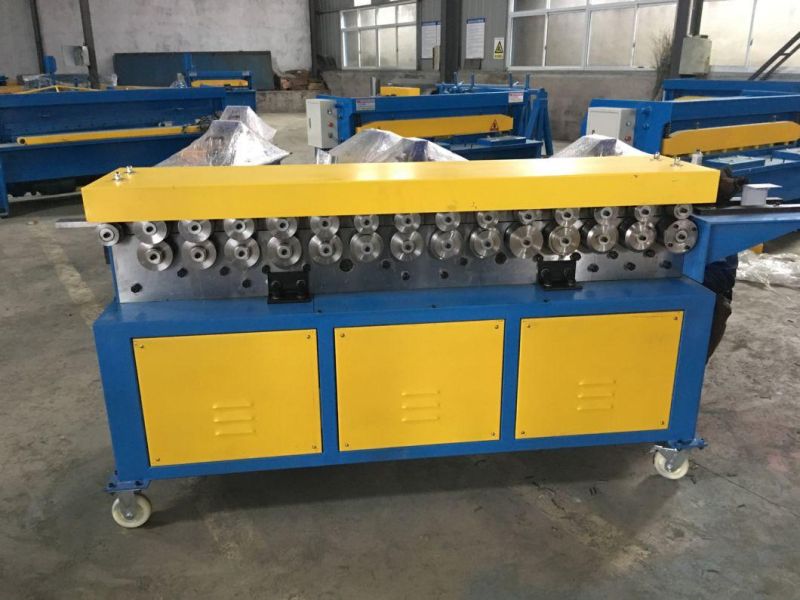

TDF flange forming machine has two sides, one side is to make flange shape, another side is to make clip shape. Besides, we also can customize both sides to make flange shape. Flange height usually is 35±0.5mm, but 20,25,30mm also can be customized. This machine is very easy operated on site and in factory. Standard machine T-12 can make max 1.2mm thickness galvanized sheet and max 0.7mm stainless steel, T-15 can make max 1.5mm thickness galvanized sheet and max 1.0mm stainless steel. Usually it's enough for air duct flange making, but if you have any other requirement, we have professional engineer who can help you.
perfoemance features:
TDF flange machine can be divided into three types according to the working requirements: single type t-12 and t-15, duplex type 2-t-12 single type machine like t-12 and t-15 canform flange edge at one side and crispening edge at the other side; duplex type like 2-t-12 can form flange edge at both sides simultaneously to improve efficiency and save time. Additionally, duplex type can add flange edge or crispening edge outside at either side.  Our company would specially introduce high-strength rolling reels made of gcr 15, a kind of steel which prolongs the machine life by more than 5 times and outputs stainless steel tdf flange.

Main Technical Parameters:

1.High quality, easy and convenient operation
2.Greatly reduce the production cost
3.To ensure the high quality of the product
