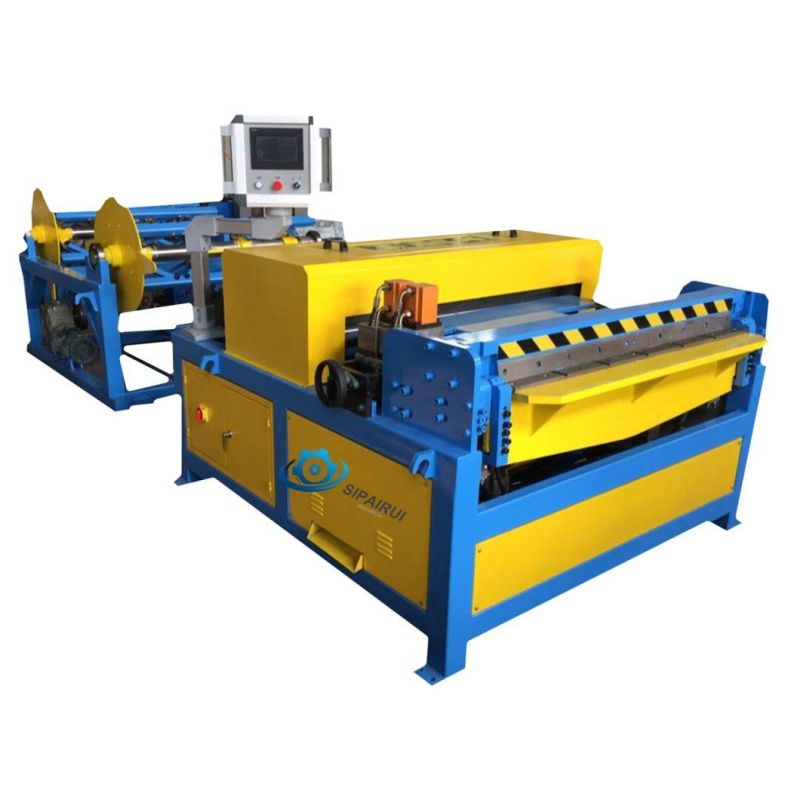

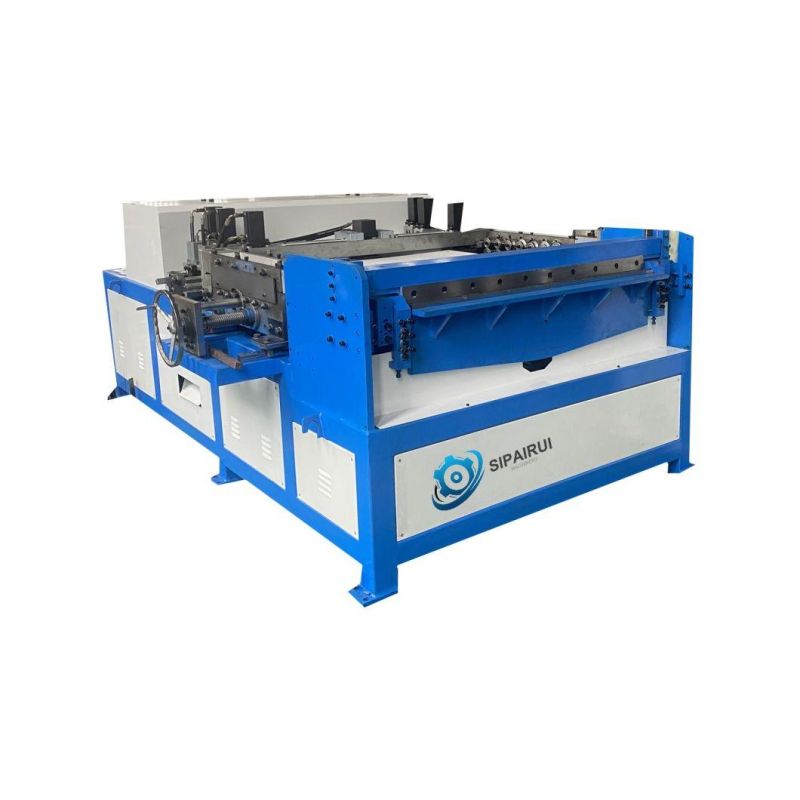

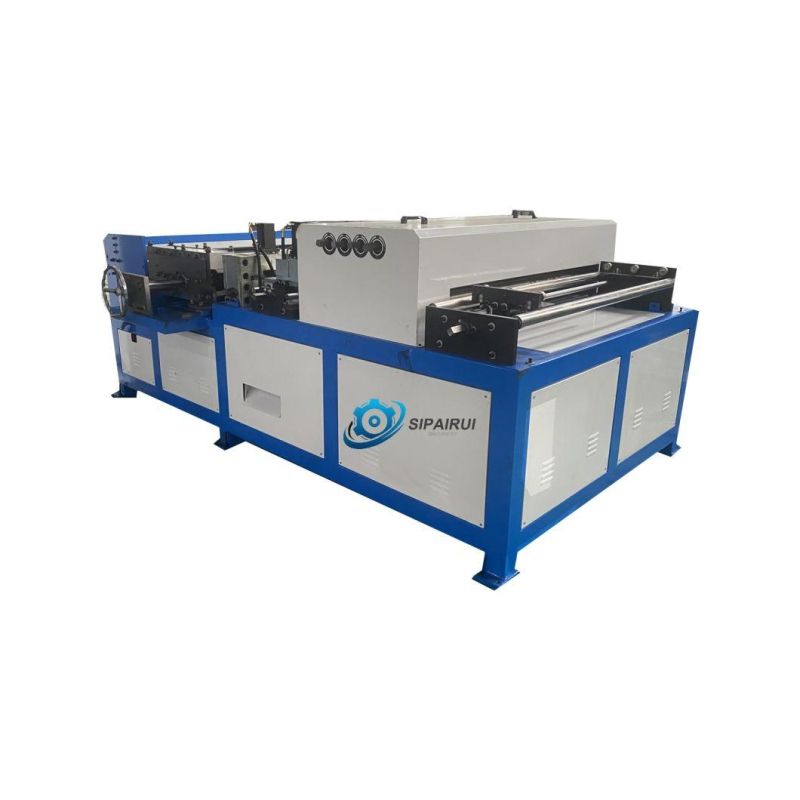

HVAC Auto Duct Line Production Automatic Duct Line 3 Duct Making Machine
Maanshan SPR Machine Co., Ltd.- After-sales Service：Online Support, Free Spare Parts, Field Installati
- Automatic Grade：Full-Automatic
- Warranty：1 Year
- Core Components：PLC, Engine, Bearing, Motor
- Usage：Duct Making
- Max Working Speed：15mm
Base Info
- Model NO.：ADL-3-1300
- Sheet Thickness (mm)：0.5-1.2mm
- Function：Duct Work
- Coiler Max Weight：7t
- Dimension(L*W*H)：5500*1950*1350,5500*2150*1350mm
- Power：7.5kwd
- Raw Material：Aluminium Alloy
- Transport Package：Wooden Box or Container
- Specification：3600kg
- Trademark：sipairui
- Origin：China
- HS Code：8462219000
- Production Capacity：200 Pieces ,Year
Description
Weight (T)
Duct production line 3 can drive blanking for duct. Meantime, it's very suitable for diversified production like TDF/angle steel/inserted flange forming; the angle steel flange and inserted flange can be bent into a square-shaped pipe automatically.
Advantage of Products:
1. The latest design can resolve the problems like getting struck, too many repairs form roll-shearing displacements lock machine.
2. The three-line bending function can crimp narrow edges and stably process 0.5-1.2mm galvanized sheet to avoid wasting.
3.Mechanical arm clutching, locating and transferring platform.
4. Displacement lock machine.
Performance Features:
1.All the rolling reels are made of bearing steel so that the lifetime prolongs by more than 5 times.
2. Under the material-saving mode of CNC system, machine can withdraw material automatically after finishing tasks.
3.With production memory functions, the production orders can be tracked and checked.
DETAIL IMAGES

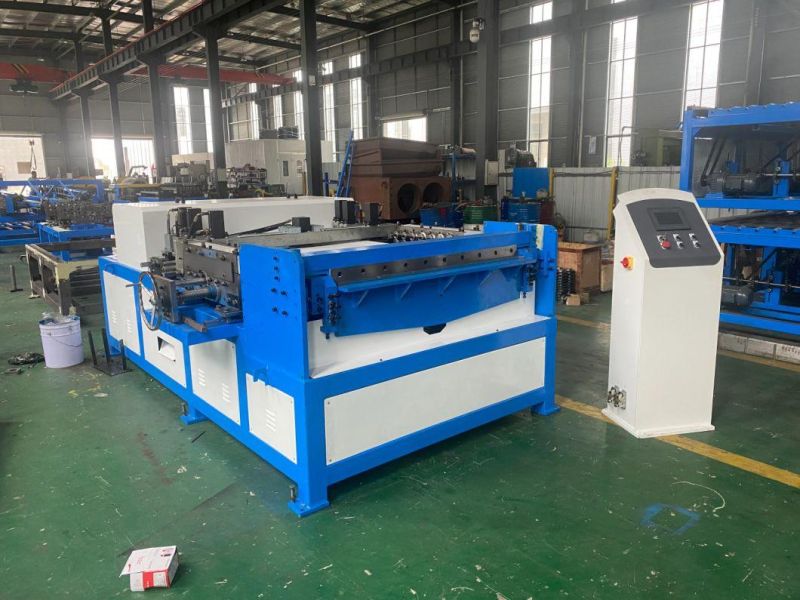

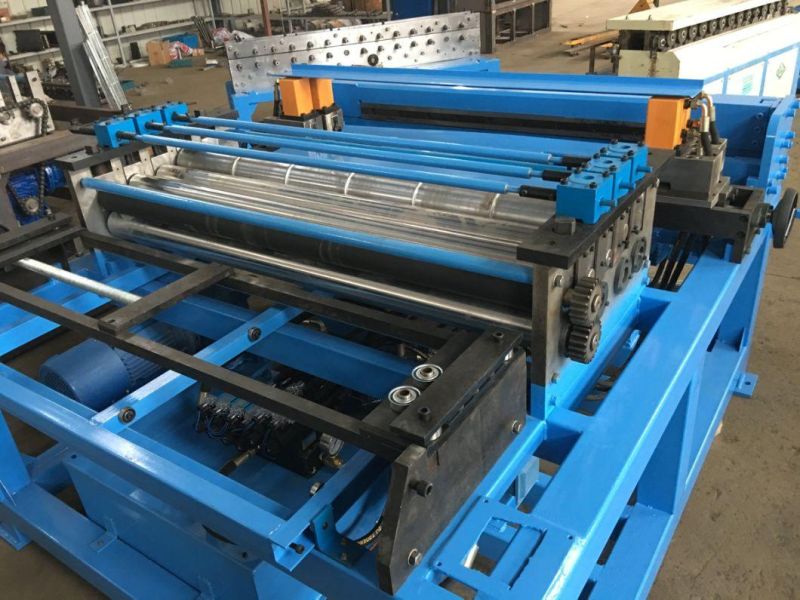

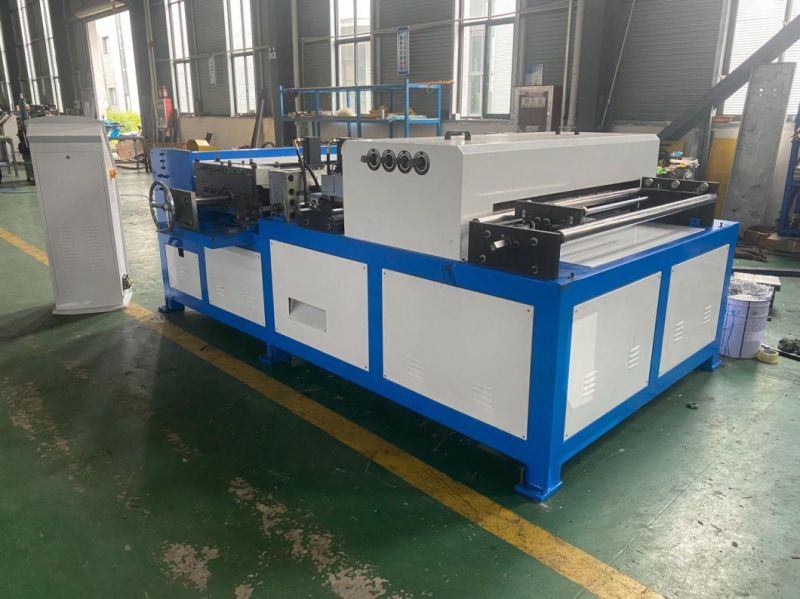

Product Real Picture
