• Model NO.：LM4-CNC-1800*3200A
• Input Voltage：380V 50Hz
• Input Power：7.5kw
• Hydraulic Pressure：15MPa
• Air Pressure：0.5~0.8MPa
• Air Consumption：0.45 L,Time
• Oil Capacity：40L
• Profile Width：<100mm
• Max. Dimension：1800*3200mm
• Min. Dimension：500*500mm
• Transport Package：Plastic Film or Depends on Customers
• Specification：4500*2000*2600mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. LM4-CNC-1800*3200A Input Voltage 380V 50Hz Input Power 7.5kw Hydraulic Pressure 15MPa Air Pressure 0.5~0.8MPa Air Consumption 0.45 L/Time Oil Capacity 40L Profile Width <100mm Max. Dimension 1800*3200mm Min. Dimension 500*500mm Transport Package Plastic Film or Depends on Customers Specification 4500*2000*2600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 10 Sets/Month

Product Description

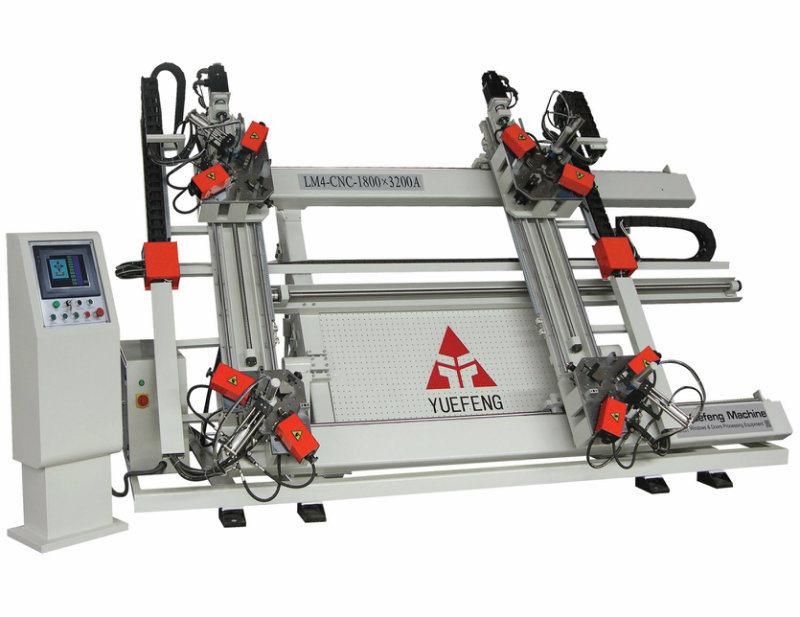

LM4-CNC-1800×3200A
CNC Vertical Four-point Corner Crimping Machine
> Used for corner punching and riveting combination, four corners connecting at one time punching is available.

> Clamping device can move front and back automatically, easily operation.

> Wide profile processing range due to convenient corner combining cylinder setting.

> Helical pitch ball screw controls head feeding, results high accuracy.

> OMRON CNC system adopted , which include PLC, touched screen, servomotor, and
servodriver, photo electrical switch, and photo electrical cells etc. Complete OMERON unit  results high accuracy.

Technical Parameter:


Model	LM4-CNC-1800×3200A
Input voltage	380V  50Hz
Input power	7.5Kw
Hydraulic pressure	15Mpa
Air pressure	0.5~0.8MPa
Air consumption	0.45 L/TIME
Oil capacity	40L
Profile width	≤100mm
Max. dimension	1800×3200mm
Min. Dimension	500×500mm
Overall dimension	4500×2000×2600mm
