• Model NO.：LMB-A-140
• Input Voltage：380V 50Hz
• Input Power：2.2kw
• Hydraulic Pressure：15MPa
• Air Pressure：0.4~0.6MPa
• Air Consumption：0.2 L,Time
• Oil Capacity：25L
• Profile Width：<140mm
• Combining Cylinder Movement：98mm
• Locator Adjustment Range：115mm
• Transport Package：Plastic Film or Depends on Customers
• Specification：1400*1200*1300mm
• Trademark：Yuefeng
• Origin：Jinan Shandong, China
• HS Code：8477800000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. LMB-A-140 Input Voltage 380V 50Hz Input Power 2.2kw Hydraulic Pressure 15MPa Air Pressure 0.4~0.6MPa Air Consumption 0.2 L/Time Oil Capacity 25L Profile Width <140mm Combining Cylinder Movement 98mm Locator Adjustment Range 115mm Transport Package Plastic Film or Depends on Customers Specification 1400*1200*1300mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

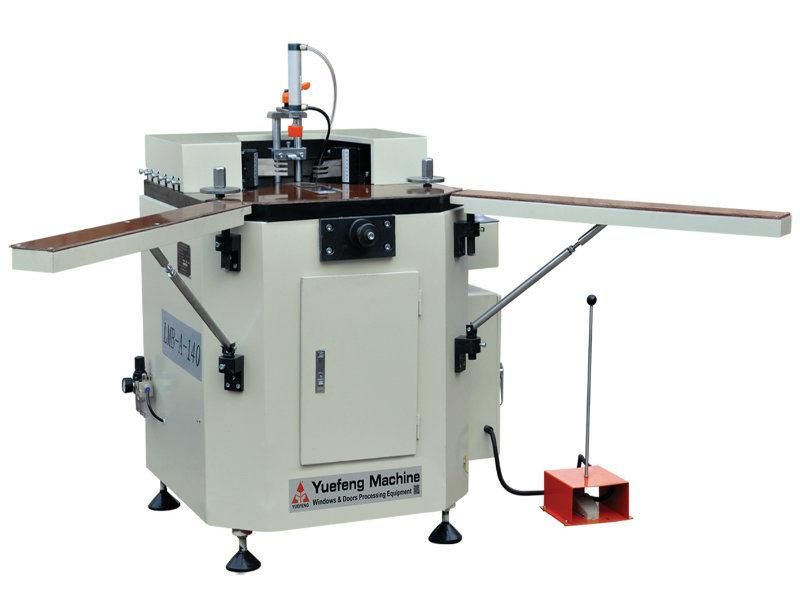

LMA-A-140 Corner Crimping Machine
> Used for 90° corner combining.

> Adjustable corner combining tool that achieve multi-position corner combining.

>  Inner locator can sit below the worktable, easy operation.

> Hydraulic system supplied large punching and riveting force.

>  Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.

>It has features of easy operation, reliable performance and convenient maintenance.

Technical Parameter:


Model	LMB-A-140
Input voltage	380V 50Hz
Input power	2.2kw
Air pressure	0.4~0.6MPa
Air consumption	0.2L/TIME
Oil capacity	25L
Profile width	≤140mm
Combining cylinder movement	98mm
Locator adjustment range	115mm
Overall dimension	1400×1200×1300mm
