• Model NO.：CLXDA-200
• Motor Rotary Speed：2800r,Min
• Air Pressure：0.6-0.8MPa
• Saw Blade Specification：(Φ200-Φ100)*Φ32mm
• Open Tenon：110mm
• Location Turning Angle：35°-90°
• Feeding Journey of Workable：0-320mm
• Overall Dimension：850*740*1280mm
• Weight：180kg
• Color：Gray or as Requirement
• Keywprd：Aluminium Profile End Milling Machine
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. CLXDA-200 Motor Rotary Speed 2800r/Min Air Pressure 0.6-0.8MPa Saw Blade Specification (Φ200-Φ100)*Φ32mm Open Tenon 110mm Location Turning Angle 35°-90° Feeding Journey of Workable 0-320mm Overall Dimension 850*740*1280mm Weight 180kg Color Gray or as Requirement Keywprd Aluminium Profile End Milling Machine Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 20 Sets Per Month

Product Description

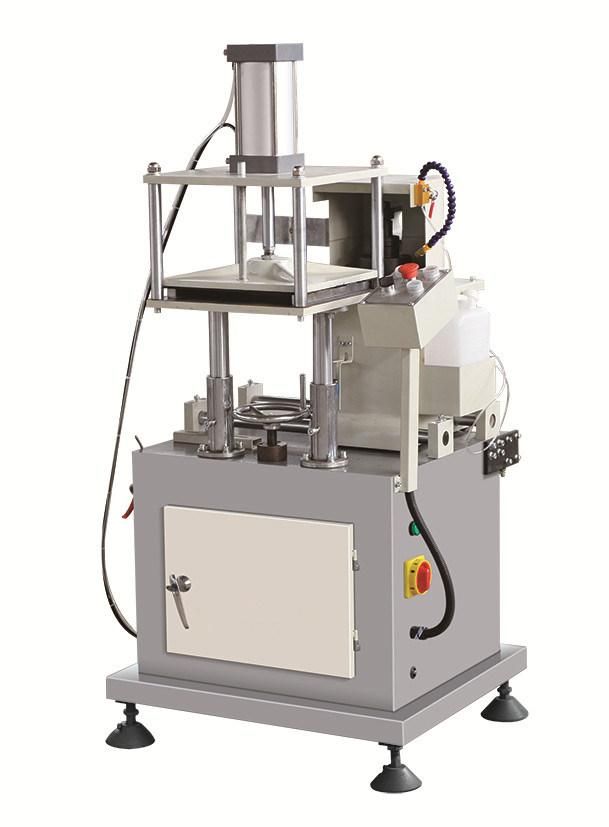

Small end milling machines for aluminum window door mullion profile

 Equipment Advantages

1.Used for milling the aluminum mullion/transom reinforced mullion.
2.Large milling capacity,multi-pieces profile in one cycle.
3.Universal milling blades can be adjusted in up/dpwn,left/right directions to fit for different processing requirement and ensure the efficient working.
4.Suitable for the reinforced mullion in one cutting/milling cycle.
5.Large diameter tools with high and stable milling speed for guarantee the working quality.
Technical Data


Input power	1.5kw	Air pressure	0.5~0.8MPa
Power supply	380V 50Hz	Worktable journey	0-320mm
Diameter of main shaft	φ32mm	Motor Rotary Speed	2800r/min
Cutter adjustable range	φ110-200mm	Diameter of milling cutter	φ250mm
Overall dimension	850*740*1280mm	Weight	300kg

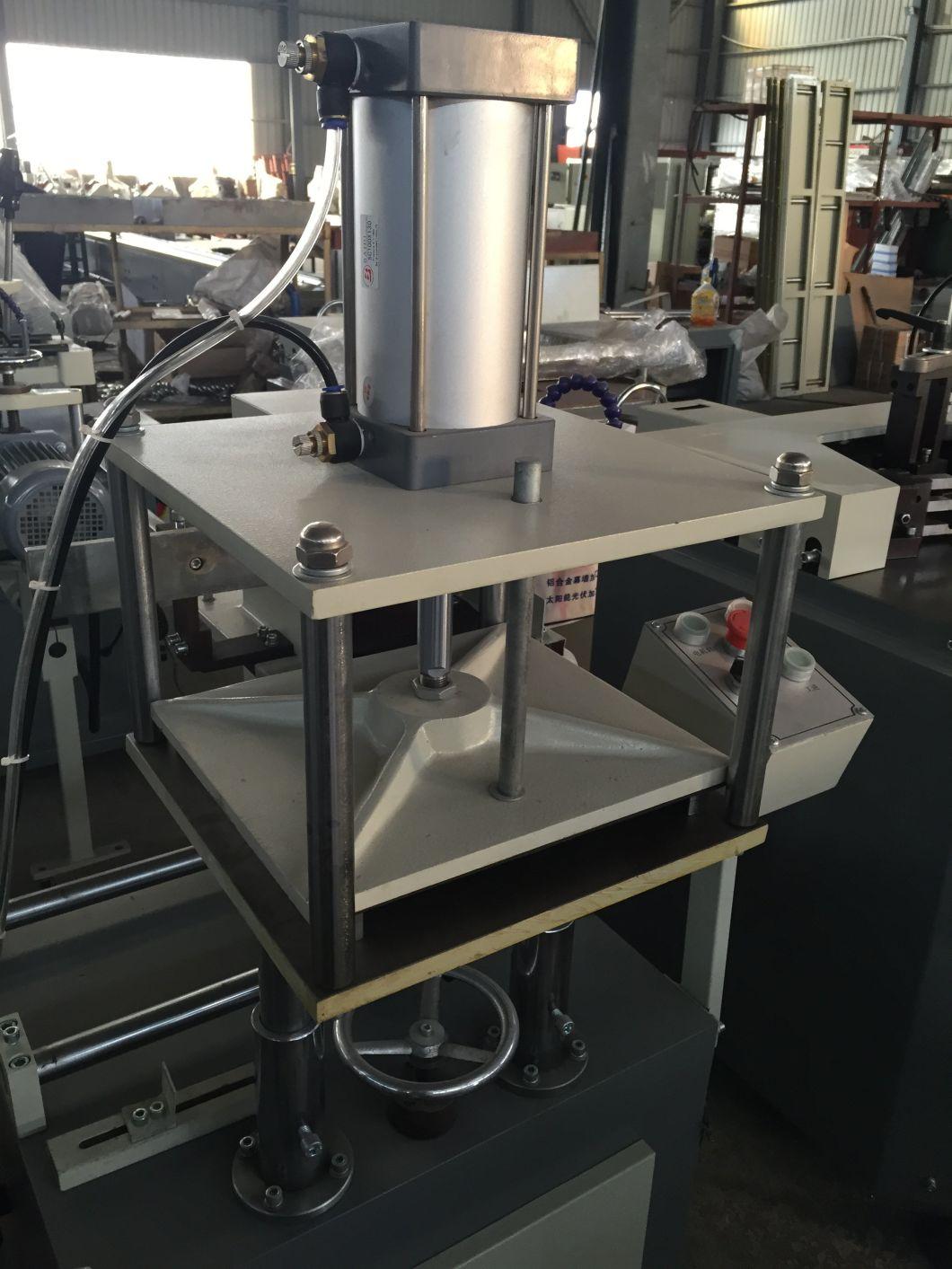

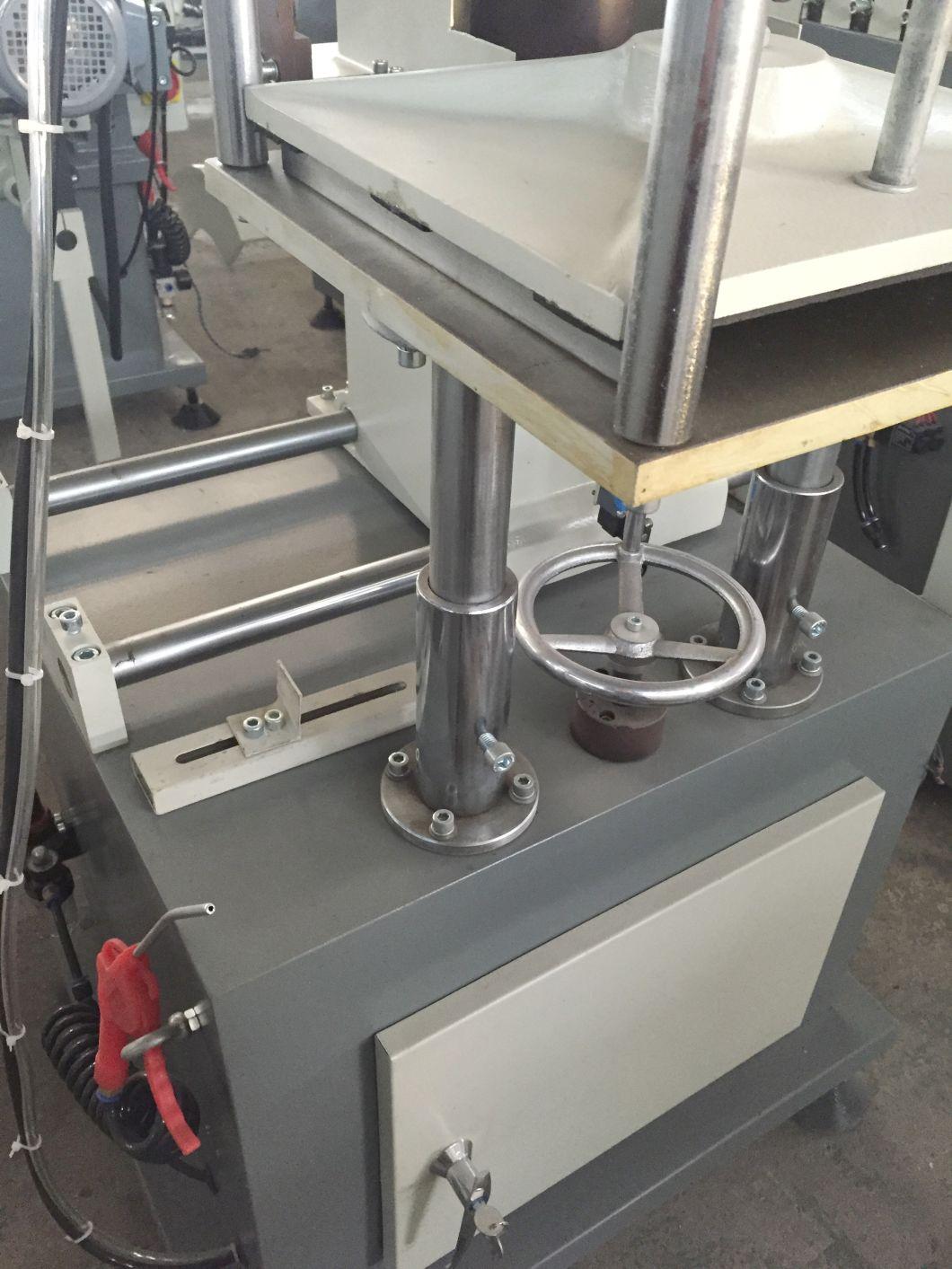

Machines Details

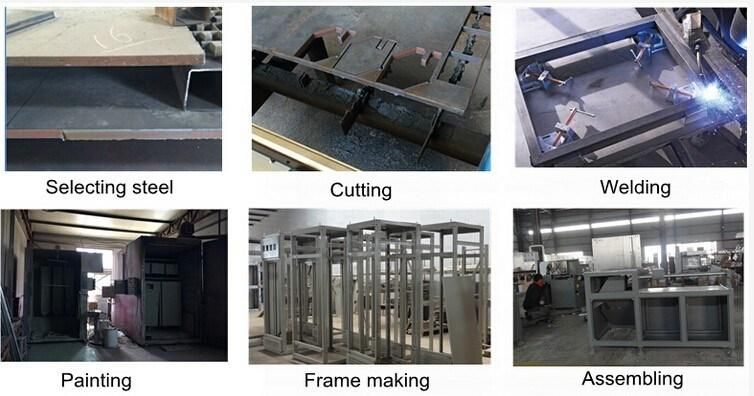

 Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
