• Input Power：7.5kw
• Rating Oil Pressure：15MPa
• Air Pressure：0.5-0.8MPa
• Air Consumption：0.45L Once
• Profile Width：93mm
• Max. Frame Size：2200*3000mm
• Min. Frame Size：480*480mm
• Machine Dimension：4700*2200*2500mm
• Weight：2500kg
• Function：Used for Aluminum Window Corner Combination
• Usage：to Combine Aluminum Window Corners
• Machine Type：Vertical Type
• Service：Oversea Service Could Be Offered
• Keywords：Aluminum Corner Crimping Machine
• Transport Package：Wooden
• Specification：CLM4S-100*2200*3000
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Input Power 7.5kw Rating Oil Pressure 15MPa Air Pressure 0.5-0.8MPa Air Consumption 0.45L Once Profile Width 93mm Max. Frame Size 2200*3000mm Min. Frame Size 480*480mm Machine Dimension 4700*2200*2500mm Weight 2500kg Function Used for Aluminum Window Corner Combination Usage to Combine Aluminum Window Corners Machine Type Vertical Type Service Oversea Service Could Be Offered Keywords Aluminum Corner Crimping Machine Transport Package Wooden Specification CLM4S-100*2200*3000 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

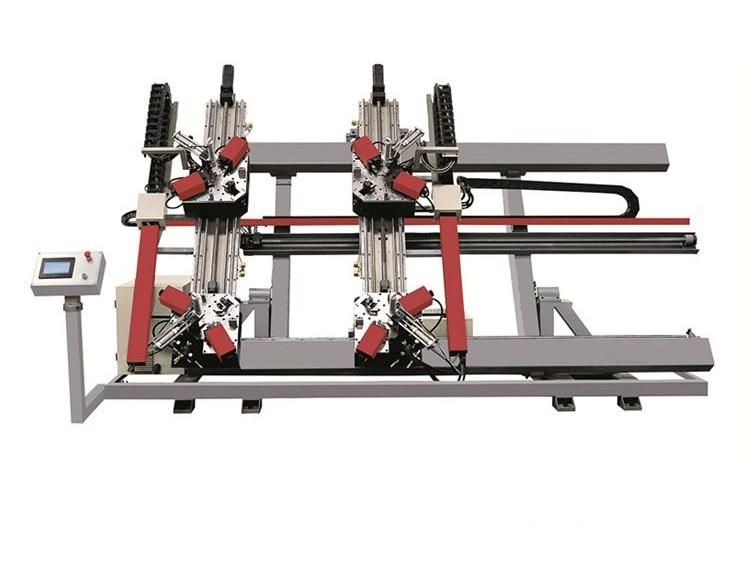

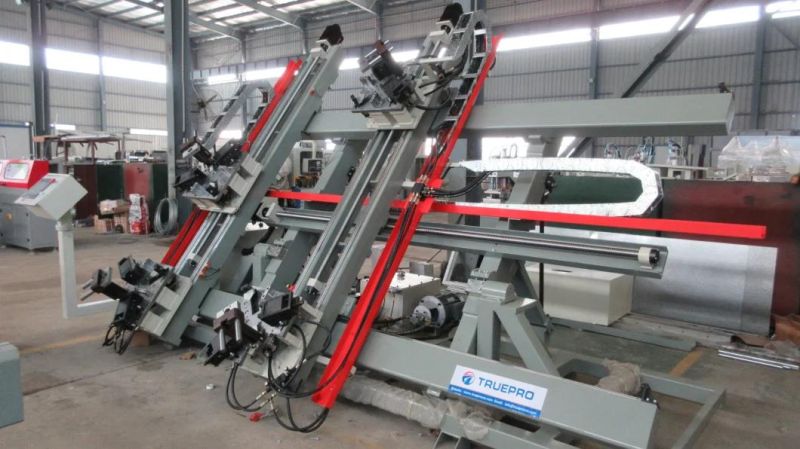

Manufacturer combining machinery corner crimping machine for aluminum window door profile sale


Machine feature:
1.Use for corner punching combination of aluminum window&door,four corners connecting at one time is available.
2.Clamping device can auto move forward/backward,making the operation convenient.
3.The frame is specially jointed by steel with high quality and special process.
4.The CNC system imported from MTSUBISHI JANPAN,with high quality ensures the speed and accuracy.
5.The moment control function of the service system can auto-press the four corners ensuring the processing effect.
6.The corner-crimping blade can be adjusted according to the requirement of different profile.
7.One time corner crimping can control the seam and plane,make the quality foresight.
8.The control system and servo system make the connect no seam and improve the control accuracy.
Parameter:

Model	CLM4S-100*2200*3000
Input power	7.5kw
Power supply	380V/220Hz
Air pressure	0.5~0.8Mpa
Rating oil pressure	16Mpa
Capability of oil box	60L
Profile width	93mm
Corner crimping casing movement journey	0~50mm
Min frame dimension	480*480mm
Max frame dimension	2200*3000mm
Overall dimension	4700*2200*2700mm
Weight	2500kg

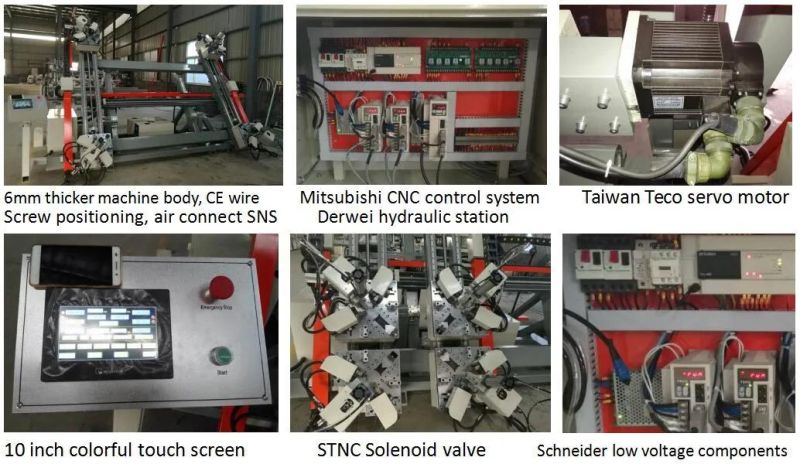

Machine details:






Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
