• Product Name：Double Deck Metal Roofing Sheet Molding Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.6mm
• Machine Power：4kw+3kw
• Forming Speed：10-12m,Min
• Operation Type：Touch Screen
• Operation Language：English and Chinese
• Machine Weight：About 3 Tons
• PLC Brand：Sanjing
• Warranty：1 Year
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：5500mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Basic Info.

Product Name Double Deck Metal Roofing Sheet Molding Machine Raw Material PPGI Sheet Thickness Range 0.3-0.6mm Machine Power 4kw+3kw Forming Speed 10-12m/Min Operation Type Touch Screen Operation Language English and Chinese Machine Weight About 3 Tons PLC Brand Sanjing Warranty 1 Year Transport Package Plastic Film & Steel Wire Fixed Specification 5500mm*1500mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 30 Sets / Months

Product Description

Double Deck Metal Roofing Sheet Molding Machine

This type of roof sheet has advantage including beautiful, classical appearance and grace taste.
It can be widely used in village, hotel, exhibition, vocation vallage, family construction and outdoor decorate.

1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table




2. Profile Drawings for Reference:






3. Technical parameters for Double Deck Metal Roofing Sheet Molding Machine:



1	Suitable to process	Color steel
2	Effective width	Customize
3	Feeding width	Customize
4	Rollers	13/15rows
5	Diameter of roller	75mm
6	Thickness of steel	0.3-0.8mm
7	Motor power	5.5kw
8	Pump power	4kw
9	Working speed	12m/min
10	Material of cutting knives	Cr12 quenching
11	Material of roller	45# steel quenching
12	Main frame	350H steel
13	Voltage	As customer's requirement
14	Weight	About 4.5T
15	Control system	PLC control system with inverter  (Delta brand)
16	Machine size	6.5*1.5*1.5m

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Double Deck Metal Roofing Sheet Molding Machine  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

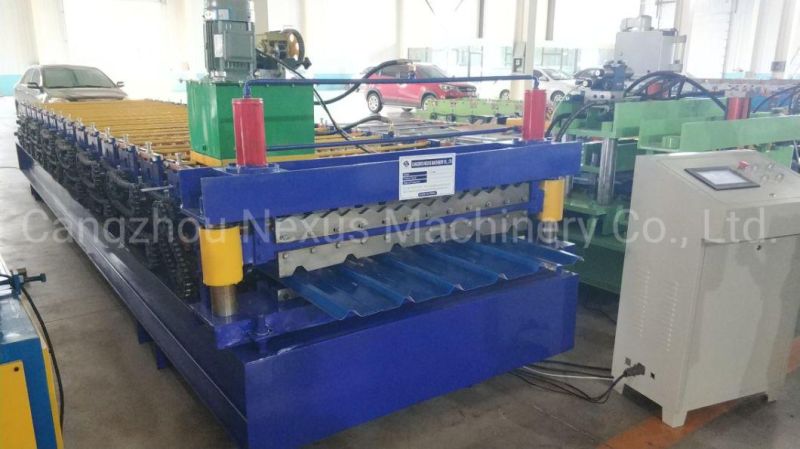

6. Photos of Double Deck Metal Roofing Sheet Molding Machine for Reference:








7.

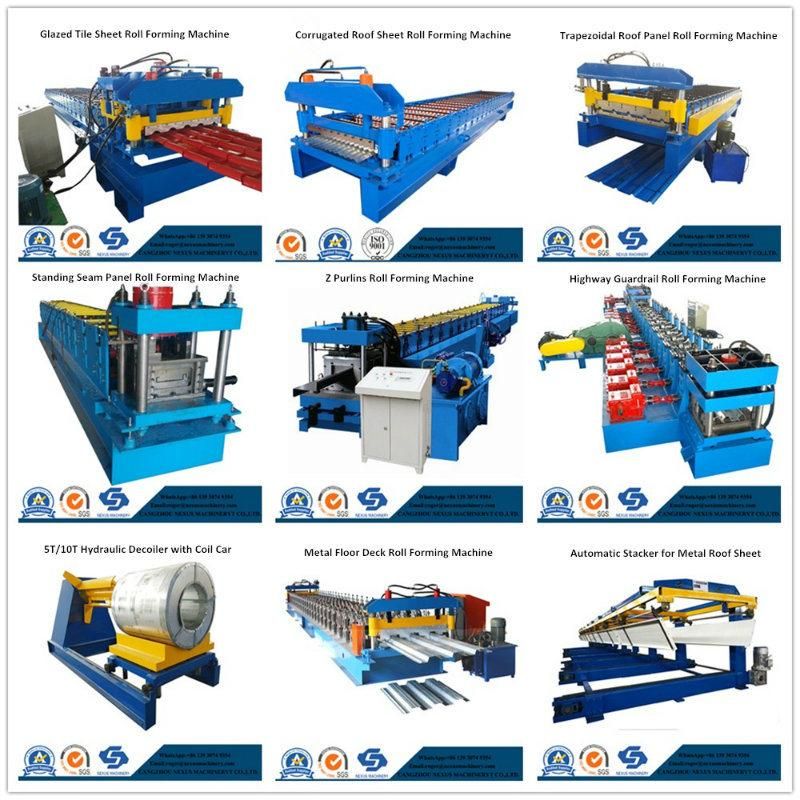

More Products for Choose:

Exhibitions Photos:


FAQ:

1. Do you have after sales support?
   Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
2. What can you do if the machine broken?
   Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself.
3. Can you be responsible for transport?
   Yes, please tell us the destination port or address. we have rich experience in transport.
4. Do you provide customized?
   Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer in China.
