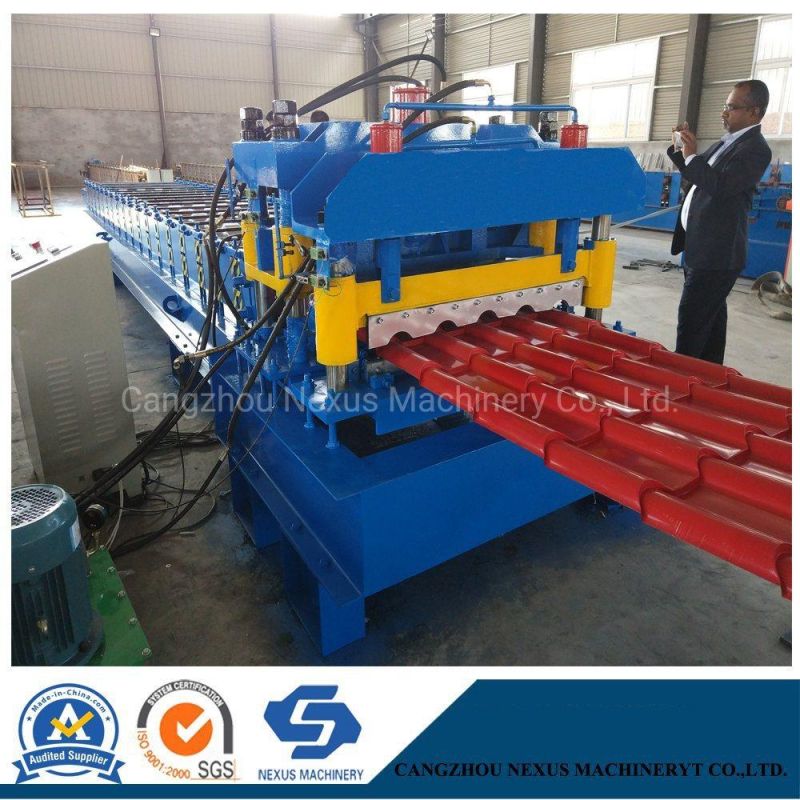

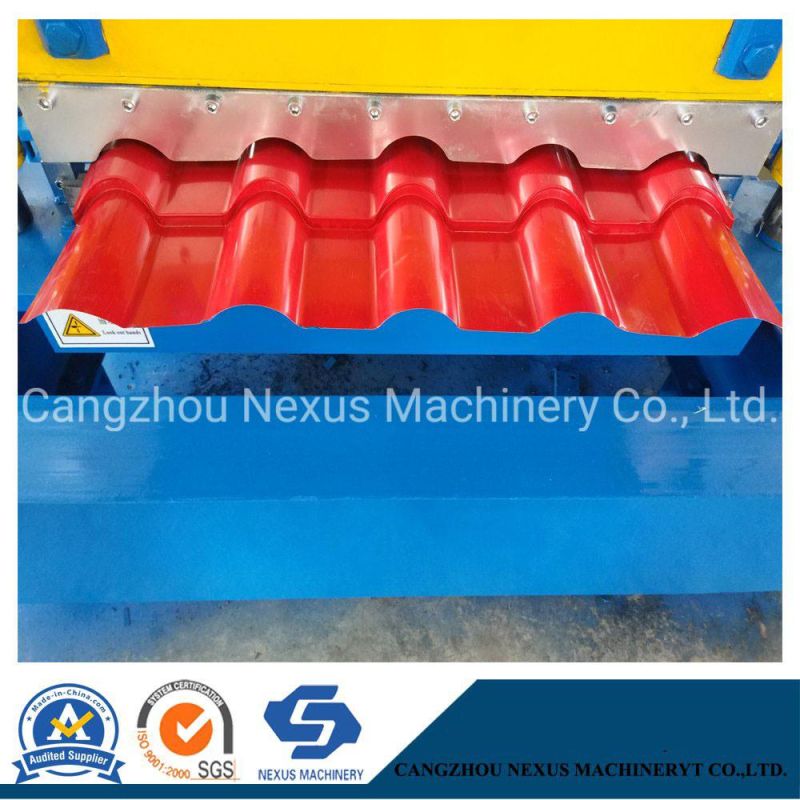

Step Style Roof Sheet Glazed Tile Roll Forming Machine Canton Fair
Cangzhou Nexus Machinery Co., Ltd.- After-sales Service：Provide Overseas Service
- Warranty：1 Year
- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
Base Info
- Usage：Roof, Wall
- Transmission Method：Electric
- Product Name：Step Style Roof Sheet Glazed Tile Machine
- Raw Material：PPGI Sheet
- Thickness Range：0.3-0.8mm
- Machine Power：5.5kw+3kw
- Machine Weight：About 5 Tons
- Warrenty：12 Months
- Work Speed：7-10m,MIM
- Transport Package：Plastic Film & Steel Wire Fixed
- Specification：6500mm*1500mm*1500mm(L*W*H)
- Trademark：NEXUS MACHINERY
- Origin：China
- HS Code：8455221000
- Production Capacity：30 Sets , Months
Description

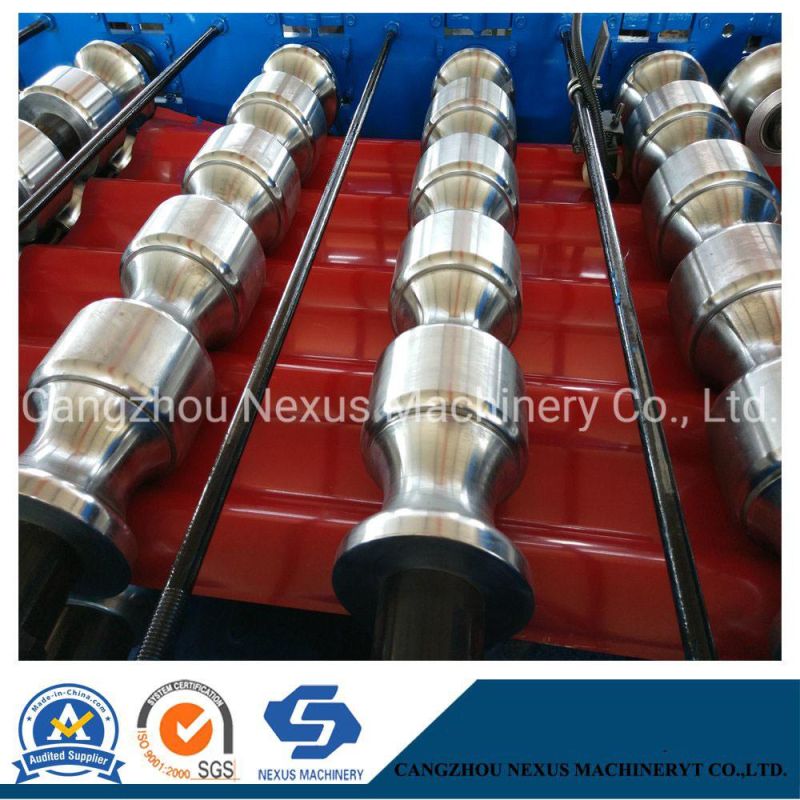

Manual decoilerCapacity 5ton Feeding width MAX 1300mm Expanding range 460-520mm Main motor power 5.5kw Drive 1'' single chain Type: Wall board Main shaft dia ¢70mm Material 45# forge steel and quenched Roller material 45# high grade forge steel, chrome coated 0.05mm Roll station 16 groups Raw material 0.3-0.8mm Coil width 914mm Working speed 3m--5m/min(Exclude cutting time) Length Tolerance ±1.5mm Weight of machine About 5 ton Size of machine About 7500×1800×1500mm L x W x H Color of machine Yellow and Blue Coder Omron, made in Japan Control PLC Panasonic, made in Japan. 380V 50Hz, 3phase (Also depend on client) Computer operating panel Touching screen Cutting Hydraulic cutting. Auto cutting when reach the set length Hydraulic power 3KW Blade material Cr12MOV, quenched 58°-62° Working pressure 16MPa Cutting tolerance +/- 1.0mm
4. Equipment list:
5. Character of main structure:
Packing Photos of Metal Forming Equipments:
Exhibition Photos:
4. Equipment list:
| No. | Product Name | QTY |
| 1 | 5T Manual decoiler | 1 |
| 2 | Step Style Roof Sheet Glazed Tile Roll Forming Machine Canton Fair (Includes Hydraulic steeping, cutting, PLC computer, Electrical cabinet, Hydraulic system) | 1 |
| 3 | Passive Output table | 2 |
| Sum | 4 |
5. Character of main structure:
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming.
- It is very easy to install the equipment and suitable for producing in the factory.
- Low noise with high efficiency.
