• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：CNC
• Voltage：380V
• Power Supply：380V,50Hz
• Saw Head Motor：2*3.0km 2840r,Min
• Working Pressure：0.6~0.8MPa
• Air Supply：60L,Min
• Cutting Length：380~4300mm
• Cutting Width：Max.135mm
• Max.Cutting Slop：45° 135X180mm
• Cutting Angle：90° 45°
• Feeding Speed：0~3m,Min
• Saw Blade Specification：Φ500X4.4X30 Z=120
• Overall Dimension：5800X1800X1500mm
• Weight：1750kg
• Transport Package：Wooden Box
• Specification：500*4300
• Trademark：Seth
• Origin：Jinan
• Package size per unit product：580.00cm * 180.00cm * 150.00cm
• Gross weight per unit product：2000.000kg

Basic Info.

Certification ISO, CE Automatic Grade Automatic CNC or Not CNC Voltage 380V Power Supply 380V/50Hz Saw Head Motor 2*3.0km 2840r/Min Working Pressure 0.6~0.8MPa Air Supply 60L/Min Cutting Length 380~4300mm Cutting Width Max.135mm Max.Cutting Slop 45° 135X180mm Cutting Angle 90° 45° Feeding Speed 0~3m/Min Saw Blade Specification Φ500X4.4X30 Z=120 Overall Dimension 5800X1800X1500mm Weight 1750kg Transport Package Wooden Box Specification 500*4300 Trademark Seth Origin Jinan

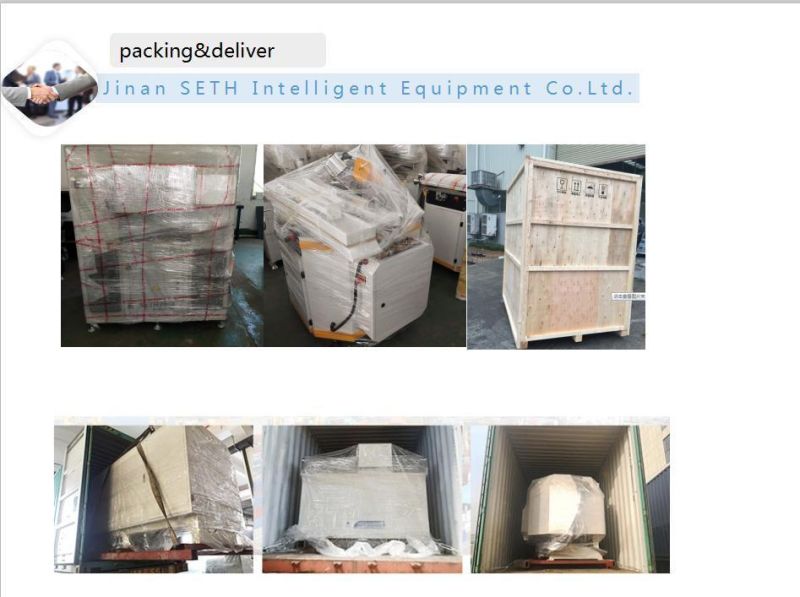

Packaging & Delivery

Package size per unit product 580.00cm * 180.00cm * 150.00cm Gross weight per unit product 2000.000kg

Product Description







Power supply	380v 50hz
Saw head motor	2× 3KW/3000r/min
Working pressure	0.6~ 0.8MPa
C  Air consumption	60L/min
Cutting length	Max5000mm min 280mm(Short cutting function is the shortest 200mm)
Cutting width	Max 150mm
Max. Cutting slope	45°150×170mm    90°150×345mm
Max. square tube cutting	150×200mm
Cutting angle	45 degree 90 degree
Feeding speed	continuously viable  0-4m/min
Saw blade specification	ø500 × ø30 × 4.4× Z120
dimension	6550× 1300× 1800 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3'
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra12.5μm
