Qt10-15 Automatic Cement Colorful Paver Machine Hollow Block Machine Concrete Brick Making Machine Price
Shandong Xinming International Trade Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Model：Qt10-15 Brick Making Machine
- Host Machine Power：37 Kw
Base Info
- Model NO.：QT10-15
- Mold Period：15 Seconds
- Rated Pressure：21MPa
- The Size of Pallet：1196*880*20mnm
- Weight of Block Machine：9.8tons
- Mixer Model：Js750 Concrete Mixer
- Labor：5-7 Workers
- Vibration Force：100kn
- Block Type：Hollow Soild Paving Block
- Factory Area：1500-2000m2
- Standard Hollow Block：400*200*200mm
- Pallet Number：1500-2000 PCS
- Color：Optional
- Water Consumption：10-20 Tons
- Transport Package：Qt10-15 Brick Making Machine Is Nude in Container
- Specification：3850(L)*2450(W)*3200(H)mm
- Trademark：Xinming
- Origin：China
- HS Code：8474802000
- Production Capacity：500PCS Block Machines Per Month
Description
Batching Machine
12KW
Automatic Batching raw mateial sand and stone
5.2KW
Automatic material feeding system
Automatic Pallet feeding system
Hydraulic station
Automatic PLC control
Carry fresh block from block machine to stacker
Automatic Stacking fresh block with 4-5 pallet
Carry fresh block from stacker to curing site
2.Production Capacity

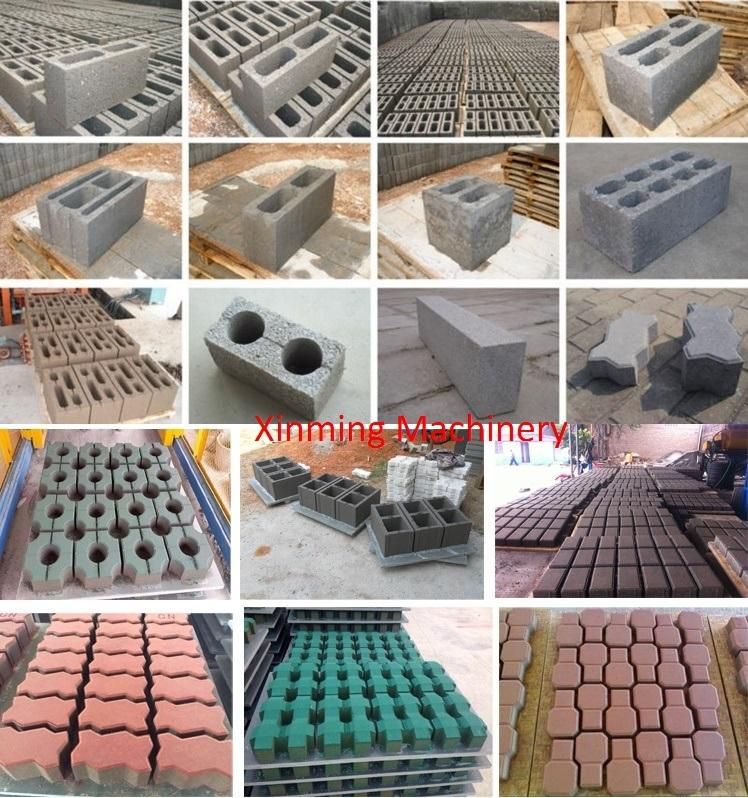

QT10-15 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable. It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.
Hollow/Solid block
400-150-200mm
23040 pcs/8h
Hollow/Solid block
400-100-200mm
34560 pcs/8h
Houdi block
450-120-200mm
23040 pcs/8h
S shape paver
225-112.5-60mm
46080 pcs/8h
I shape paver
200-160-60mm
34560 pcs/8h
Holland paver
200-100-60mm
53760 pcs/8h
3. Workers Number: 5-6 Workers
Two workers to load material into Mixer
One Workers to operate block machine
One Workers to load pallet into pallet box of block machine
One or Two workers to carry fresh blocks to curing size
4. Factory Area : 1500-2000M2
Shelter Area; 260M2
5.Pallet Number for QT10-15 automatic block making line: 1500-2000 pallets
Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.
6. Maintance: QT10-15 automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.
7: Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.
8. Guarantee Time: One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.

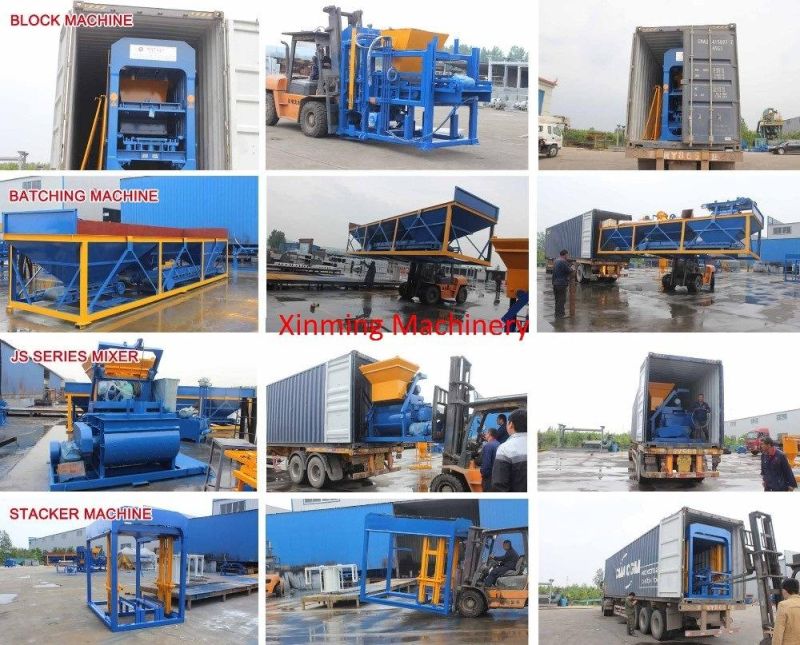

Packaging & Shipping

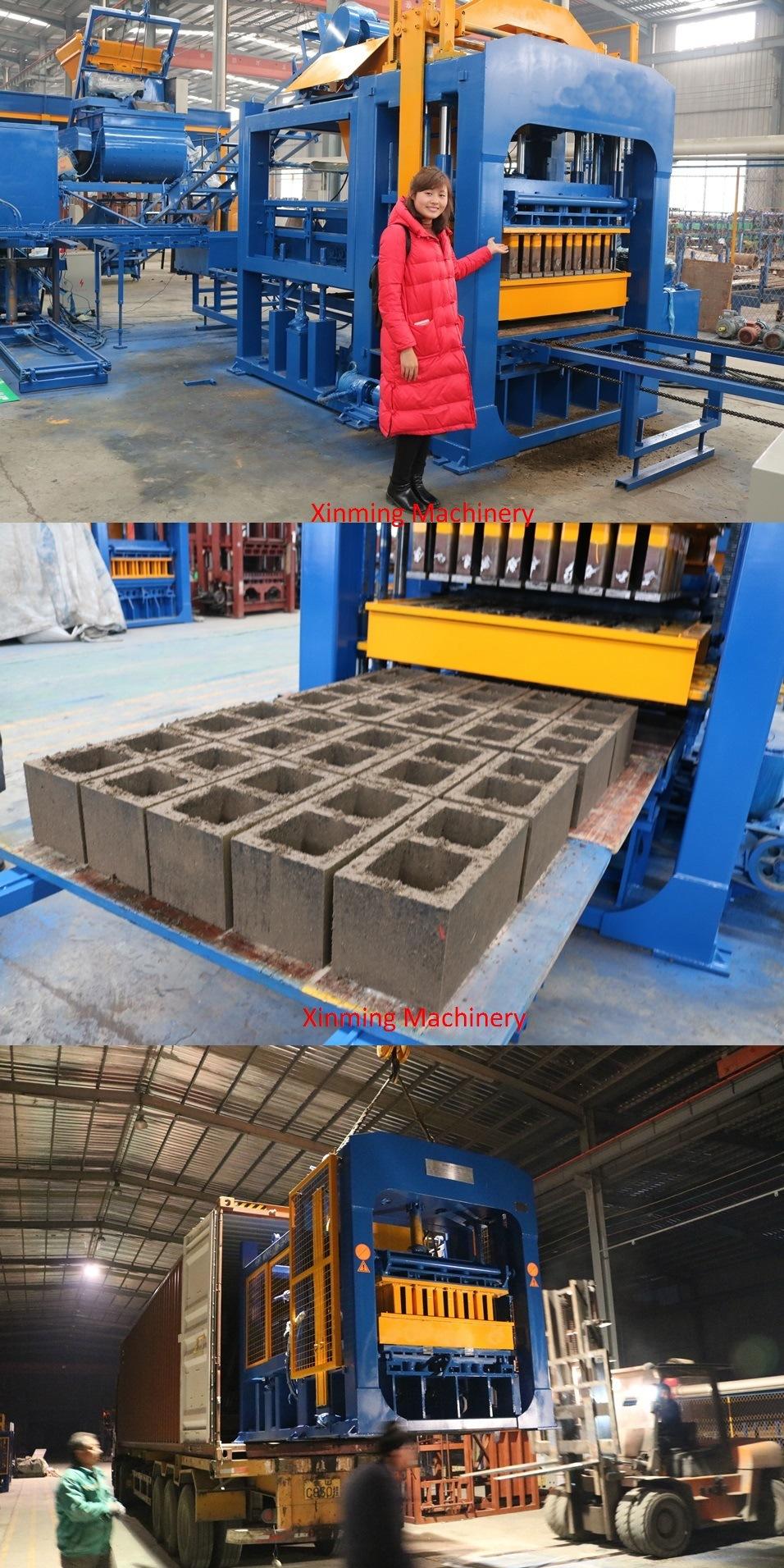

QT10-15 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.

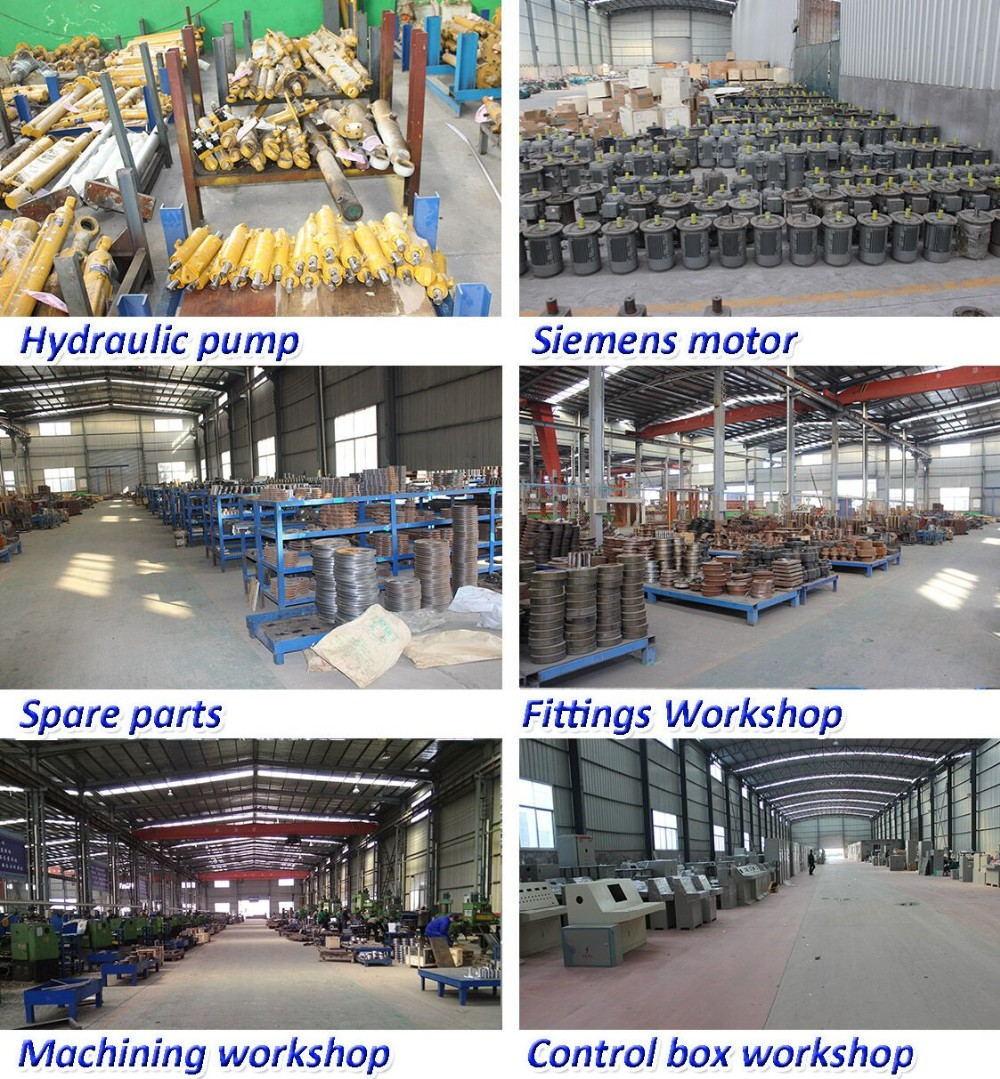

Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories. Our Factory is located in Linyi City, Shandong Province, China.
On the basis of Rich experience and advanced Germany technologies,Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
