Qt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine

Shandong Xinming International Trade Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydraulic Shock
  • Model：Qt8-15 Brick Making Machine
  • Host Machine Power：29.1 Kw

Base Info

  • Model NO.：QT8-15
  • Mold Period：15 Seconds
  • Rated Pressure：21MPa
  • The Size of Pallet：960*880*20mnm
  • Weight of Block Machine：8.5tons
  • Mixer Model：Js750 Concrete Mixer
  • Labor：5-7 Workers
  • Vibration Force：60-80kn
  • Block Type：Hollow Soild Paving Block
  • Factory Area：1500-2000m2
  • Standard Hollow Block：400*200*200mm
  • Pallet Number：1500-2000 PCS
  • Color：Optional
  • Water Consumption：6-10 Tons
  • Transport Package：Qt8-15 Brick Making Machine Is Nude in Container
  • Specification：3650(L)*2450(W)*2950(H)mm
  • Trademark：Xinming
  • Origin：China
  • HS Code：8474802000
  • Production Capacity：500PCS Block Machines Per Month

Description

Machine NameFunctionElectric Power 2Batching MachineBatching Raw material (sand and stone)12kw4JS750 MixerMixing Raw Material (sand, stone, cement)38.6kw58m Belt ConveyorCarry mixture from Mixer to Block Machine2.2kw6QT8-15 Block Machinepallet feeding system44.2kwMaterial feeding systemHydraulic StationAutomatic PLC ControlEStackerAutomatic Stacking Fresh Block3kwTotal Power100KW



2.Production Capacity
QT8-15 Automatic Concrete Block Making Machine is multipurpose, especially, the mold is changable.  It can produce different size and shape of blocks by changing moulds. Such as concrete hollow block, soild block, colorful paver brick, curbstone etc.

Qt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine
 2

Hollow/Solid block

400-150-200mm

10 pcs/mold
19200 pcs/8h3

Hollow/Solid block

400-100-200mm

16 pcs/mold
30720 pcs/8h4

Houdi block

450-120-200mm

12 pcs/mold
23040 pcs/8hQt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine
 5

S shape paver

225-112.5-60mm

21 pcs/mold
30240 pcs/8hQt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine
 6

I shape paver

200-160-60mm

20 pcs/mold
28800 pcs/8h
Qt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine
 7

Holland paver

200-100-60mm

32 pcs/mold
46080 pcs/8h


3. Workers Number:  5-6 Workers

     Two workers to load material into Mixer

     One Workers to operate block machine

     One Workers to load pallet into pallet box of block machine

     One or Two workers to carry fresh blocks to curing size


4. Factory Area : 1500-2000M2

    Shelter Area; 260M2

5.Pallet Number for QT8-15 automatic block making line: 1500-2000 pallets

    Xinming Machinery Factory supply bamboo pallet, fiber (GMT) pallet and PVC pallet. We recommend you the Fiber Pallet.

6. Maintance: QT8-15 automatic hollow solid block making machine is easy in maintance. please clean the mixer and mold after everyday work and fasten screws and add lubrication oil to moving parts before every day work.

7: Install Service: We will ship machine in whole one. you only connect elecctricity line with block machine, the machine can work. the manual and installtion video is avaible.

8. Guarantee Time:  One year. we will supply free accessories with machine for one year use. and Technical service and spare parts are avaible in all time.

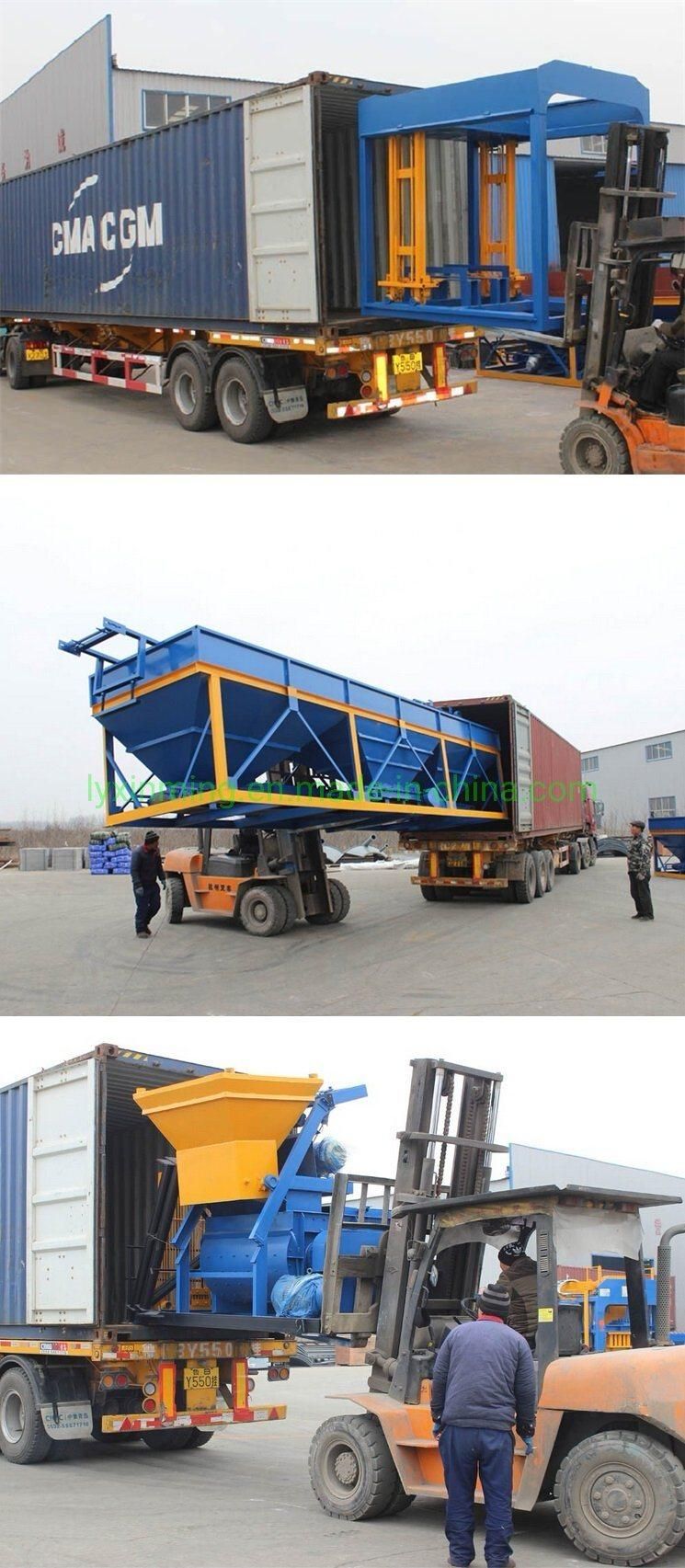

Packaging & Shipping
QT8-15 is one of our best-selling machines. This type of concrete block making machine is a fully automatic hydraulic vibration machine with high output, low power and affordable price.

Qt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine

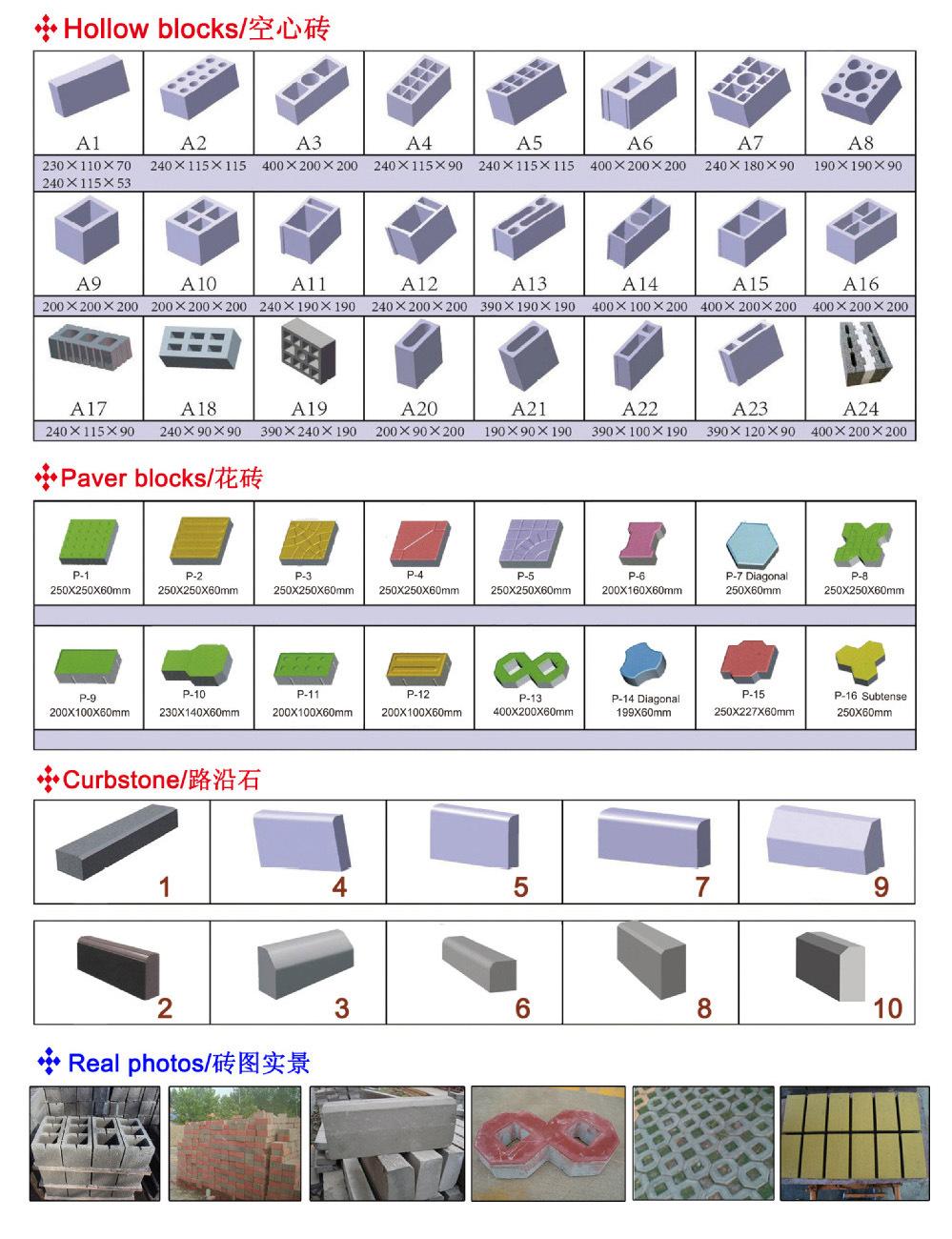

Block Types

Qt8-15 Automatic Concrete Hollow Block Making Machine Cement Hydraulic Brick Making Machine

Company Information

Xinming Machinery Co., Ltd is one of the biggest professional manufacturers of block machine with 18 years histories.  Our Factory is located in Linyi City, Shandong Province, China.

On the basis of Rich experience and advanced Germany technologies,Xinming Machinery are majored in models of concrete block machine and clay interlocking brick machine to meet requirement of all customers. Such as automatic block machine, semi-automatic block machine, manual block machine, paver machine, curbstone machine and clay interlocking lego brick making machine. Xinming Machinery is widely used and praised in more than 70 countries such as Ghana, Kenya, Peru, Mexico, Vietnam, Sudan and so on.
