Building Material Making Machinery

Bh 914-610 Arching Roof Roll Forming Machine

Yingkou Bohai Machinery Equipment Manufacture Co., Ltd.
  • Tile Type:Colored Steel
  • Certification:CE, ISO
  • Condition:New
  • Customized:Customized
  • Usage:Roof
  • Transmission Method:Machinery

Base Info

  • Model NO.:BH240
  • Feeding Width:914mm
  • Effective Width:610mm
  • Sheet Operating Factor:66.7%
  • Controlling System:PLC&Manual
  • Cutting Material:Cr12MOV
  • Step of Rollers:14 Steps
  • Material of Roller Shaft:45# Steel, Galvanized
  • Material of Rollers:45# Steel, Quenched with Hard Chrome
  • Type of Cutting:Roll-Formed and Length-Set Cutting
  • Transport Package:Packed in Container
  • Specification:8900mm*2230mm*2300mm
  • Trademark:BOHAI
  • Origin:Liaoning Province of China
  • HS Code:8455229090
  • Production Capacity:20sets Per Year

Description

Main  Technical  Specification:Size:   8900mm  ×   2230mm  ×   2300mmTotal  Weight:   about  15000KG Total  MotorPower: 17.9KWBending  power:   3.0kw+1.1kwx2;                                                   Sewing  power:   2.2kwCutting  power:   3.0kw;
Forming  power:   7.5kwWorking  Speed:     Straight  sheet:   15m/min
Arch  sheet:   13m/min
Sewing:   16m/minFeeding  Width:   914mm                                       Effective  Width:   610mmStep  of  rollers:   14  steps                                       Controlling  system:   PLC& ManualMaterial  of  cutting  blade:   Cr12  moVSheet  operating  factor:   66.7%Thickness  of  the  coil:   0.6-1.5mmMaterial  of  roller  shaft:   45#  steel,   galvanizedMaterial  of  rollers:   45#  steel,   quenched  with  hard  chrome           Type  of  cutting:   Roll-formed  and  length-set  cutting Electric  Standard:   380V  /  50  HZ  /  3  PHASES The  depth  of  the  groove: 203mmProper  span:   ≤ 42m Ship  Container:   40' HQ  x  1

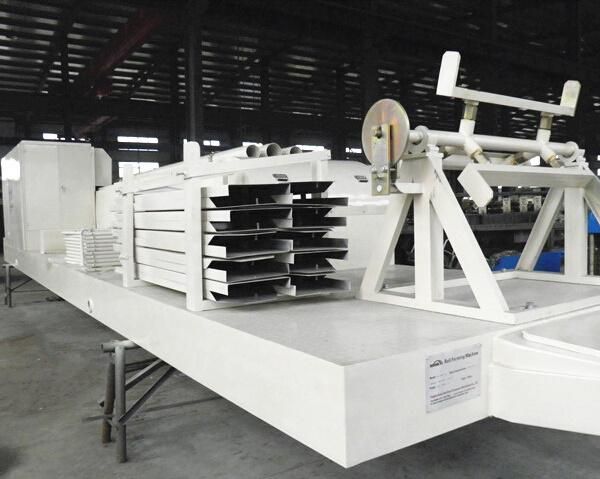

Machine Photo
Bh 914-610 Arching Roof Roll Forming Machine

Bh 914-610 Arching Roof Roll Forming Machine

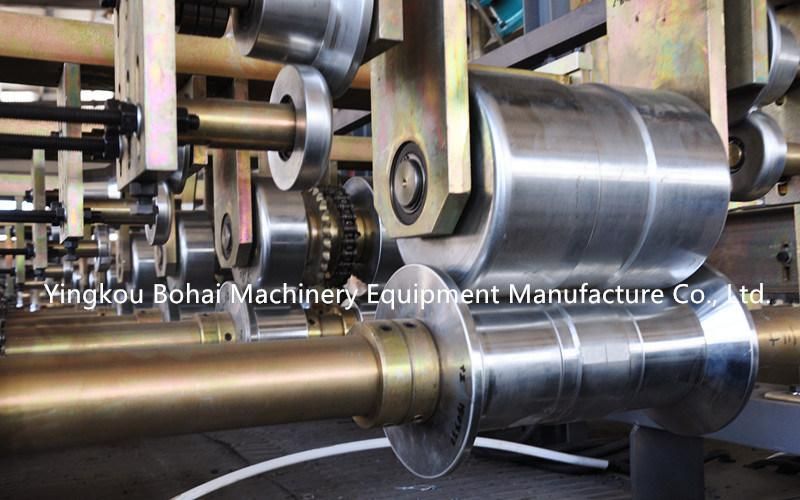

Machine Detail Phot
Bh 914-610 Arching Roof Roll Forming Machine

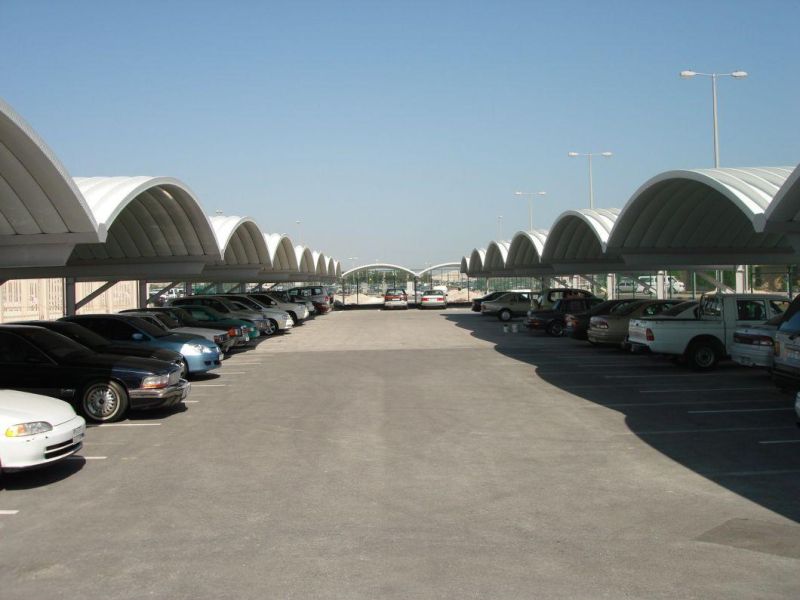

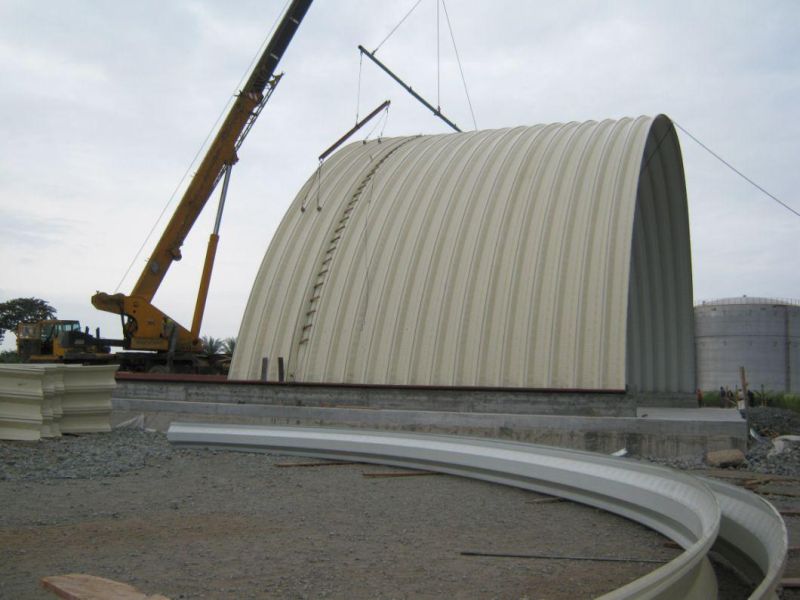

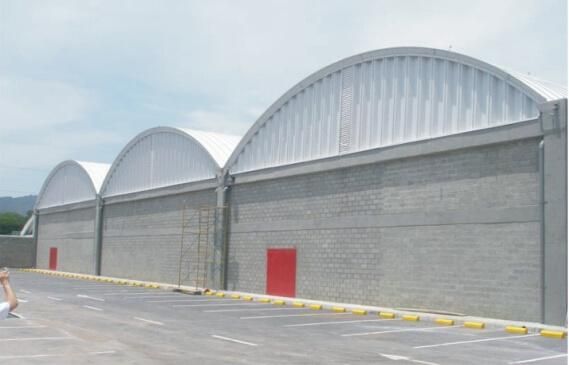

Project
Bh 914-610 Arching Roof Roll Forming Machine
Bh 914-610 Arching Roof Roll Forming Machine
Bh 914-610 Arching Roof Roll Forming Machine
Bh 914-610 Arching Roof Roll Forming Machine

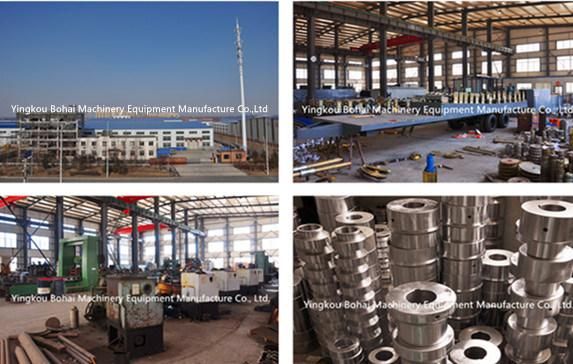

Our Company

Yingkou Bohai Machinery Equipment Manufature Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.
Bh 914-610 Arching Roof Roll Forming Machine

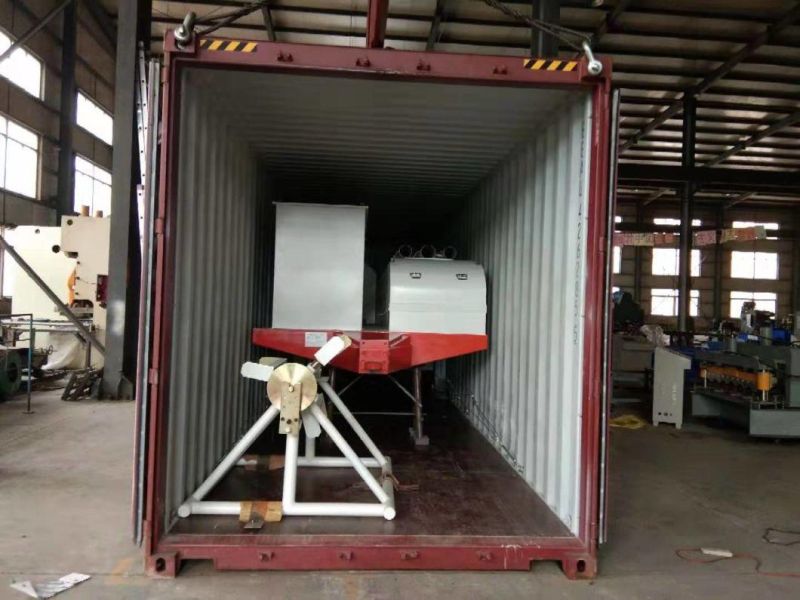

Delivery
Bh 914-610 Arching Roof Roll Forming Machine

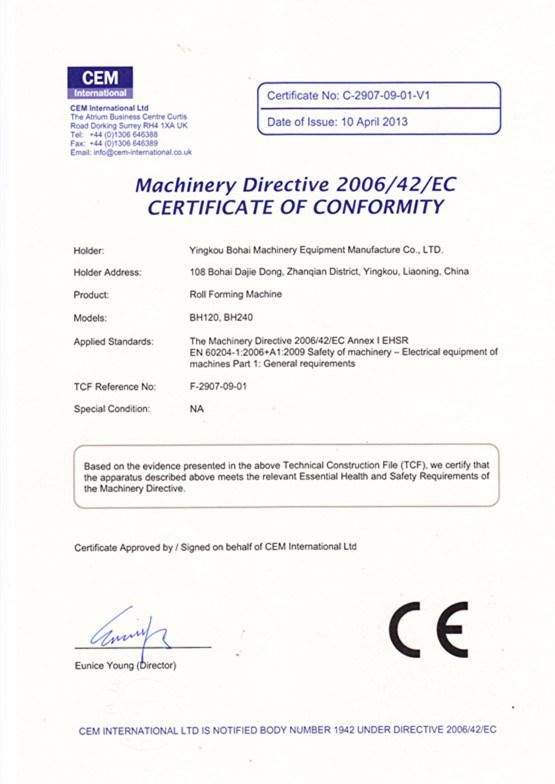

Certificate
Bh 914-610 Arching Roof Roll Forming Machine
Bh 914-610 Arching Roof Roll Forming Machine

FAQ
Q: Can you make the machine according to my design or photo type?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine according to your demand or photo type that you are going to book with us.


Q: Are you a factory or trading company?
A: We are a factory located in YingKou city, LiaoNing Province, China. Our city is near Beijing. All clients from abroad and home are warmly welcome to visit our factory!


Q: How do you guarantee the quality of the products?
A: Every section of our production has strict manufacture process, than professional inspectors check every section of the production, next the production will work for testing quality, which must be 100% quality assurance. Unqualified resolute don't a better factory.


Q: What is your service?
A:
We provide the technical support for whole life. Pre-sales service includes inquiry and design support and view our factory. After-sales service includes training how to instal the machine, training how to use the machine, and engineers available to service machinery overseas.

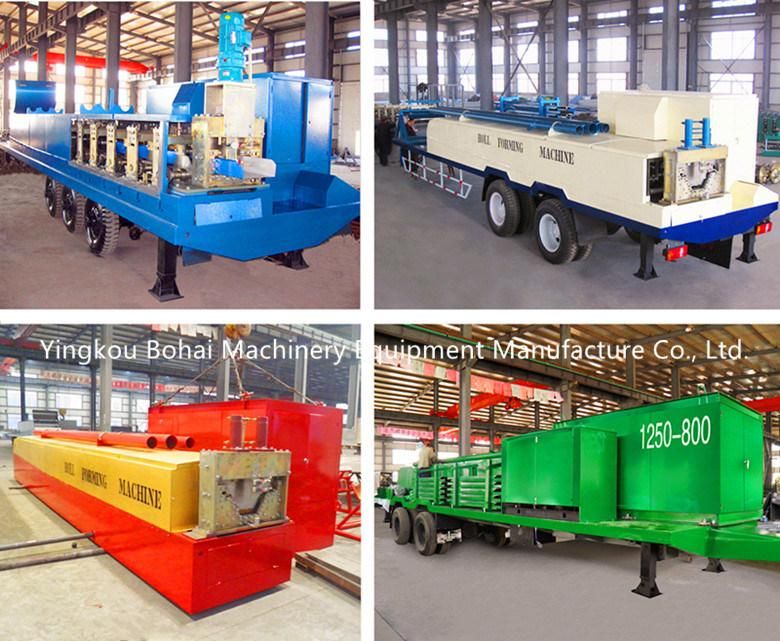

Machine Making Project Photo



Payment
T/T( 30% by T/T in advance, the rest 70% to be paid by T/T after you inspect the machine in seller's factory before delivery )
CooperateStep 1: Tell us your requirements.Step 2: Quoataion will be sent based on your requirement. Solution will be recommended to you as the alternative.Step 3: Negotiate and confrim each details for goods, trading terms and so on, get agreement and sign contract.Step 4: Advanced payment and production.Step 5: Factory examine goods/ rectify and reform to meet the requirements of contract.Step 6: Balance payment and shipping.Step 7: Handing shipping files to help clients get goods from transporter in time.Step 8: Clients get goods and go into warranty time.Step 9: Provide overseas service for clients.
