• Name：Metal Stud and Track Roll Forming Machine
• Material Thickness：0.3-0.8mm
• Main Motor Power：4 Kw
• Pump Power：4kw
• Shaft Diameter：50mm
• Forming Steps：15 Steps
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Main Frame：350h Steel
• Medium Plate Thickness：18mm
• Control system：PLC Computer Control with Inverter
• Power Supply：380V, 3 Phase, 60Hz or as Your Requirement
• 0veral Sized：About 6800mm*1500mm*1500mm
• Transport Package：Nude
• Specification：6200*800*1200mm
• Trademark：DIXIN
• Origin：Botou, Hebei, China
• HS Code：84552210
• Production Capacity：100 Set,Year

No. 1Suitable materialcolor steel sheet, galvanized steel sheet, aluminium sheet2Material widthas your required3Material thickness0.3-0.8 or as your required4Working speed8-12m/min, can be 20-25m/min5Main motor power5.5kw with cycloidal with reducer6Hydraulic pump power4kw7Electrical control systemPLC control system with inverter8Shaft diameter75mm9Roller station15 rows, depend on your panel profile drawing10Rollerhigh grade 45# steel, hard chrome plating11Working time24 hours12workers1-2 only13Cutting head materialCr 12 mould steel with quenched treatment14Voltage380V 3Phase 50Hz or as your required15Weight3.5T16The machine size7000mm*1500mm*1500mm

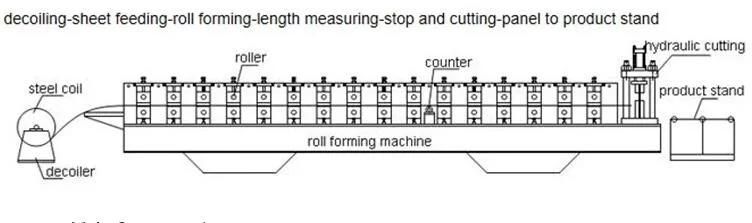

Work Flow:
Manual decoiler-Roll forming machine-PLC control-Hydraulic system -Post cut-Stacking



Company Introduction :

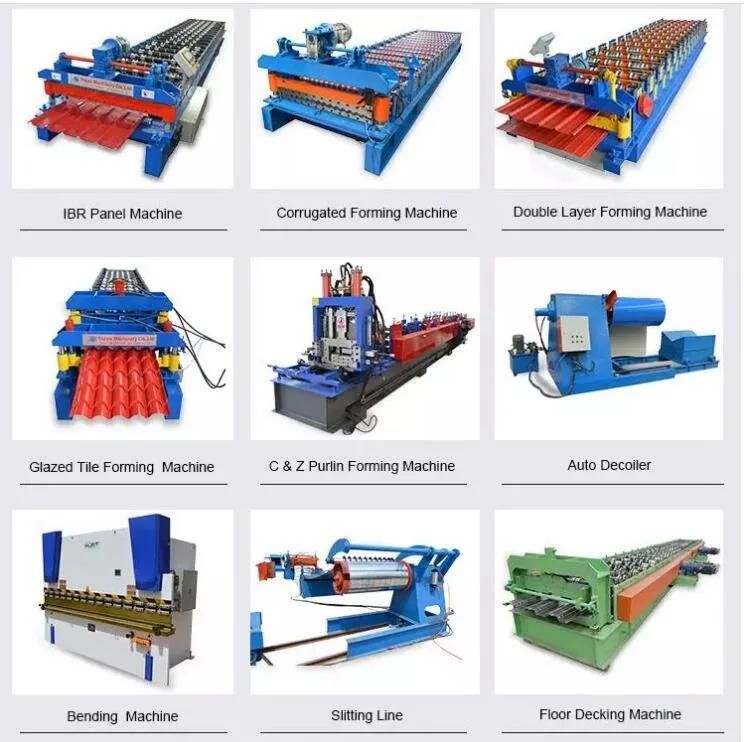

Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel  purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.

Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers' trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.

Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China


We can produce too many types roofing panels roll forming machine ,especially according to your request to produce.you need provide panel drawing,feeding width,effective width,and materials thickness,then we can send you more machine details.please feel free contact me
