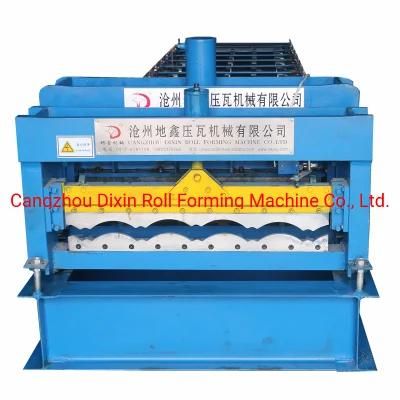

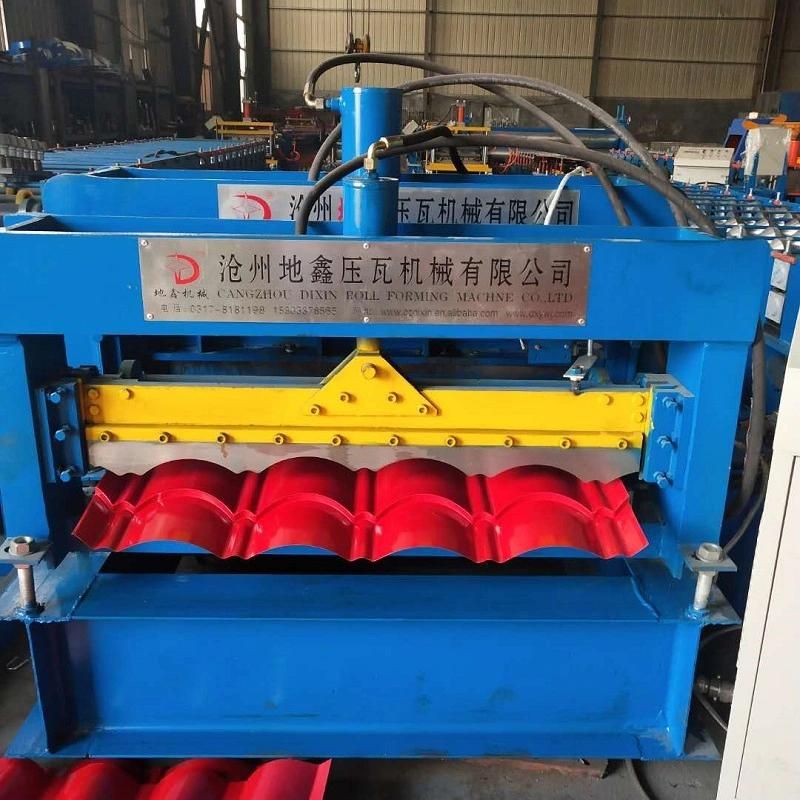

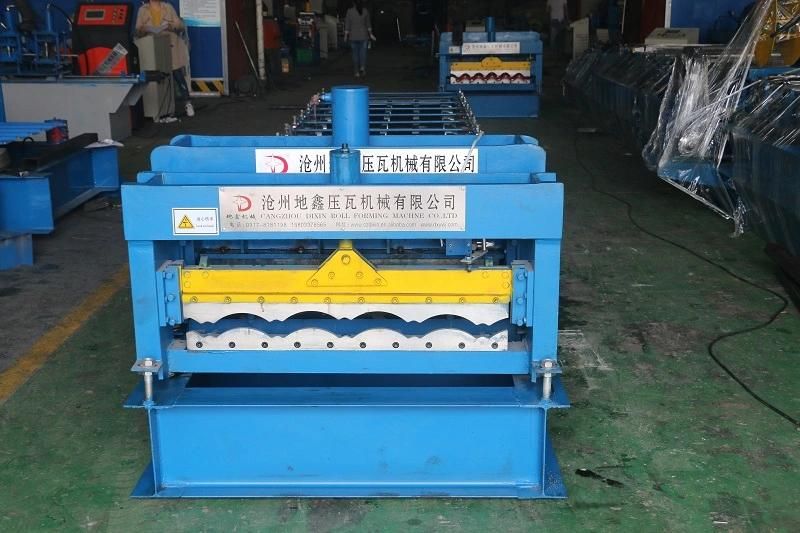

Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price

Cangzhou Dixin Roll Forming Machine Co., Ltd.
  • Tile Type：Glazed Steel
  • Certification：CE, ISO, ISO9001: 2000, Ce, SGS
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall, Floor
  • Transmission Method：Electric

Base Info

  • Model NO.：660-200-24
  • Name：Tile Roll Forming Machine
  • Payment Term：Tt,LC
  • Type：Concrete Iron Strengthen Machinery
  • Method：Roll Forming Machine
  • Processing：Brick Production Line
  • Product：Tile machine
  • Brick Raw Material：Steel,PPGI
  • Automation：Automatic
  • Tolerance：0.3-1.0mm
  • Product Name：Tile Roll Forming Machine
  • Transport Package：No
  • Specification：CE, SGS
  • Trademark：DIXIN
  • Origin：Cangzhou City, Hebei Province, China
  • HS Code：84552210
  • Production Capacity：15 Sets Per Month

Description

Basic Info.

Model NO. 660-200-24 Name Tile Roll Forming Machine Payment Term Tt/LC Type Concrete Iron Strengthen Machinery Method Roll Forming Machine Processing Brick Production Line Product Tile machine Brick Raw Material Steel/PPGI Automation Automatic Tolerance 0.3-1.0mm Product Name Tile Roll Forming Machine Transport Package No Specification CE, SGS Trademark DIXIN Origin Cangzhou City, Hebei Province, China HS Code 84552210 Production Capacity 15 Sets Per Month

Product Description

DX-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price

1.Technique parameters of Dx Glazed Tile Roll Forming Machine

 		Processing materialgalvanized steel/colored steel coil

 		Material thickness0.3-0.8mm

 		Effective width 800mm

 		 Feeding width 1000mm

 		 Main motor power4 kw

 		Pump power4 kw

 		Speed4m/min

 		 Shaft diameter75mm

 		 Forming steps11 steps

 		Roller material 45# forged steel, with hard chrome plating

 		Main frame300H steel

 		Medium plate thickness16mm

 		Control systermPLC computer control with inverter

 		Power supply380V, 3 Phase, 50Hz

 		0veral sized5400mm*1300mm*1000mm

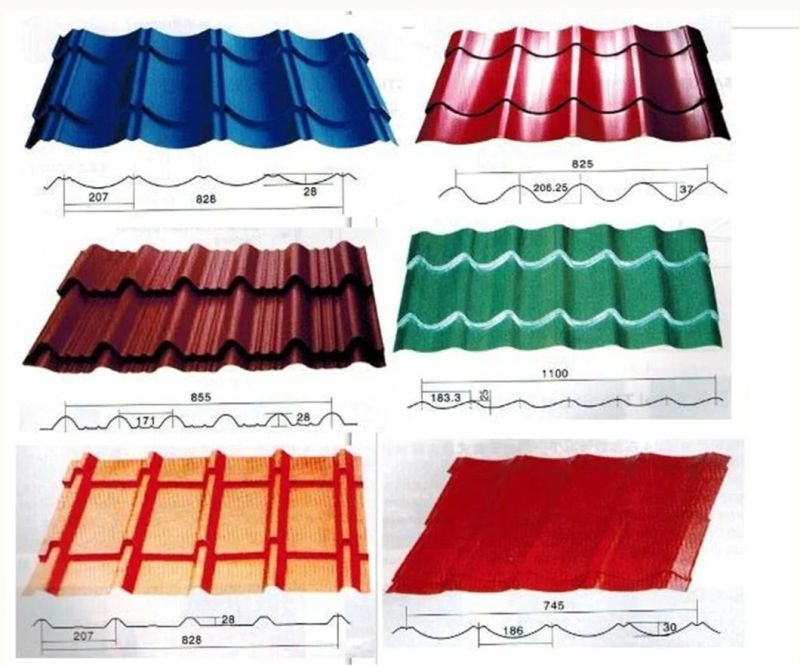

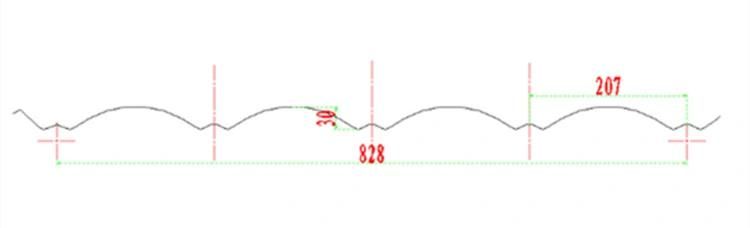

Finished product
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price



2. Work flow
Manual decoiler- Roll forming machine- PLC control- Hydraulic system - Post cut- Stacking
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price

Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price

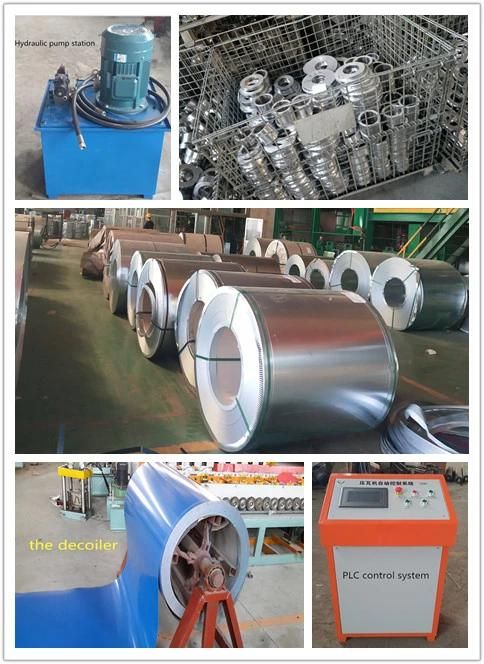

3. Specific description of Dx Glazed Tile Roll Forming Machine
(1) Manual decoiler
Un-powered, single head, max capacity: 5000kg

(2) hydraulic pump station
It is controlled by gear wheel oil pump, after filling the hydraulic oil into the hydraulic oil tank, the pump drive the cutting machine to begin the cutting job.

(3) Computer control cabinet
It adopts TaiDa PLC to control, the target sheet length is adjustable.
Computed mode has two modes: Automatic and manual.
Touch screen.

(4) Output table
It is used to load the finished sheet. This kind is convenient for shipment.

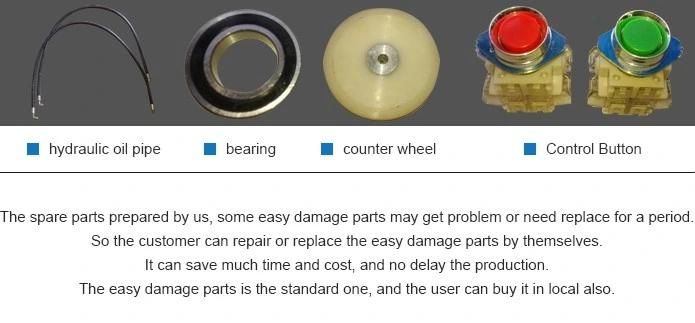

(5) Spare parts
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price
Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price
4. Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video

5. Warranty
24 months, and lifelong technical support service

Dx-660 High Quality Africa Hot Sell Glazed Tile Step Tile Roll Forming Machine Price


FAQ

1.Q: How can I contact you?

A: You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.

2. Do you have after sales support?

A:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3.Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

     2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.

4.Q: How many years since you have been in this field?

A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.

5.Q. What can you do if the machine broken?

A:Our machine's warranty period is 12months, if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself. if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

6.Q:How long the machine could be made?

 A:Normally speaking,  machine could be made within 30 working days. If you need machines in a hurry, we can make it for you less than a month.


6.Q:If our country's voltage is different from yours, how to solve that?

A:The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
