• Model NO.：C strut
• Transport Package：Simple Plastic Film Protection
• Specification：9.5*1.65*1.5M
• Trademark：Kexinda
• Origin：Hebei China
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. C strut Transport Package Simple Plastic Film Protection Specification 9.5*1.65*1.5M Trademark Kexinda Origin Hebei China Production Capacity 30 Sets Per Month

Product Description

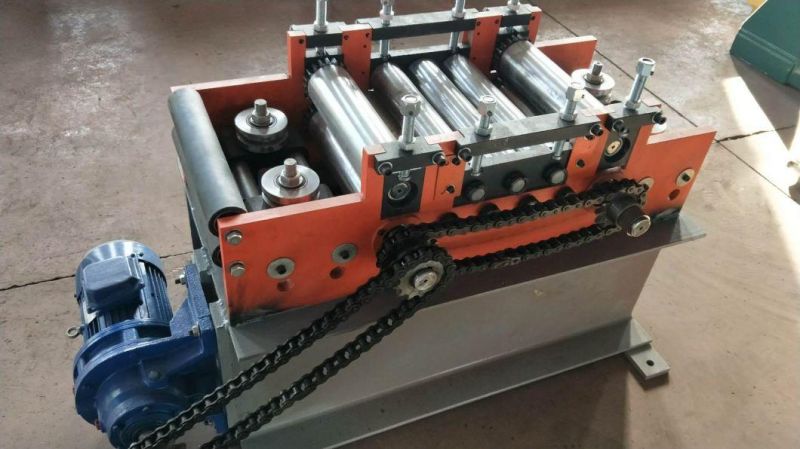

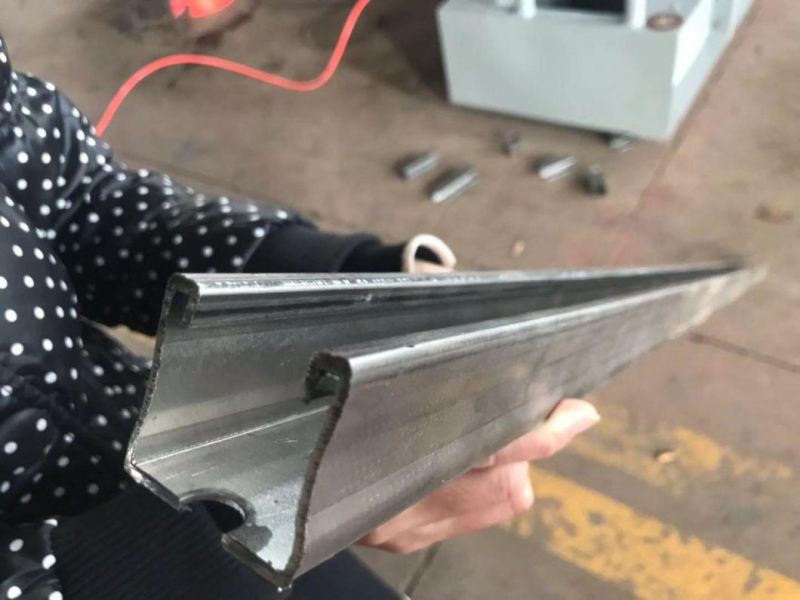

KXD C Strut roll forming machine



1. Technique parameters of the processing line

(1) Plate Material: Galvanized plate

(2) Thickness of the plate : 1.5-2.5mm

(3) Machine body : 350mm H steel

(4) Wall thickness of the main forming machine: 16mm steel plate

(5) Transmission chain : 2''

(6) Reducer :15kw Xingxing Cycloid which works stably and no noise.

(7) Diameter of active shaft: 80mm, 45# steel

(8) Hydraulic pump power: 5KW

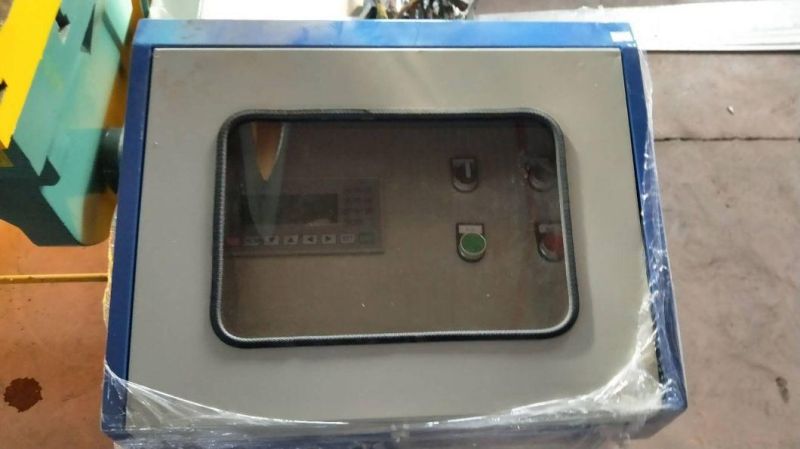

(9) PLC control systerm with inverter

(10) Dimensions of major structure:

9500mm(length)*1000mm(width)*1200mm(height)

(11) Woking Speed: 10-15m/min



2: Working Process Flow:

Manual Decoiler-Punching-Roll Forming Machine-PLC System-Hydraulic System-Formed Plate Collection Stack




FAQ:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

If any questions,you can call me mobile phone at any times:0086-15532877018

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

Our service:

1:Engineers available to service machinery overseas.

2: Warranty: 12 months.

3:Technical guidance for free forever.
