• Model NO.：NX80--300
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• Production Capacity：10

Basic Info.

Model NO. NX80--300 Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV  Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou Production Capacity 10

Product Description

C and Z Purlin Steel Channel Fast Quick Change

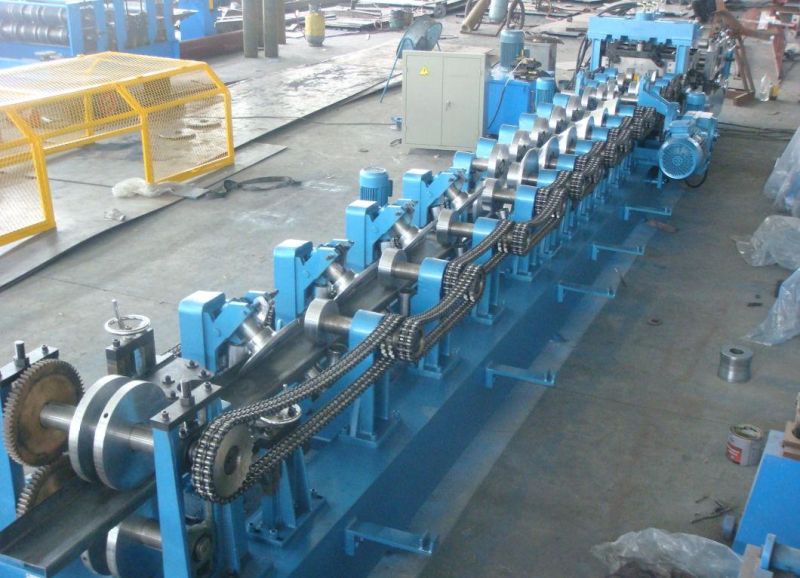

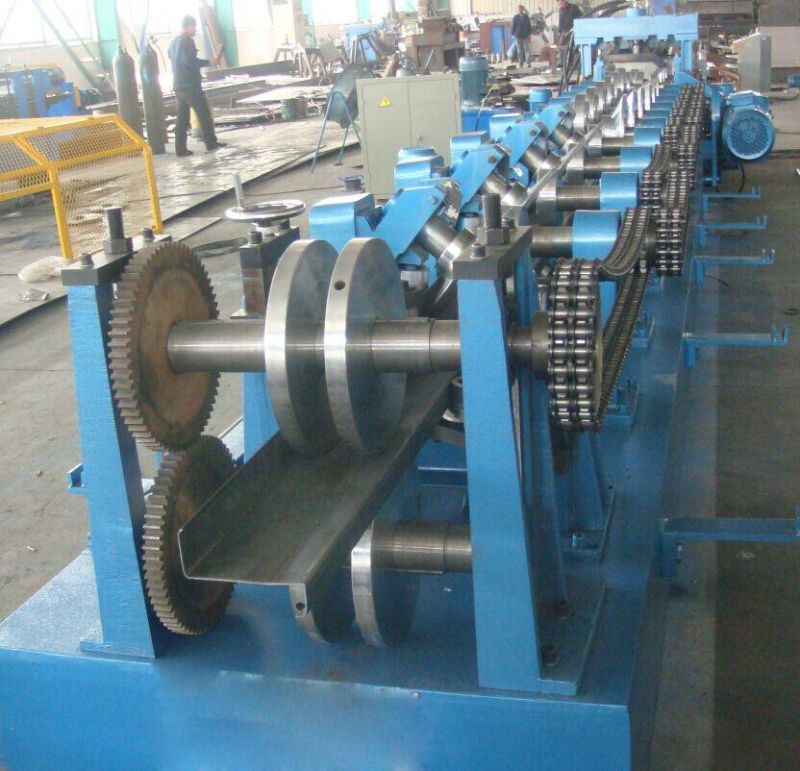

Fully Automatic 80-300mm Cold C Z Purlin Roll Forming Machine

Echnical parameters:

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	22 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min
Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm

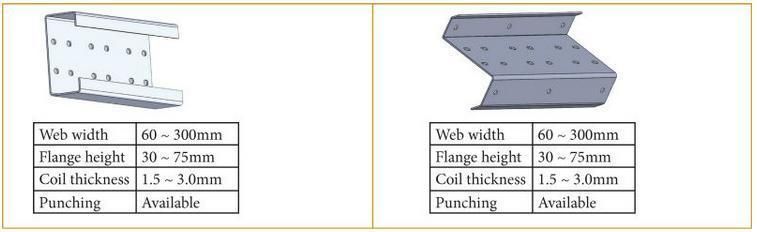

Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 10T
Custom	According to customer's requirements

ABOUT US:



FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
