• Model NO.：80--300
• Condition：New
• Control Type：Electric
• Automatic Grade：Automatic
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• Production Capacity：10

Basic Info.

Model NO. 80--300 Condition New Control Type Electric Automatic Grade Automatic Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV  Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou Production Capacity 10

Product Description

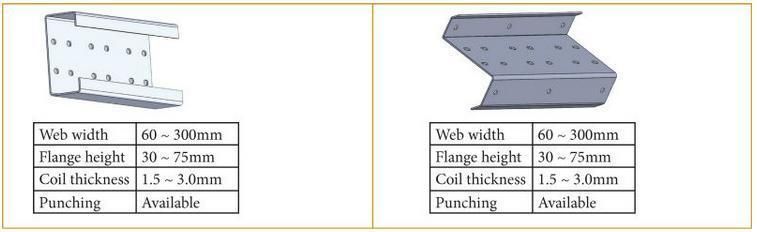

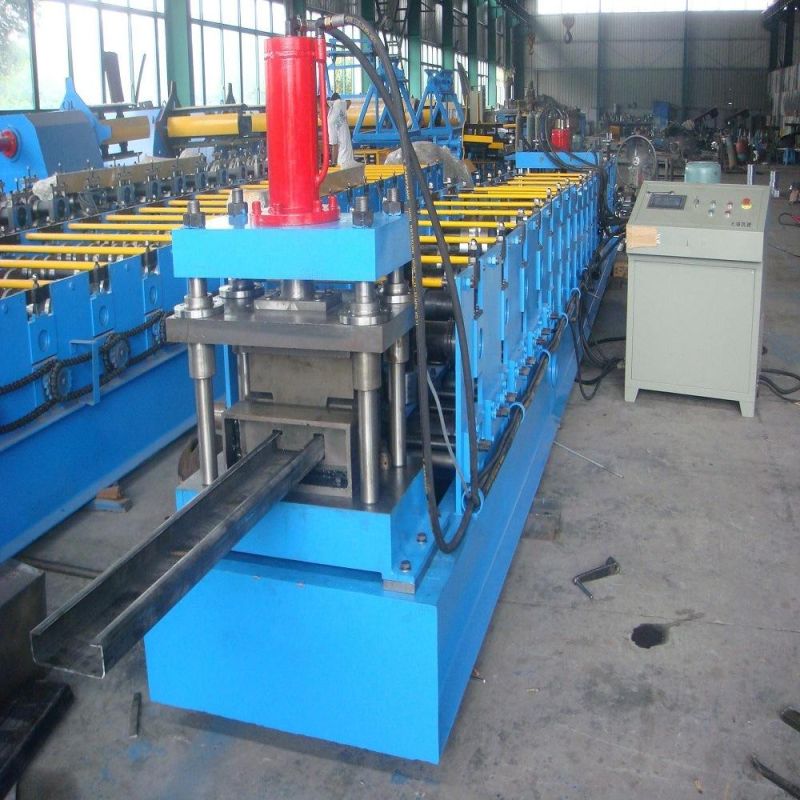

C Shape Roll Forming Machine
C Steel Frame Machine C Purline Machine

Maximum production speed: not less than 10 meters per minute (for non-perforated profiles, excluding cutting);
Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified in EN 10162 (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades, when observing the products under magnification ten times.
If you have your own special requirements,our machine can be also customized.

Echnical parameters :

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	22 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min

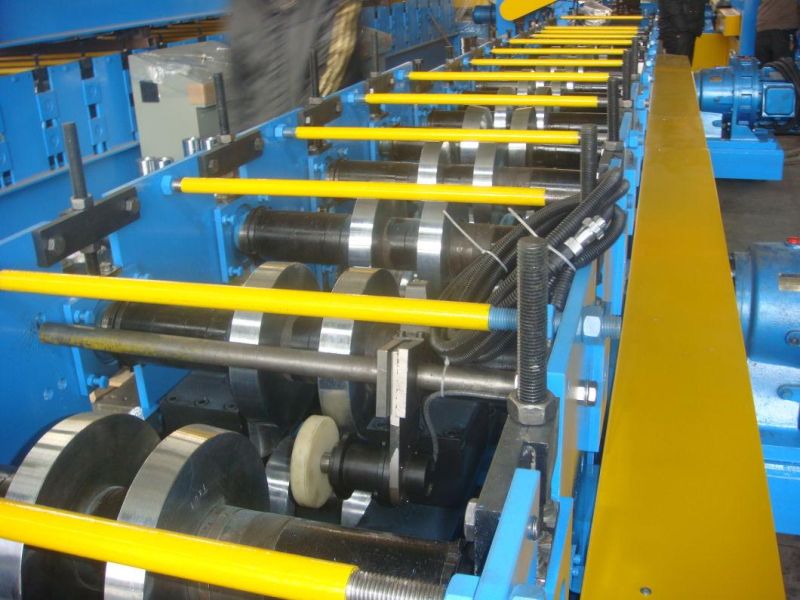

Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm
Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 10T
Custom	According to customer's requirements

ABOUT US:



FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
