• Model NO.：Various Model
• Certificate：ISO9001, ISO14000, CE
• Model Selected：We Offer
• Experiences：More Than 50 Years
• After Sale Service：for The Whole Using Life
• Testing：Supply
• Personal Training：on Site
• Warranty：1 Year
• Output：1000-8000tpd
• Transport Package：Export Standard Package
• Specification：ISO9001, ISO14000, CE
• Trademark：ZK
• Origin：Zhengzhou, China
• HS Code：8417
• Production Capacity：50 Set,Sets Per Year

Basic Info.

Model NO. Various Model Certificate ISO9001, ISO14000, CE Model Selected We Offer Experiences More Than 50 Years After Sale Service for The Whole Using Life Testing Supply Personal Training on Site Warranty 1 Year Output 1000-8000tpd Transport Package Export Standard Package Specification ISO9001, ISO14000, CE Trademark ZK Origin Zhengzhou, China HS Code 8417 Production Capacity 50 Set/Sets Per Year

Product Description

Cement Production Line advantages as followings:
1). Low energy consumptionan and high efficiency
2). Little pollution
3). Long life using
4). High output, low power consumption

Zk corporation have a large capacity in cement production line, which capacity from 300tpd to 1500tpd, and 1500tpd cement production line can produce 1500tpd clinker, the national large-size enterprise and national market leader enterprise of Chinese building material industry, is an export base of cement equipments. We henan zhengzhou mining machinery Co., Ltd, can offer 150tpd-8000tpd clinker cement production line. And all of our products have passed by ISO9001: 14000. Clinker cement production line mainly has lifting equipment, drying equipment, grinding equipment, transmission equipment, dust removal equipment, and packaging equipment, etc.




According to different plant design production planning, a variety of equipment also need to customize. Our company has a long-term production equipment design, manufacturing and installation experience. We have extensive experience for producing 1600 tons / day cement production line project. We can provide the appropriate technical support to all the clients, including select equipment model.

We have already produced some production line in foreign countries such as Malaysia etc.Cement plant line mainly has lifting equipment, drying equipment, milling equipment, transmission equipment, dust catcher equipment and package equipment, etc, according to different plant production planning, a variety of equipment also need to customize.

 Our company has a long-term production equipment design, manufacture and installation experience, We have extensive experience for producing 1200 Tons/ day cement production line project, We can provide the appropriate technical support to all the clients.

Production Process Introduction

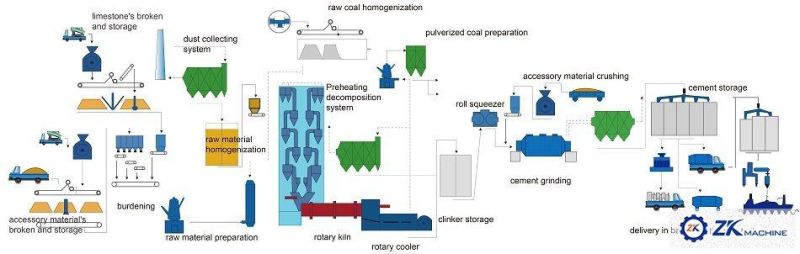

Mined limestone is transported by conveyors to the crusher for crushing. Crushed limestone is ground by ball mill or vertical mill into powder, and then transported by conveyor to the raw material silo for storage and further mixing. After homogenization, raw material goes into the preheating system for decomposition. The decomposition rate is about 95%. After calcined in the rotary kiln, raw material becomes clinker. Clinker, gypsum, and other mixed materials are ground in ball mill into cement of qualified fineness. Powder separator is used to adjust fineness of cement to achieve energy-saving production. Packaging machine and automatic loading machine are used to pack and deliver bags of cement.




Main Equipments for Cement Production Line
Rotary kiln, vertical preheater, cement ball mill, raw mill, air swept coal mill, rotary cooler, jaw crusher, DTIIfixed belt conveyor, bag filter, bucket elevator, screw conveyor, ZSW series vibrating feeder, coal burner and so on.

Model	Speed(r/min)	Slope(%)	Capacity(t/d)	Power(kw)	Weight(t)
Φ1.4×33	0.39 ~ 3.96	3	25	15	47.5
Φ1.6×36	0.26 ~ 2.63	4	40	22	52
Φ1.8×45	0.16 ~ 1.62	4	70	30	78.2
Φ1.9×39	0.29 ~ 2.93	4	75	30	77.59
Φ2.0×40	0.23 ~ 2.26	3	100	37	119.1
Φ2.2×45	0.21 ~ 2.44	3.5	150	45	128.3
Φ2.5×40	0.44 ~ 2.44	3.5	250	55	149.61
Φ2.5×54	0.48 ~ 1.45	3.5	300	55	196.29
Φ2.7×42	0.10 ~ 1.52	3.5	400	55	198.5
Φ2.8×44	0.437 ~ 2.18	3.5	600	55	201.58
Φ3.0×48	0.6 ~ 3.48	3.5	800	100	237
Φ3.2×50	0.674 ~ 3.37	3.5	1000	160	252.4
Φ3.5×52.5	0.6 ~ 3.6	3.5	1500	180	366.5
Φ4×60	0.396 ~ 3.96	3.5	2500	315	523
Φ4.3×64	0.4 ~ 3.96	3.5	3200	420	606.69
Φ4.8×72	0.39 ~ 3.96	3.5	5000	630	853.3
Φ5.2×61	0.38 ~ 3.79	3.5	5500	800	859
Φ5×80	ma×3.5	4	6000	800	1201
Φ5.6×87	ma×4.23	4	8000	800	1227.5

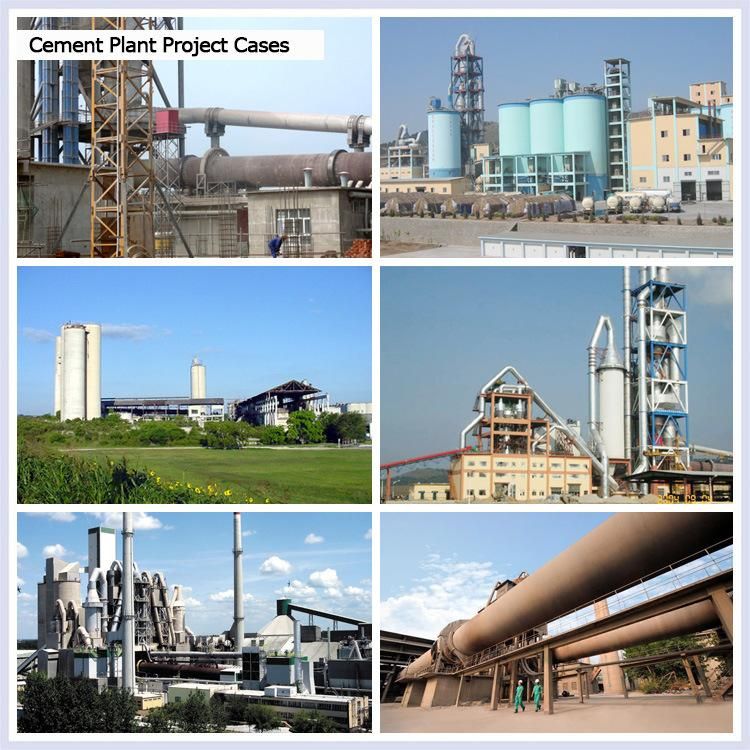

Project Cases:
