Corrugated Metal Sheet Roof Roll Forming Machine for 0.18mm Roofing Sheet

Cangzhou Nexus Machinery Co., Ltd.
  • After-sales Service：Provide Overseas Service
  • Warranty：1 Year
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：NM214
  • Usage：Roof, Wall
  • Transmission Method：Electric
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：4kw+3kw
  • Machine Weight：About 5 Tons
  • Warrenty：12 Months
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6000mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Corrugated Metal Sheet Roof Roll Forming Machine For 0.18mm Roofing SheetMain motor power4kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station14-22 groupsRaw material0.3-0.8mmCoil width 1000-1200mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 5500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2Corrugated Metal Sheet Roof Roll Forming Machine For 0.18mm Roofing Sheet
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Character of main structure:

1. This machine contains our experiences in 30 years and many times improvements by our engineers.

2. In our service, we support the equipments and profiles that customers really need and including our most sincere recommends.

3. Our roll forming machines are driven by chain in hydraulic system. Chain Drive System can save the power compare with other system. That also means that customers do not need to pay the extra power fee during production of steel panel.

 6. Advantage:

1. We use Automatic control software to manage productive information.

2. Thanks to the High integrated network, the whole automatic control system has an improvement in automaticity.

3. High performance in operation, maintenance, and debugging. Easy to load and unload.

7. Photos of High Tensile Thin Barrel Tile Corrugated Sheet Panel Roll Forming Machine for Reference:

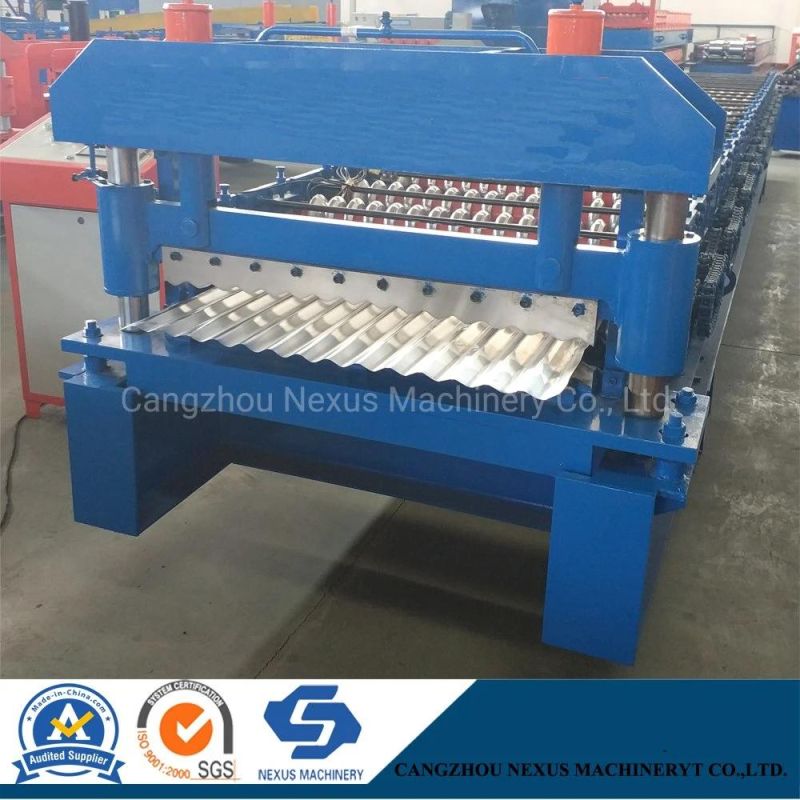

Corrugated Metal Sheet Roof Roll Forming Machine for 0.18mm Roofing Sheet

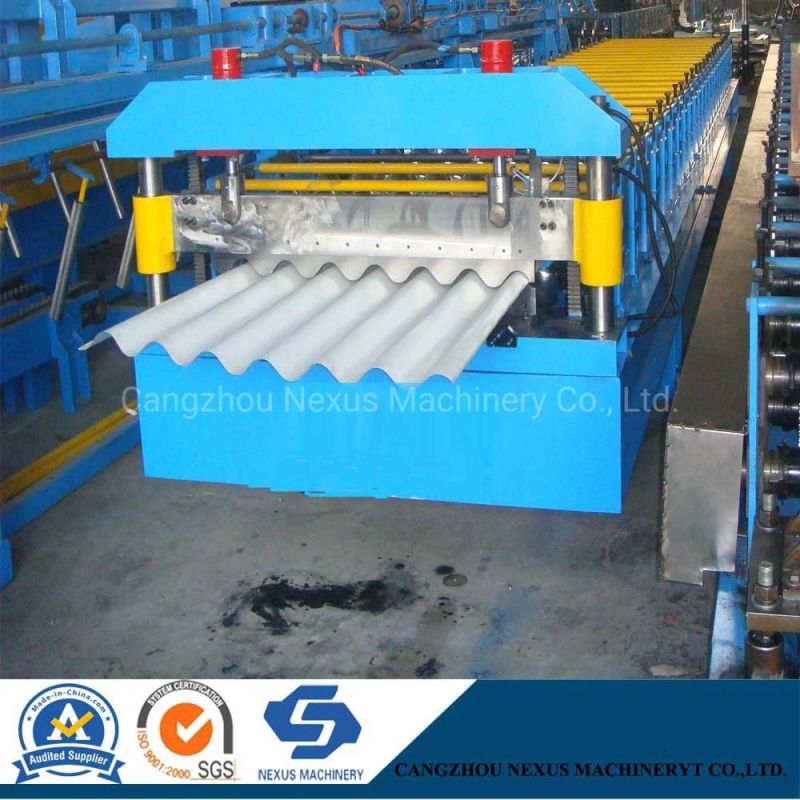

Corrugated Metal Sheet Roof Roll Forming Machine for 0.18mm Roofing Sheet

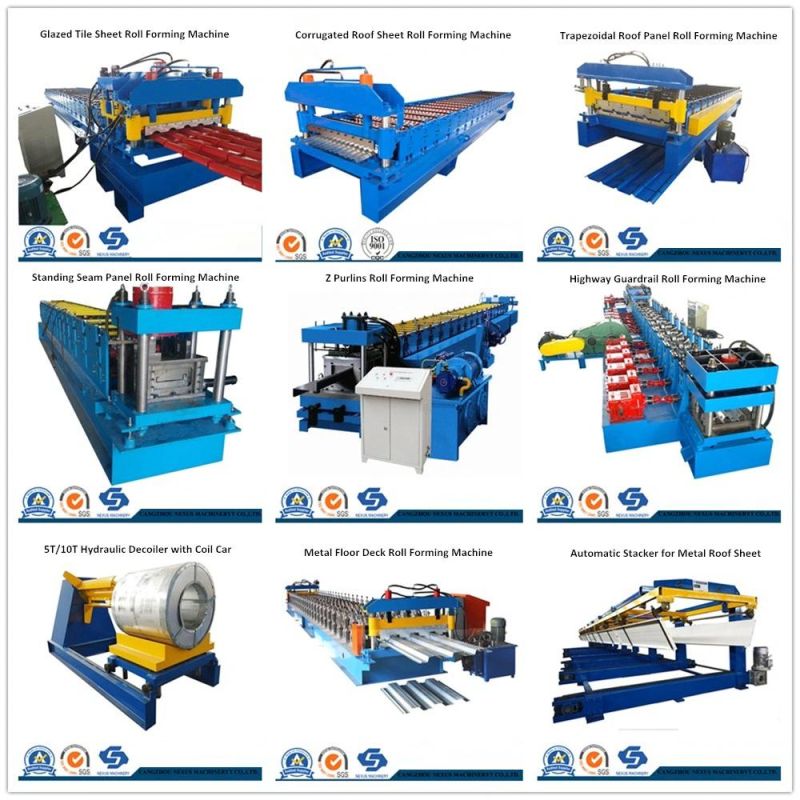

More Products for Choose:
Corrugated Metal Sheet Roof Roll Forming Machine for 0.18mm Roofing Sheet
