Three Waves Cold Rolled Highway Guardrail Roll Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Certification:CE, GS, ISO9001
  • Customized:Customized
  • Condition:New
  • Control Type:CNC
  • Automatic Grade:Automatic

Base Info

  • Model NO.:NM080
  • Motor Power:50kw
  • Material of Punching Mould:Cr12MOV
  • Hydraulic Power:7.5kw
  • Roll Forming Station:18 Groups
  • Raw Material:Black Steel & Galvanized Steel
  • Thickness of Raw Material:2.0-4.0mm
  • Weight of Machine:About 25ton
  • Electricity:PLC Detal, Made in Taiwan, 380V 50Hz, 3 Phases
  • Transport Package:Steel Wires Fixed and 40gp Container Load
  • Specification:9000mm*1800mm*1500mm(L*W*H)
  • Trademark:NEXUS MACHINERY
  • Origin:Cangzhou, China
  • HS Code:8455221000
  • Production Capacity:10 Sets Per Month

Description

Basic Info.

Model NO. NM080 Motor Power 50kw Material of Punching Mould Cr12MOV Hydraulic Power 7.5kw Roll Forming Station 18 Groups Raw Material Black Steel & Galvanized Steel Thickness of Raw Material 2.0-4.0mm Weight of Machine About 25ton Electricity PLC Detal, Made in Taiwan, 380V 50Hz, 3 Phases Transport Package Steel Wires Fixed and 40gp Container Load Specification 9000mm*1800mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 10 Sets Per Month

Product Description

Three Waves Cold Rolled highway guardrail Roll Forming Machine

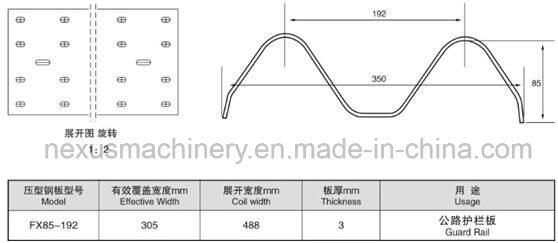

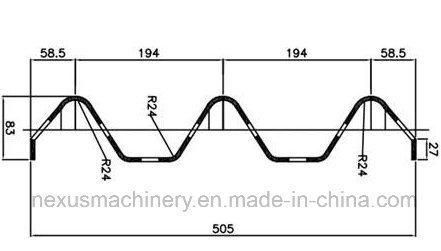

Profile drawings:

 The thickness of Material: 2.0-4.0 mm
Three Waves Cold Rolled Highway Guardrail Roll Forming Machine


Three Waves Cold Rolled Highway Guardrail Roll Forming Machine

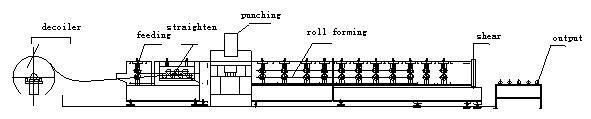

 Working flow:Uncoiler-Feeding-Leveling-- hydraulic punching-Roll forming-Hydraulic cutting-output table
Three Waves Cold Rolled Highway Guardrail Roll Forming Machine

Main Specification
Manual decoiler
  1. Capacity:5 ton
  2. Loading width: MAX 600mm
  3. Valid expanding range for coil inner diameter: 480-520mm
Main roll forming system
  1. Main motor power: 50kw
  2. Separate motor reducer: 750type
  3. Punching: Hydraulic pre-punching before forming
  4. Punching mould:Cr12mov
  5. Hydraulic power: 7.5KW
  6. Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
  7. Leveling rollers: 7rollers(three upper and four lower)
  8. Roll forming station: 18 groups
  9. Diameter of main shaft: 100mm
  10. Drive: independent gearbox with universal joint
  11. Raw material: Black steel & galvanized steel
  12. Thickness of Raw material: 2.0-4.0mm
  13. Width of Raw material: 482mm
  14. Working speed: 10m--15m/min(Exclude cutting time)
  15. Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
  16. Cutting blade: Cr12mov
  17. Cutting tolerance: +/- 1.5mm
  18. Hydraulic pressure: 30Mpa
  19. Weight of machine: about 25ton
  20. Size of machine: About 9000×2150×1500mm L x W x H
  21. Color of machine: yellow and blue
  22. Coder: Omron
  23. Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
  24. Computer operating panel: touching screen
Three Waves Cold Rolled Highway Guardrail Roll Forming Machine

Three Waves Cold Rolled Highway Guardrail Roll Forming Machine

Three Waves Cold Rolled Highway Guardrail Roll Forming Machine

FAQ:

1. How long the machine could be made?- Normally speaking, guardrail machine could be made within 60 working days. If you need machines in a hurry, we can make it for you within 45 working days.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
