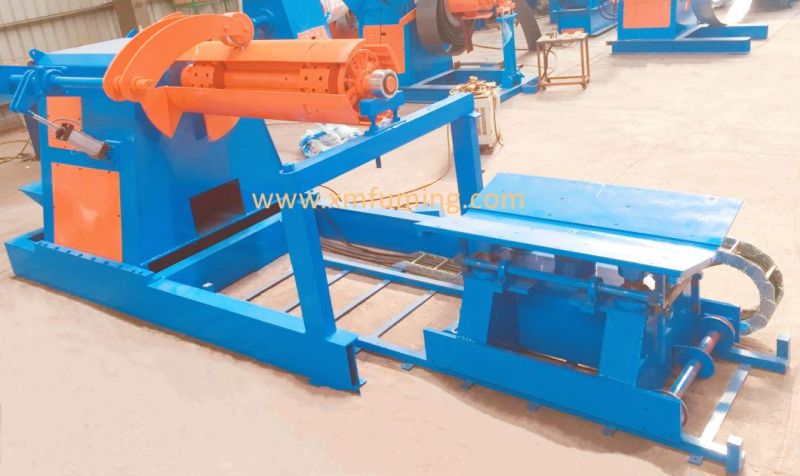

10t*1500mm Hydraulic Decoiler with Coil Car with Top Arm and Support Arm

XIAMEN FUMING ROLL FORMING MACHINERY CO., LTD.
  • Warranty：12 Months
  • Tile Type：Colored Steel
  • Certification：CE
  • Condition：New
  • Customized：Customized
  • Usage：Decoiler

Base Info

  • Model NO.：10T*1500mm
  • Transmission Method：Electric
  • Color：Customized
  • Load Capacity：Max.10tons
  • Coil Width：Max.1500mm
  • Transport Package：Container
  • Specification：10T*1500mm
  • Trademark：FUMING
  • Origin：Xiamen
  • HS Code：8428909090
  • Production Capacity：28pieces,Year

Description

10T*1500mm Hydraulic Decoiler With Coil Car  With Top Arm And  Support ArmCoil inner hole expandingHydraulic system, 3KW pump motorSpeed regulatingFrequency inverter, 5.5KW motorExpanding typeTaper wedge expanding systemLoad capacityMax.10TonsCoil widthMax.1500mmCoil Inner-diameter510±30mmCoil outer-diameterMax.1600mmStop/start rotationAutomatic stopping device with limited switch to assistWith coil car, Up/down stroke of coil car: Max. 300mm,motor:3kwBackward and forward stroke of coil car: Max. 2000mm,motor:1.5kwWith top arm, to avoid coil become loosenWith support arm at the end of the shaft  10t*1500mm Hydraulic Decoiler with Coil Car with Top Arm and Support Arm
