• Model NO.：HNGKBXG
• Name：Stainless Steel Pipe Making Machine
• Thickness：2.0 - 20 mm
• Pipe Diameter：89 - 711 mm
• Speed：0.1 - 1.8 M,Min
• Transport Package：Container
• Specification：89 - 711 mm
• Trademark：HNGK
• Origin：China
• HS Code：8515319900
• Production Capacity：5 Sets

Basic Info.

Model NO. HNGKBXG Name Stainless Steel Pipe Making Machine Thickness 2.0 - 20 mm Pipe Diameter 89 - 711 mm Speed 0.1 - 1.8 M/Min Transport Package Container Specification 89 - 711 mm Trademark HNGK Origin China HS Code 8515319900 Production Capacity 5 Sets

Product Description

Stainless Steel Welded Pipe Mill
The plate in certain width after slitting line and stripping is unfolded and leveled. Then, they are sent into forming machine. Used the roller, the plate is bent into pipe state. The pipe is welded by plasma welder and Tig welder.
Large stainless steel welded pipe mill adopts automatic flexible forming technology.
In recent year, our company developed the precise control forming. The advantage of this kind forming is to guarantee the excellent forming quality in rough forming section through the precise control. Then it is no need to have the repair management in precise forming section. Therefore, the precise forming in this forming method does not need to change the roller. All the forming section does not need to change the roller, which solves the problem of the change in precise forming section and non-change in rough forming section. Therefore, it saves the roller investment and decreases the time of roller changing. Besides, during the diameter changing, all are controlled by industrial computer. The roller will automatically reach the position by inputting the pipe diameter, pipe wall thickness, material and other parameters. It largely improves the mill efficiency and pipe qualified rate. This forming method is suitable for medium and large mill from 219mm to 711mm, which saves the investment and improves the efficiency.
Large stainless steel welded pipe mill is mainly used for manufacturing the industrial pipe in chemical, the bottom sea, oil, gas delivering and other field. The pipe requirement on the material and quality is very strict. The machine has internal welding seam leveling treatment, solution annealing, X-ray detector, UT detector, high pressure hydrotester, and other equipment.

Model:

No.	Model	OD (mm)	Speed (m/min)	Thickness (mm)	Capacity (kw)	Area (M2)
1	HNBXG-219	Φ89 - Φ219	0.1 - 1.8	2.0 - 10	100	24×200
2	HNBXG-273	Φ89 - Φ273	0.1 - 1.8	2.0 - 10	120	24×200
3	HNBXG-325	Φ140 - Φ325	0.1 - 1.5	2.0 - 12	250	24×200
4	HNBXG-355	Φ140 - Φ355	0.1 - 1.5	2.0 - 12	250	24×200
5	HNBXG-406	Φ165 - Φ406	0.1 - 1.5	2.0 - 12	250	24×200
6	HNBXG-426	Φ165 - Φ426	0.1 - 1.5	2.0 - 14	300	24×300
7	HNBXG-508	Φ219 - Φ508	0.1 - 1.5	3.0 - 14	350	30×300
8	HNBXG-610	Φ273 - Φ610	0.1 - 1.5	3.0 - 14	350	30×300
9	HNBXG-630	Φ273 - Φ630	0.1 - 1.5	3.0 - 14	400	30×300
10	HNBXG-660	Φ273 - Φ660	0.1 - 1.5	3.0 - 14	400	30×300
11	HNBXG-711	Φ325 - Φ711	0.1 - 1.5	3.0 - 14	400	30×400

Process:

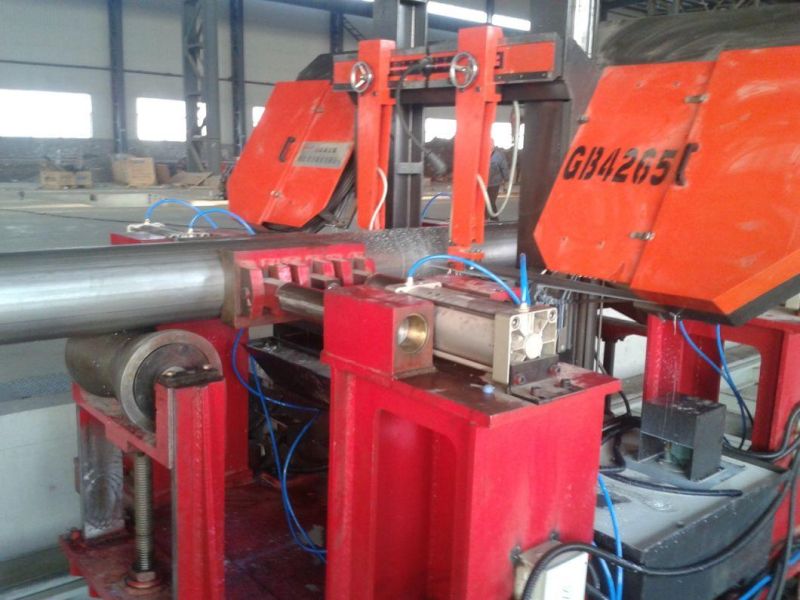

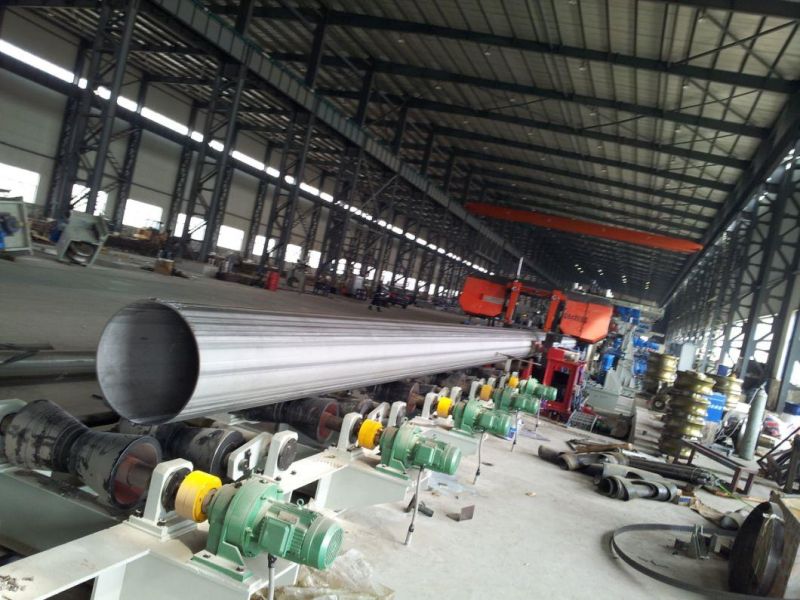

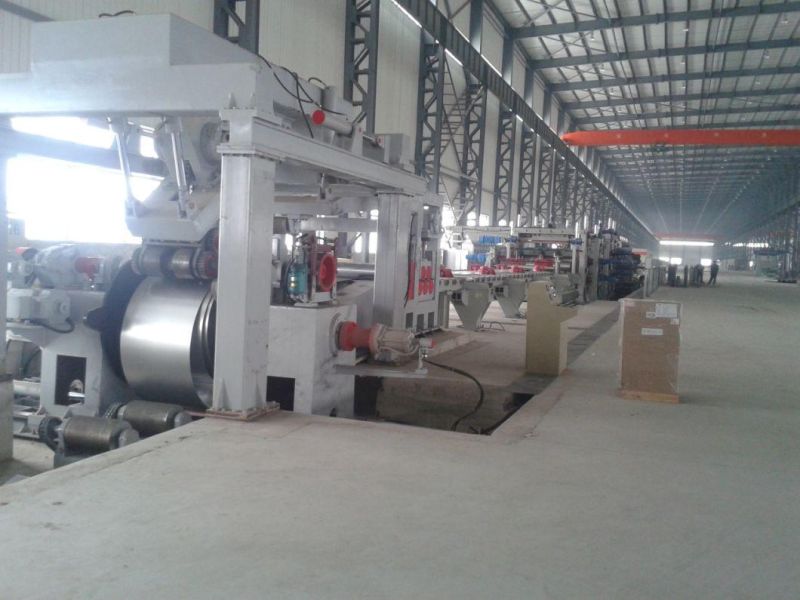

Coil Loading - Uncoiler - Leveler - Steel Cutting and Welding - Small Accumulator - Forming - PPT Welding - Internal Welding Seam Leveling - Online Annealing - Water Cooling - Sizing - Cut to Length - X-Ray Detector - Pipe End Facing and Beveling - Hydrotester - Solution Treatment - Offline UT Welding Seam and Pipe Detector - Acid Pickling Passivating - Weighting, Measuring, Marking - Pipe Collectio

Intergrated services:

  1. Offer reasonable investment plan, reconmmend the appropriate models based on actual market situation.

  2. Offer layout of production line based on customer plant's drawings.

  3. Offer the base drawings required for installation.

  4. Offer machine's installation and commissioning by sending technicians, until machines operates normally.

  5. Offer professional training, until the buyer's operator command machine's operation.

  6. Offer and coordinate auxiliary components, accessories, and spare parts.

  7. The warranty is 1 year long, excluded situation of human-damage. If you have any question about machine operating, just contact us via mails or phone call, we will solve the problem for you immediately.
