G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

Cangzhou Nexus Machinery Co., Ltd.
  • After-sales Service：Provide Overseas Service
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：Electric

Base Info

  • Model NO.：NM374
  • Automatic Grade：Automatic
  • Name：G250MPa Portable Gutter Roll Forming Machine
  • Total Power：7.5kw+3kw
  • Coil Material Thickness：0.4--0.8mm
  • Processing Material：Galvanized Steel
  • Roller Material：Cr12MOV
  • Forming Speed：10-15m,Min
  • PLC Brand：Panasonic
  • Roll Forming Station：12 Stations
  • Operation Type：Touching Screen
  • Machine Weight：3 Tons
  • Machine Color：Yellow and Blue
  • Package：Need One Full Set of 20gp Container to Load
  • Transport Package：Plastic Film
  • Specification：4000mm*800mm*700mm(L*W*H)
  • Trademark：Nexus Machinery
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：10

Description

G250MPA Portable Gutter Roll Forming Machine For Customized Gutter 0.3-0.7MM ThicknessRolling speed15-20m/min(not include cutting time)Rolling thickness0.3-0.6mmRaw materialGalvanized steel sheetdimension5500×1600×1500(mm)Effective width Roller stations15 stationsOne stage for embossingRoller material45#forge steel, coated with chromeShaft diameterΦ70mm,material is 45# forge steelTransmissionBy chain1 inchMaterial of chain45# forged steel with frequency quenching, 12AMaterial of cuttingCr12Mov with quench HRC58-62°Tolerance6m+-1.5mmFrameH type steel

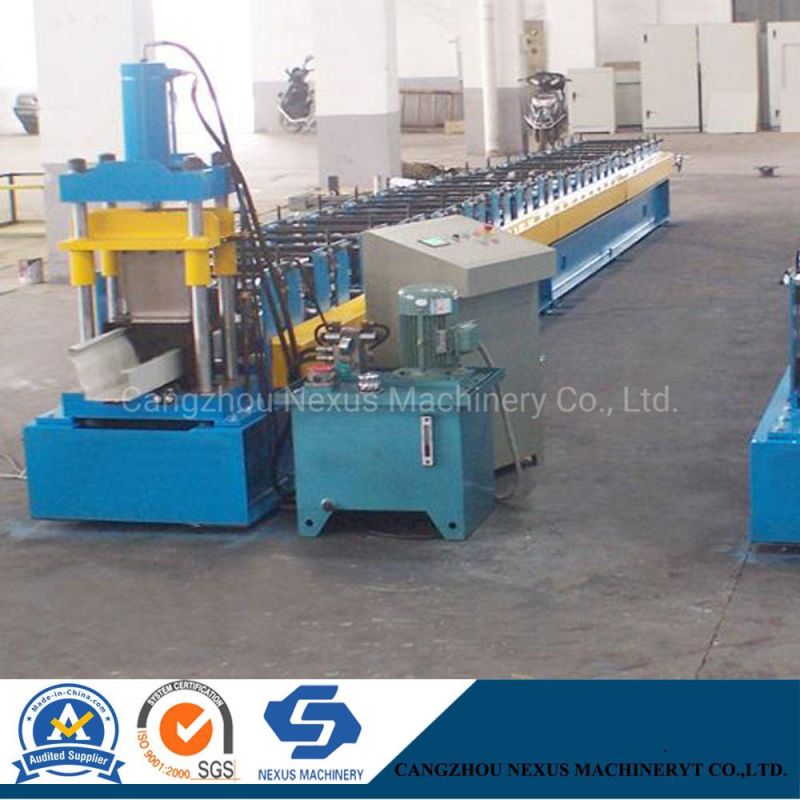

G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

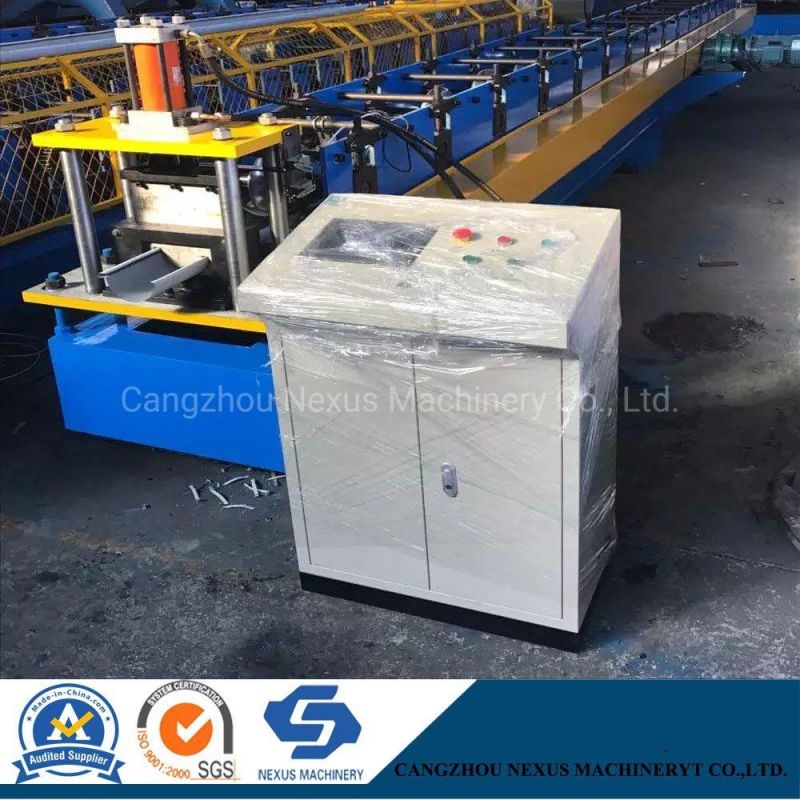

G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

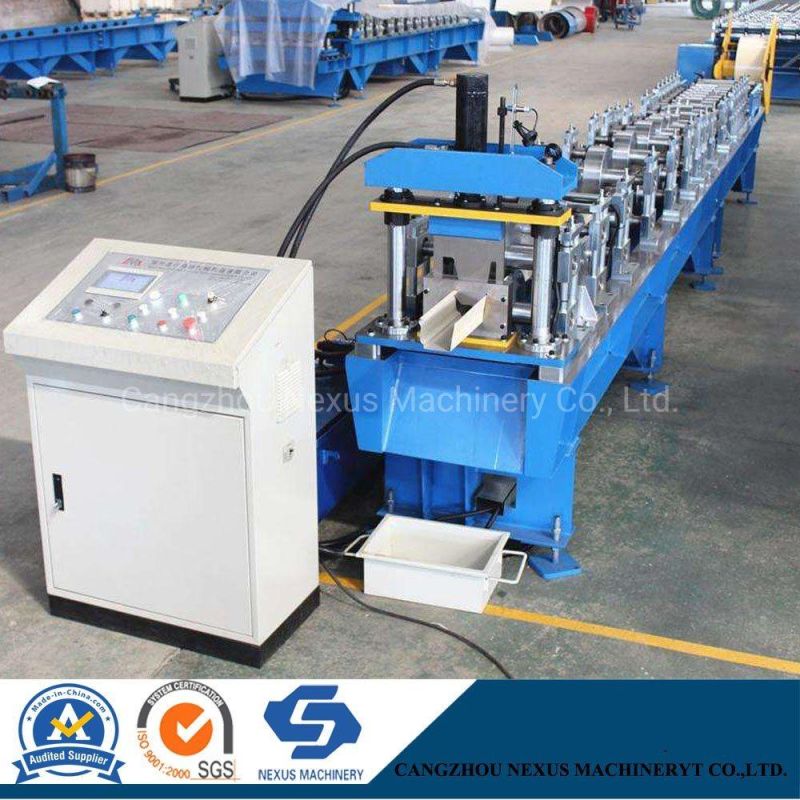

G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

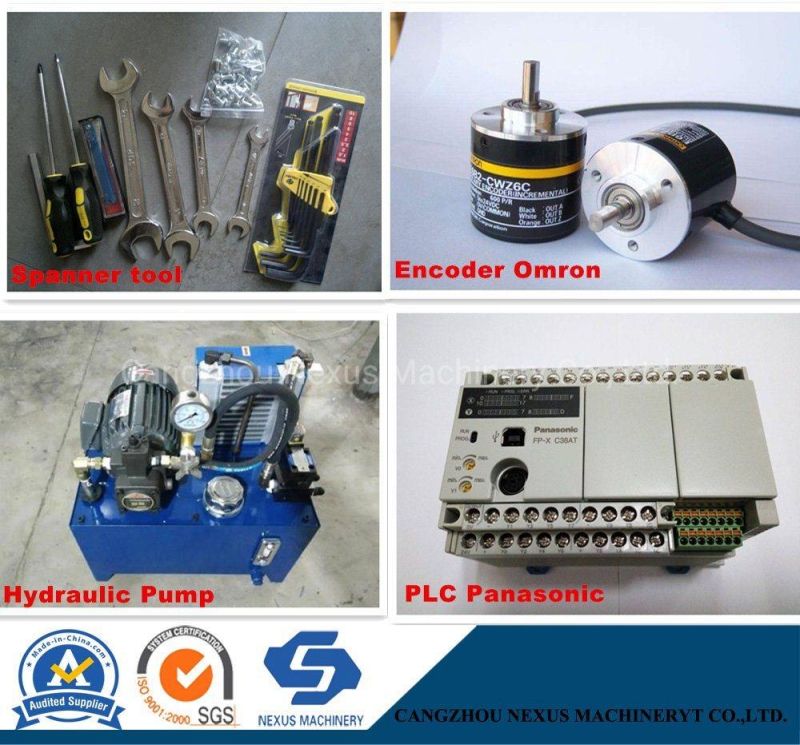

G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm ThicknessElectric Element of Main Roll Forming Machine
G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.


Exhibition Photos:

G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

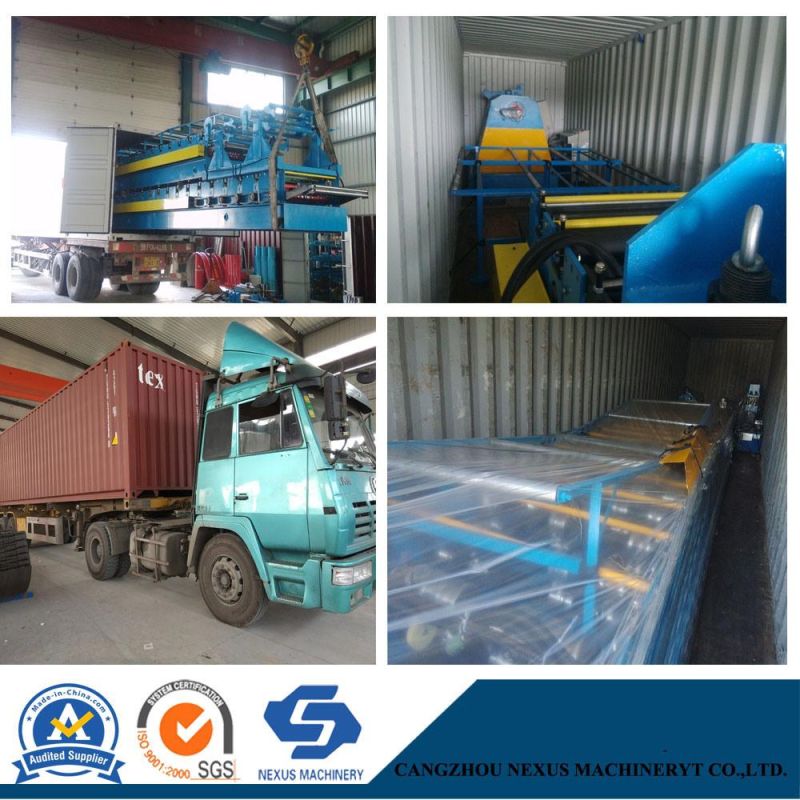

Machine Loading Photos:
G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness

Hot-Sale Products you Might Be Interesting:

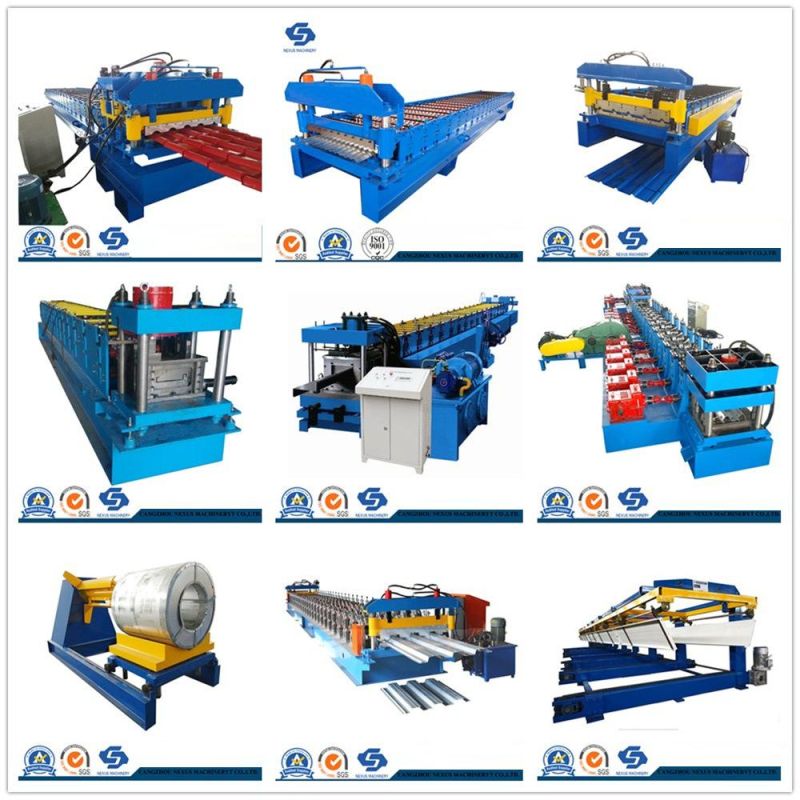

G250MPa Portable Gutter Roll Forming Machine for Customized Gutter 0.3-0.7mm Thickness
Our Service:

Pre-Sales Service
Our company has more than 20 years of production experience, experienced technical department will be based on your specific drawings and requirements to design machines, and give you the appropriate technical advice
* Inquiry and consulting support
* Sample testing support.
* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
