• Model NO.：CSJVA-55
• Rotary Speed：2800r,Min
• Air Consumption：15L,Min
• Cutting Length：300-2100mm
• Cutting Width：120mm
• Cutting Height：110mm
• Machine Dimension：7500*1720*1390mm
• Weight：300kg
• Transport Package：Wooden
• Specification：CSJVA-55
• Trademark：Truetec
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Model NO. CSJVA-55 Rotary Speed 2800r/Min Air Consumption 15L/Min Cutting Length 300-2100mm Cutting Width 120mm Cutting Height 110mm Machine Dimension 7500*1720*1390mm Weight 300kg Transport Package Wooden Specification CSJVA-55 Trademark Truetec Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

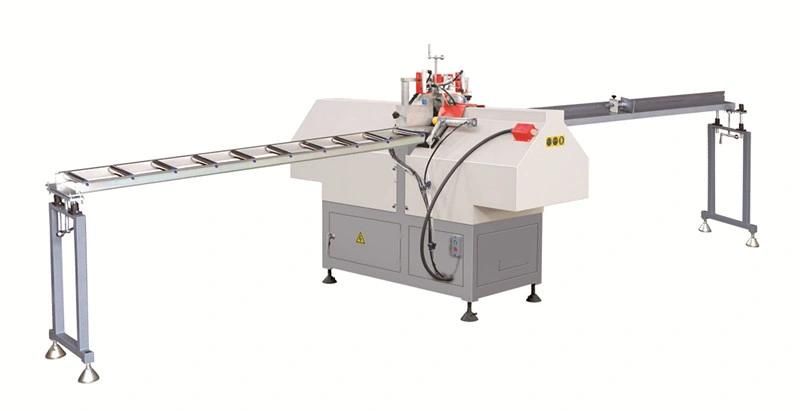

        Jinan Truepro mullion cutting saw for PVC window and door

Machine feature:
1.Used for sawing v shaped head of plastic door and window tin plate when usingwelding technology
2.Two 90 cutting saw blade in space decorate, a clamping two vshaped head cuttingat the same time, high accuracy, high production efficiency
3.Horizontal layout, smooth movement, high precision of saw size
4.Special clamping -lifting device, no jumping material
5.Cutting waste, only in the saw blade, profile utilization rate is high
Parameter:

Model Number	CSJVA-55
Air Pressure	0.5~0.8(MPa)
Air Consumption	15(L/min)
Input Voltage	380V 50HZ or as customer specification
Input Power	3KW
Spindle rotary speed	2800r/min
Cutting Height	110mm
Cutting Width	120mm
Cutting Length	300-2100mm
Overall Dimension	7500*1720*1390mm
Weight	300kg

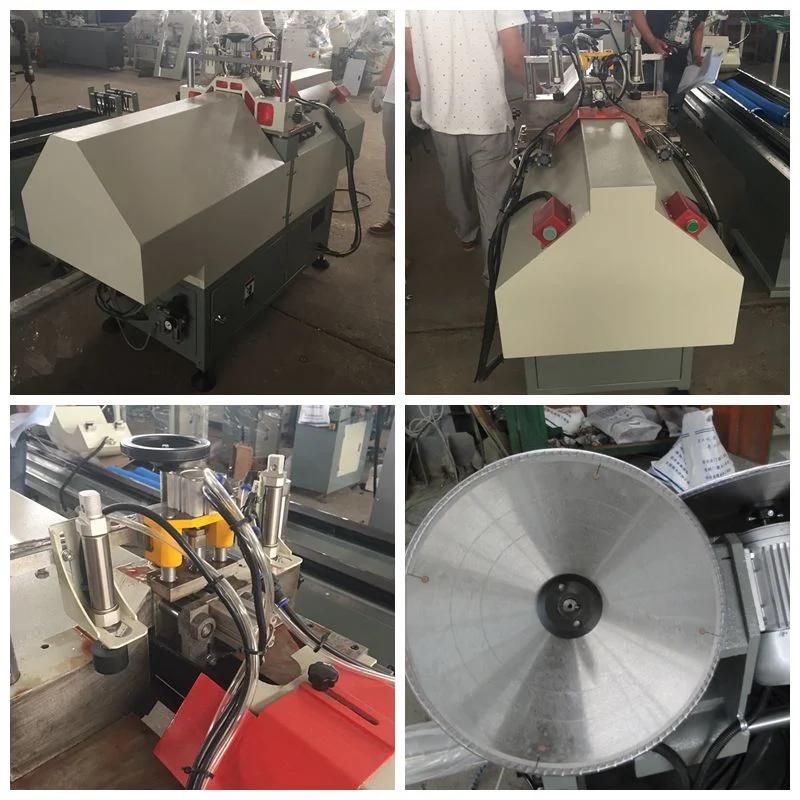

Machine details:






1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

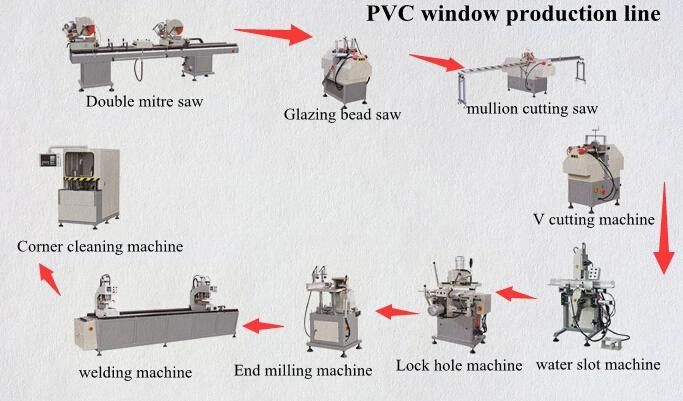

4. If I make PVC window and door, how many basic machines do i need?
