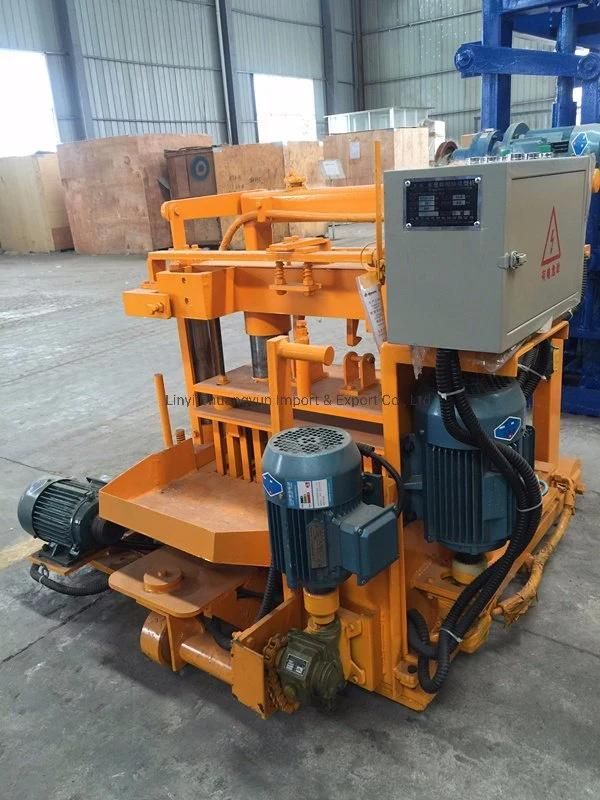

Mobile 40-3A Egg Laying Brick Machine Portable Cement Block Making Machine
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Manual
- Type：Vibration Molding
- Block Products：Concrete Hollow Blocks, Solid Blocks, Pavers, etc.
- Raw Material：Cement,Fly Ash,Dust,Sand etc
Base Info
- Model NO.：40-3A
- Machine Material：Q235r Steel
- Color：as Customer Request
- Vibration Type：Mould Vibration
- Electricity Power：7.5kw
- Vibration Frequency：Max 4000r,Min
- Shaping Cycle：40-45s
- Condition：New
- Guarantee：2 Years
- Pallets：No Need
- Transport Package：Plywood Box with Iron Angle
- Specification：235steel for machine frame
- Origin：China
- HS Code：8474802000
- Production Capacity：50sets , Month
Description
Dimension of host machine
1800X1400X1100mm
Total machine power
6.7KW
Moulding PERIOD
30-40S
Vibration force
35KN
Voltage
380/415/440V
Mixer model
JQ350
Production capacity
Size(LxWxH)
Pcs/Mould
Pcs/ Hr
Pcs/ 8 Hr
400X200X200
4
360-480
2880-3840
400X100X200
630-840
5040-6720
400X150X200
5
450-600
3600-4800
400X250X200
3
270-360
2160-2880

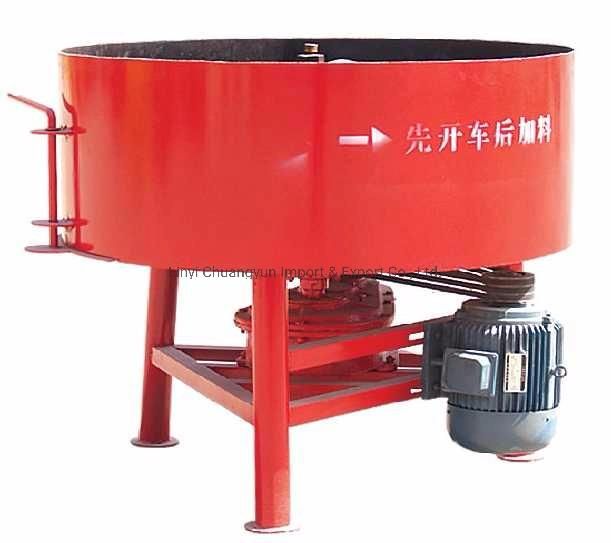

JQ350 Mixer
No
Item
Specification
01
Model
JD350
02
Charge volume(L)
0.35m3
03
Discharge volume(L)
0.56 m3
04
Capacity(m3/h)
≥4m3/h
05
Max diameter(pebbles/break stone)mm
40mm
06
Power
7.5KW
07
Machine diameter
1200mm
08
weight
0.42Ton
Machine and blocks
Our Service
we have go big after sale service team , they are all the experience technician , over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.
Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:
(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other
